CC1101RTK

Manufacturer	Texas Instruments Incorporated
Description	RF Transceiver ASK/FSK/GFSK/OOK/MSK 2.5V/3.3V 20-Pin VQFN EP Tube RF Transceiver Lo-Pwr Sub-1GHz RF Trans IC RF TXRX LP SUB-IGHZ 20-QFN TRANSCEIVER, SUB 1GHZ, LO POWER, 20QFN
Category	RF and Wireless SolutionsRF TransceiversRF Transceiver ICs

对参数有疑问？问 AI 助手

Business

Product Category	RF Transceiver	Standard Package	Rail / Tube, Trays
Factory Pack Quantity	92

Compliance

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85423190

Electrical

Data Rate	:500Kbps	Frequency	315MHz, 433MHz, 868MHz, 915MHz
Interface	4-Wire SPI	Modulation	:ASK, FSK, GFSK, MSK, OOK
Sensitivity	- 116 dBm	Filter Order	:-64dBm
Output Power	10 dBm	Data Interface	PCB, Surface Mount
Power - Output	-30dBm ~ 10dBm	Data Rate (Max)	600 Kbps
Frequency - Max	:928MHz	Frequency - Min	:300MHz
Frequency Range	300 MHz to 928 MHz	Current - Supply	14.7 mA
Voltage - Supply	1.8 V to 3.6 V	Current - Receiving	17.1mA
Current - Transmitting	32.3mA @ 10dBm	Current - Supply (Main IC)	22 mA

Mechanical

Weight	0.0002	Packaging	Tray
Termination	:SMD	Mounting Style	SMD/SMT
Number of Pins	:20	Package / Case	VQFN-20 EP
Material Finish	:MSL 3 - 168 hours	Antenna Connector	PCB, Surface Mount

Product Info

Type	ISM, SRD	Series	CC1101
Base Unit	:1101	Applications	AMR, ISM, SRD
Modulation or Protocol	ASK, FSK, OOK, GFSK, MSK

Environmental

Operating Temperature

+ 85 C

Documents & Media

PDF Document

Assembly, Package, Part Number 26/Nov/2012

PDF Document

CC1101

Similar Parts

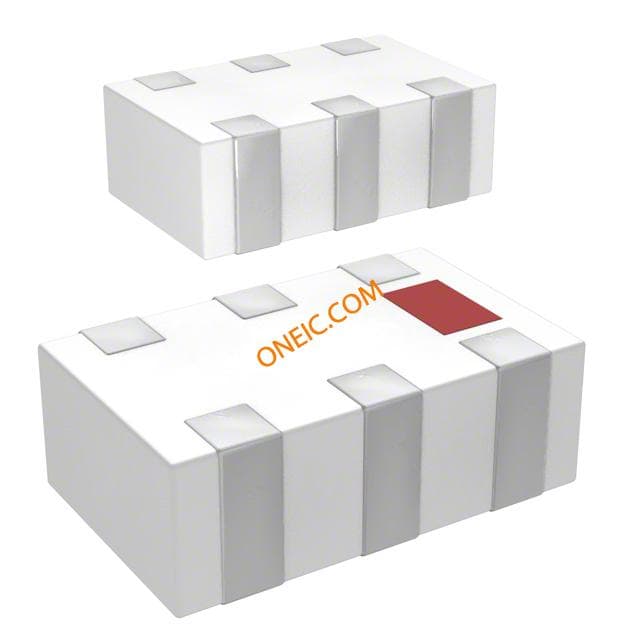

0433BM15A0001E
