BQ25010RHLR
| Manufacturer | |
| Description | Battery Charger Li-Ion/Li-Pol Packs 150mA 4.2V 20-Pin VQFN EP T/R Battery Charger Li-Ion/Li-Pol Packs 500mA 4.2V 20-Pin VQFN EP T/R IC DC/DC CONV/CHRGR ADJ 20-QFN Battery Management Single-Chip Charger & DC/DC Converter IC 500mA Li-Ion Charger w/Integrated 150mA Synchronous Buck Converter, Output Adjustable Texas Instruments 锂离子、锂聚合物 电池充电器, 500mA最大输出, 20针 VQFN封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-17639-2 | Product Category | Battery Management |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage Rating | 4.2 V | Number of Cells | Single Cell |
| Current - Output | 150(Max) mA | Voltage - Supply | 4.5 to 6.5 V |
| Regulator Topology | Linear | Current Rating (Max) | 500mA |
| Minimum Load Required | 50mA | Voltage - Output (Max) | 4.2 V |
| Voltage - Supply (Min) | 4.5 V | Current - Supply (Main IC) | 0.5 |
Mechanical
| Width | 3.65mm | Height | 0.95mm |
| Length | 4.65mm | Weight | 0.001668 oz |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 20 | Package / Case | 20VQFN EP |
| Package Cooled | VQFN EP | Length - Overall | 4.65(Max) |
| Package Quantity | VQFN EP | Size / Dimension | 4.65 x 3.65 x 0.95mm |
| Number of Positions | 20 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 20-VQFN (3.5x4.5) | ||
Product Info
| Type | Battery Charger | Series | BQ25010 |
| Features | Integrated Buck Converter | Function | Charge Management |
| Software | SLUS615B | Manufacturer | Texas Instruments |

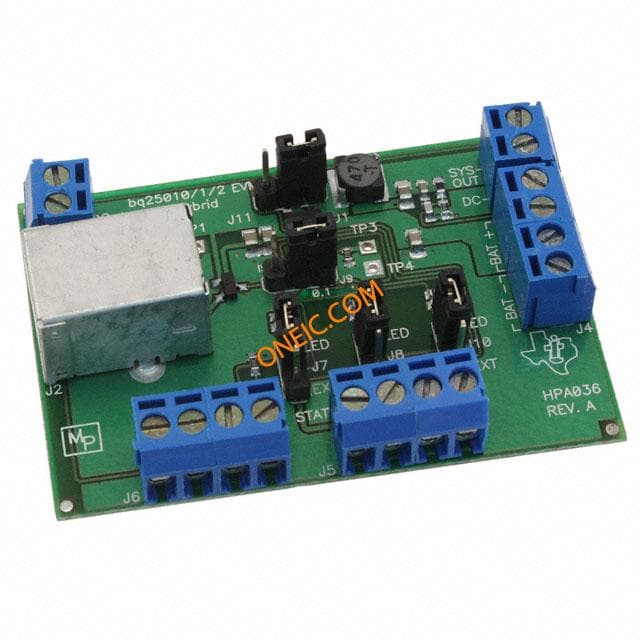

| Development Kit | BQ25010EVM | Battery Chemistry | Li-Ion|Li-Pol Packs |
| Utilized IC / Part | View | Printed Circuit Board | 20 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 125 °C |
