BQ20Z65EVM
| Manufacturer | |
| Description | Evaluation Board For SBS 1.1-Compliant Gas Gauge And Protection Enabled With Impedance Track Power Management IC Development Tools Batt Mgmt Solution Eval Mod EVAL MODULE FOR BQ20Z65 BQ20Z65 FUEL GAUGE, EVAL MODULE EVAL BOARD, BQ20Z65 BATTERY FUEL GAUGE |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Evaluation Modules | Product Category | Power Management IC Development Tools |
| Standard Package | Boxed | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | RoHS Not Applicable | Tariff No | 84733020 |
Electrical
| Interface | USB | Voltage Rating | 6 V to 25 V |
| Number of Elements | :BQ20Z65 | ||
Mechanical
| Weight | 0.25 | Size / Dimension | 100 mm x 30 mm |
Product Info
| Type | Development Kit | Contents | Board |
| Embedded | No | Features | :- |
| Function | The EVM includes one bq20z65 circuit module, a current sense resistor, two thermistors, and a link to Windows based PC software | Kit Type | :Power Management - Battery |
| Technology | Battery Management | Kit Contents | :Eval Module BQ20Z65, Documentation |
| Main Purpose | Power Management, Battery Gauge | Tool Type Feature | BQ20Z65 |
| Primary Attributes | 1.1-compliant advanced gas gauge | RF Family/Standard | BQ20Z65 |
| Utilized IC / Part | BQ20Z65, BQ29330, BQ29412 | Chipset Manufacturer | :Texas Instruments |
| Secondary Attributes | Overcharge, Over Discharge, Short Circuit, and Overcurrent Protection | Application Specifics | :Fuel Gauge |
Documents & Media
PDF Document
Online Document
PDF Document
PDF Document
Similar Parts
EV2300
texas instruments
Evaluation Module Interface Board Interface Development Tools USB-Based PC Int Board EVALUATION MOD INTERFACE BOARD EV2300 Module Interface Board EV2300 EVM, INTERFACE BOARD Texas Instruments Gas Guage Interface USB 至 SMBus接口 评估套件
$869.7600
Details

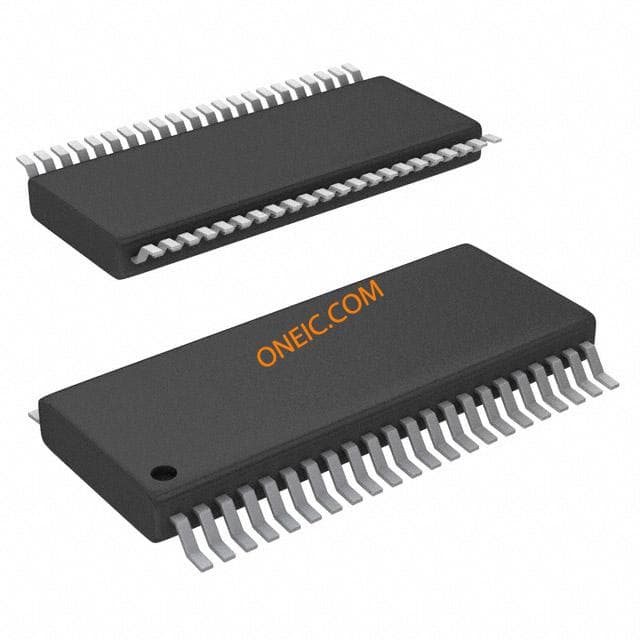

BQ20Z65DBT-R1
