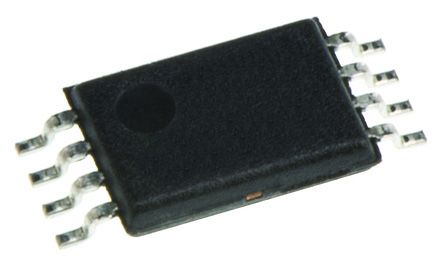

点击放大查看
BQ2000PW
| Manufacturer | |
| Description | Fast Charge Management Li-Ion/NiCD/NiMH Packs 2000mA 8-Pin TSSOP Tube IC SWITCHMODE CHARGE MGMT 8TSSOP Battery Management Multi-Chemistry Switchmode Charge Switch-mode Multi-Chemistry Battery Charger with Peak Voltage Detection Termination Texas Instruments 锂离子、镍镉、镍氢 电池充电控制器, 8针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Charge Management | Other Names | 296-12359-5 |
| Product Category | Battery Management | Standard Package | Rail / Tube |
| Factory Pack Quantity | 150 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage Rating | 2 V | Number of Cells | 2-4 Cells Single Cell |
| Current - Output | 2000(Min) mA | Current - Supply | 0.5 mA |
| Voltage - Supply | 5 V | Regulator Topology | Switchmode Buck |
| Voltage - Supply (Min) | 4 V | Current - Supply (Main IC) | >2 |
Mechanical
| Width | 4.4mm | Height | 1.15mm |
| Length | 3mm | Weight | 0.001185 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8TSSOP |
| Package Cooled | TSSOP | Length - Overall | 3.1(Max) |
| Package Quantity | TSSOP | Size / Dimension | 3 x 4.4 x 1.15mm |
| Number of Positions | 8 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 8-TSSOP | ||
Product Info
| Type | Fast Charge Management | Series | BQ2000 |
| Features | Standard BAT Temp Monitoring | Function | Charge Management |
| Software | SLUS138D | Manufacturer | Texas Instruments |
| Product Type | Charge Management | Pattern Number | Y |
| Battery Chemistry | Li-Ion|NiCD|NiMH Packs | Control Interface | Standalone |
| Functional Diagram | fbd_slus138d.gif | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | -20 to 70 | Operating Temperature | -20 to 70 °C |
