AM3359BZCZA80
| Manufacturer | |
| Description | IC ARM CORTEX A8 80MHZ 324NFBGA Microprocessors - MPU Sitara ARM Cortex-A8 MPU MPU AM335x RISC 32-Bit 800MHz 1.8V/3.3V 324-Pin NFBGA MPU, ARM CORTEX-A8, 800MHz, BGA-324 IC MPU, SITARA CORTEX A8, 800MHZ, 324BGA Sitara Processor |
| Category |
Business
| Tradename | Sitara | Other Names | AM3359BZCZA80-ND |
| Standard Package | 126 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85423190 | Part Status | ACTIVE |
| Rad Hardened | No | Security Features | Cryptography, Random Number Generator |
Electrical
| Speed | 800MHz | Voltage | 0.912 V ~ 1.144 V |
| Ethernet | 10/100/1000 Mbps (2) | Core Size | 32 b |
| Core Type | ARM Cortex A8 | Frequency | 800 MHz |
| Interface | CAN, I2C, SPI, UART, USB | Clock Rate | 800 MHz |
| Memory Size | 128 KB | Voltage - I/O | 1.8V, 3.3V |
| Clock Frequency | :800MHz | RAM Controllers | LPDDR, DDR2, DDR3, DDR3L |
| Voltage - Supply | 1.1 V | Co-Processors/DSP | Multimedia; NEON™ SIMD |
| Program Memory Size | 64 KB | Graphics Acceleration | Yes |
Mechanical
| Weight | 0 | Packaging | Tray |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :324 | Package / Case | 324-LFBGA |
| Package Cooled | NFBGA | Material Finish | :MSL 3 - 168 hours |
| Package Quantity | 126 | Number of Positions | 324 |
| Supplier Device Package | 324-NFBGA(15x15) | Number of Cores/Bus Width | 32 bit |
Product Info
| USB | USB 2.0 + PHY (2) | Type | ARM® Microprocessor |
| Series | AM3359 | Software | SPRS717H |
| On-Chip RAM | Yes | Architecture | RISC |
| Core Processor | ARM Cortex-A8 | Pattern Number | Y |
| Number of Timers | 10 | Functional Diagram | fbd_sprs717h.gif |
| RF Family/Standard | AM335x | Utilized IC / Part | View |
| Additional Interfaces | CAN, I²C, McASP, McSPI, MMC/SD/SDIO, UART | Display & Interface Controllers | LCD, Touchscreen |
Environmental
| Temperature - Test | -40 to 105 | Operating Temperature | - 40 C |
| Operating Temperature - Junction | 105C | ||
Similar Parts
TMDXEVM3358
texas instruments
GENERAL PURPOSE AM335X EVM DEVELOPMENT BOARDS & KITS - ARM AM335X EVAL MOD EVAL MODULE FOR AM335X AM335x ARM Cortex-A8 Evaluation Module Development Boards & Kits - ARM AM335x Eval Mod AM335X, WLAN / BLUETOOTH, EVAL MOD
TMDXIDK3359
texas instruments
INDUSTRIAL DEV KIT (NO LCD OR WIFI) Development Boards & Kits - ARM Industrial Dev Kit AM3359 Industrial Development Kit KIT IND DEV FOR AM3359 AM335x Ind. Design Kit Evaluation Module SITARA, AM3359, INDUSTRIAL, DEV KIT

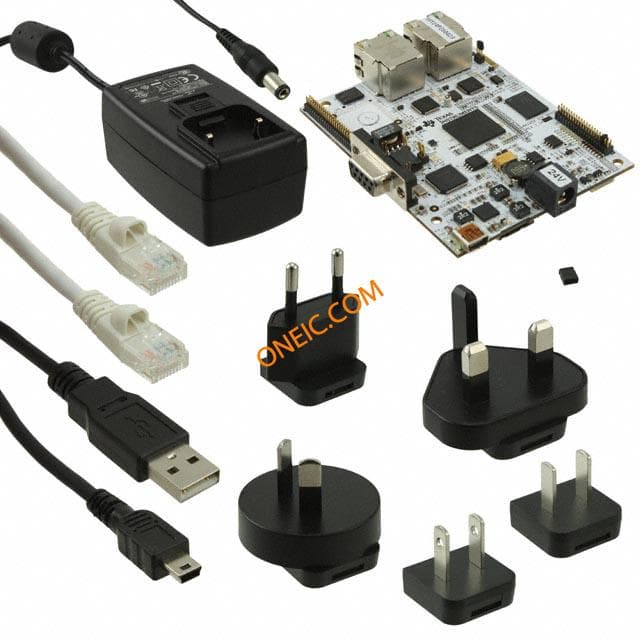

TMDXICE3359
