ADS8505IBDW
| Manufacturer | |
| Description | ADC Single SAR 250ksps 16-bit Parallel 28-Pin SOIC Tube Analog to Digital Converters - ADC 16-Bit 250kHz CMOS w/Parallel Interface Single ADC SAR 250ksps 16-bit Parallel 28-Pin SOIC Tube IC ADC 16BIT 250KSPS 28-SOIC 16-Bit 250kHz CMOS Analog-to-Digital Converter w/Parallel Interface 2.5V Internal Reference Texas Instruments , 16 位 ADC, 并行接口, 28针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog to Digital Converters | Other Names | 296-18676-5 |
| Product Category | Analog to Digital Converters - ADC | Standard Package | Rail / Tube |
| Factory Pack Quantity | 20 | Standard Package Name | SOIC |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Interface | Parallel | Linearity | �1LSB |
| S/N Ratio | 88(Typ) dB | Input Type | Voltage |
| Resolution | 16 Bit | Input Signal | Single-Ended |
| INL/DNL (LSB) | ±1.5LSB | Power - Input | Analog and Digital |
| Power - Rated | 100 W | Converter Type | General Purpose |
| Data Interface | Parallel | Input Polarity | Bipolar |
| Number of Bits | 16 | Reference Type | Ext Int |
| Voltage Rating | ±10V | Data Rate (Max) | 250 KSPs |
| Voltage - Rated | �10 | Number of Inputs | 1 |
| Voltage - Supply | 5 V | Digital I/O Lines | 并行 |
| Distortion Rating | ±1.5LSB | Voltage Reference | Internal, External |
| Number of Channels | 1 | Number of Elements | 1 |
| Sampling Frequency | 250 ksps | Analog Input:Output | 5.25 |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Analog and Digital | Power - Average Forward | 155 |
| Power Dissipation (Max) | 100 mW | Voltage - Supply, Analog | 4.75 V to 5.25 V |
| Differential Nonlinearity | ±1LSB | Voltage - Supply, Digital | 5.25 |
| Sampling Rate (Per Second) | 250k | Differential - Input:Output | No |
| Voltage - Supply Span (Typ) | Not Required V | S/N Ratio, ADCs / DACs (db) Typ | 88 dB |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 7.52mm | Height | 2.35mm |
| Length | 18mm | Weight | 0.025778 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 28 | Package / Case | 28SOIC |
| Package Cooled | SOIC | Length - Overall | 18.1(Max) |
| Package Quantity | SOIC | Size / Dimension | 18 x 7.52 x 2.35mm |
| Number of Positions | 28 | Shell Size - Insert | 2.35(Max) |
| Supplier Device Package | 28-SOIC | Shell Size - Insert (Convert To) | SAR |
Product Info
| Series | ADS8505 | Features | Internal Reference |
| Software | SLAS180B | Architecture | SAR |
| Manufacturer | Texas Instruments | Development Kit | ADS8505EVM |
| Functional Diagram | fbd_slas180b.gif | Utilized IC / Part | View |
| Printed Circuit Board | 28 | Number of A/D Converters | 1 |
| Number of Inputs and Type | 1 Single-Ended, Bipolar | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
Documents & Media
Similar Parts

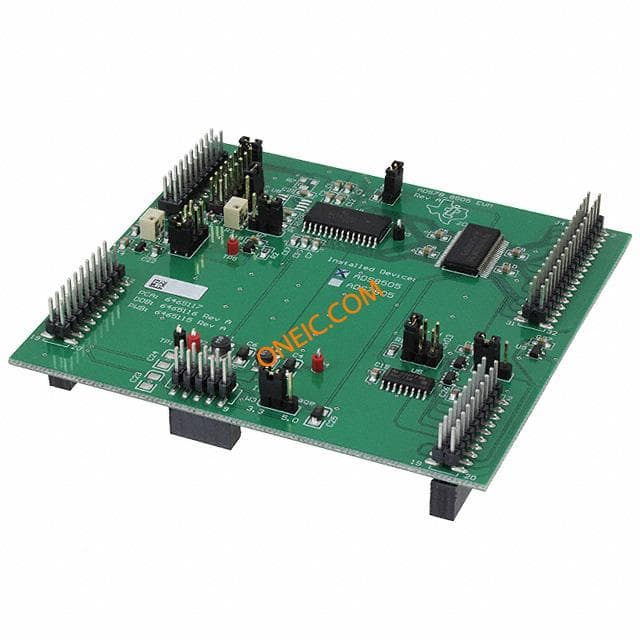

ADS8505EVM
