ADS8364Y/250

Manufacturer	Texas Instruments Incorporated
Description	ADC Triple SAR 250ksps 16-bit Parallel 64-Pin TQFP T/R Triple ADC SAR 250ksps 16-bit Parallel 64-Pin TQFP T/R IC ADC LP 16BIT 250KSPS 64TQFP Analog to Digital Converters - ADC 16-Bit 250kSPS 6 ADC Parallel Out 6-Channel Simultaneous Sampling SAR ADC, 16-bits with 250kSPS for Motor and Power Control Texas Instruments , 3通道 16 位 ADC, 差分输入, 并行接口, 64针 TQFP封装
Category	Integrated CircuitsData ConvertersAnalog-to-Digital Converters (ADC)

对参数有疑问？问 AI 助手

Business

Product	Analog to Digital Converters	Other Names	296-13449-1
Product Category	Analog to Digital Converters - ADC	Standard Package	Tape & Reel
Factory Pack Quantity	250	Standard Package Name	QFP

Compliance

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Part Status	ACTIVE	Rad Hardened	No

Electrical

Interface	Parallel	Linearity	�1.5LSB(Typ)
S/N Ratio	83.2(Typ) dB	Input Type	Voltage
Resolution	16 Bit	Input Signal	Differential
INL/DNL (LSB)	±8LSB	Power - Input	Analog and Digital
Power - Rated	471.5 W	Converter Type	General Purpose
Data Interface	Parallel	Input Polarity	Bipolar
Number of Bits	16	Reference Type	Ext Int
Voltage Rating	±2.5V	Data Rate (Max)	250 KSPs
Ratio - S/H:ADC	Yes	Voltage - Rated	�2.5
Number of Inputs	6	Voltage - Supply	5 V
Digital I/O Lines	并行	Distortion Rating	±8LSB
Voltage Reference	Internal\|External	Number of Channels	6 Channel
Number of Elements	3	Sampling Frequency	250 ksps
Current Rating (Max)	Catalog	Number of ADCs / DACs	3
Voltage Supply Source	Analog and Digital	Power - Average Forward	471.5 mW
Power Dissipation (Max)	471.5 mW	Voltage - Supply, Analog	4.75 V to 5.25 V
Differential Nonlinearity	±1.5LSB(Typ)	Voltage - Supply, Digital	2.7 V to 5.5 V
Number of Outputs and Type	6	Sampling Rate (Per Second)	250k
Differential - Input:Output	Yes	Voltage - Supply Span (Typ)	Not Required V
S/N Ratio, ADCs / DACs (db) Typ	83.2 dB

Mechanical

Width	10.2mm	Height	1.05mm
Length	10.2mm	Weight	0.009690 oz
Packaging	Tape and Reel	Lead Style	Gull-wing
Mounting Type	Surface Mount	Connector Type	Parallel
Mounting Style	SMD/SMT	Number of Pins	64
Package / Case	64TQFP	Package Cooled	TQFP
Length - Overall	10.2(Max)	Package Quantity	TQFP
Size / Dimension	10.2 x 10.2 x 1.05mm	Number of Positions	64
Shell Size - Insert	1.05(Max)	Supplier Device Package	64-TQFP (10x10)
Shell Size - Insert (Convert To)	SAR

Product Info

Series	ADS8364	Features	Internal Reference, Simultaneous Sampling
Software	SBAS219C	Architecture	SAR

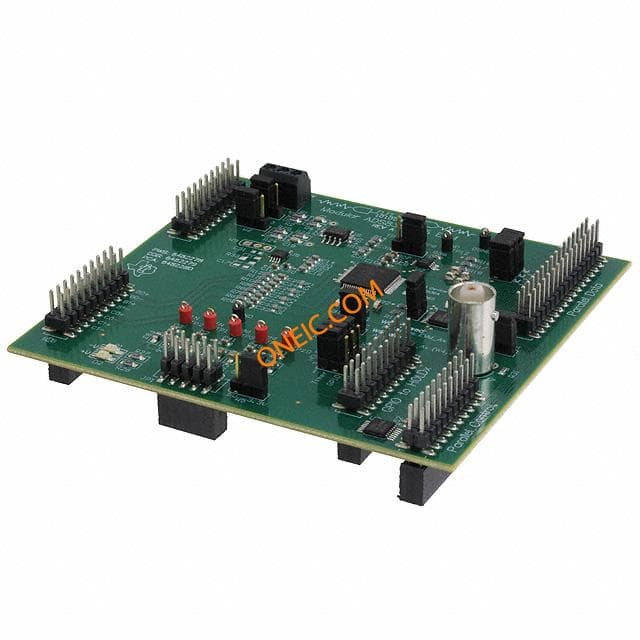

Manufacturer	Texas Instruments	Development Kit	ADS8364M-EVM
Functional Diagram	fbd_sbas219c.gif	Utilized IC / Part	View
Output Configuration	Surface Mount	Printed Circuit Board	64
Number of A/D Converters	6	Number of Inputs and Type	12 Single-Ended, Bipolar; 6 Differential, Bipolar
