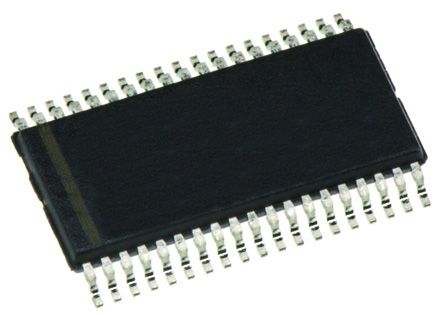

ADS7961SDBT
| Manufacturer | |
| Description | Analog to Digital Converters - ADC 8B 1MSPS 16Ch Sgl Ended Micro Pwr Single ADC SAR 1Msps 8-bit Serial 38-Pin TSSOP Tube IC ADC 8BIT 1MSPS 16CH 38-TSSOP ADC Single SAR 1MSPS 8-Bit Serial 30-Pin TSSOP Tube Peak Re 8BIT ADC, SAR, 16CH, 1MSPS, 38TSSOP 8 Bit, 1 MSPS, 16 Ch, Single Ended, Micro Power, sr i/f, SAR ADC Texas Instruments , 8 位 ADC, SPI接口, 38针 TSSOP封装 |
| Category |
Business
| Other Names | 296-23513-5 | Product Category | Analog to Digital Converters - ADC |
| Standard Package | 50 | Factory Pack Quantity | 50 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 00000000 |
| Part Status | ACTIVE | ||
Electrical
| Interface | Serial, SPI | S/N Ratio | 49 |
| Input Type | Single-Ended | Resolution | 8 bit |
| Input Signal | Single-Ended | INL/DNL (LSB) | ±0.3LSB |
| Converter Type | General Purpose | Data Interface | Serial, SPI™ |
| Input Polarity | Unipolar | Number of Bits | 8 |
| Reference Type | Ext | Voltage Rating | 2.5V/5V |
| Data Rate (Max) | 1 MSPs | Current - Output | :2.3mA |
| Number of Inputs | 16 | Voltage - Supply | 2.7 V to 5.25 V |
| Resolution (Bits) | :8bit | Voltage Reference | External |
| Number of Channels | 16 | Sampling Frequency | 1Msps |
| Analog Input:Output | 5.25 | Current Rating (Max) | Catalog |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Single |
| Power - Average Forward | 11.5 | Differential Nonlinearity | ±0.3LSB |
| Voltage - Supply, Digital | :1.7V to 5.25V | Voltage Supply - Internal | :2.7V to 5.25V |
| Sampling Rate (Per Second) | 1M | Differential - Input:Output | No |
| S/N Ratio, ADCs / DACs (db) Typ | 49 dB | ||
Mechanical
| Width | 4.5(Max) | Weight | 0.004374 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :38 |
| Package / Case | TSSOP-38 | Material Finish | :MSL 2 - 1 year |
| Length - Overall | 9.8(Max) | Package Quantity | TSSOP |
| Number of Positions | 38 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 38-TSSOP | ||
Product Info
| Series | ADS7961 | Software | SLAS605A |
| Base Unit | :7961 | Architecture | SAR |
| Functional Diagram | fbd_slas605a.gif | Utilized IC / Part | View |
| Printed Circuit Board | 38 | Number of A/D Converters | 1 |
| Number of Inputs and Type | 16 Single-Ended, Unipolar | ||
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | + 125 C |
Documents & Media
Similar Parts
MSP430F149IPAG
texas instruments
MCU 16-bit MSP430 RISC 60KB Flash 2.5V/3.3V 64-Pin TQFP Tray 16-bit Microcontrollers - MCU 60 kB Flash 2KB RAM 12b ADC-2 USART-HW MCU 16-bit MSP430 MSP430 RISC 60KB Flash 2.5V/3.3V 64-Pin TQFP Tray IC MCU 16BIT 60KB FLASH 64TQFP MSP430F149IPAG, 16 bit Microcontroller MSP430 8MHz 60kb Flash, 2kb RAM, SPI 64-Pin TQFP IC, MICROCONTROLLER, 16BIT, SMD 16-Bit Ultra-Low-Power Microcontroller, 60 kB Flash, 2KB RAM, 12 bit ADC, 2 USARTs, HW multiplier Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 256 B，60 kB ROM 闪存, 2 kB RAM, 64针 TQFP封装
RE933-08
Roth Elektronik

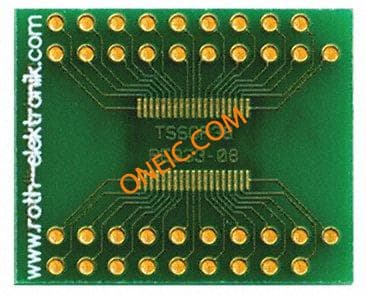

RE933-08, Surface Mount (SMT) Board TSSOP Epoxy Glass Double-Sided 28.5 x 23.5 x 1.5mm FR4 ADAPTOR, SMD, TSSOP-38, 0.50MM Board: universal; multiadapter; W:58.9mm; L:120.1mm; TSSOP38 Laboratory card FR4 Epoxide + chem. Ni/Au TSSOP38 Adapter, RE933-08, Roth Elektronik
