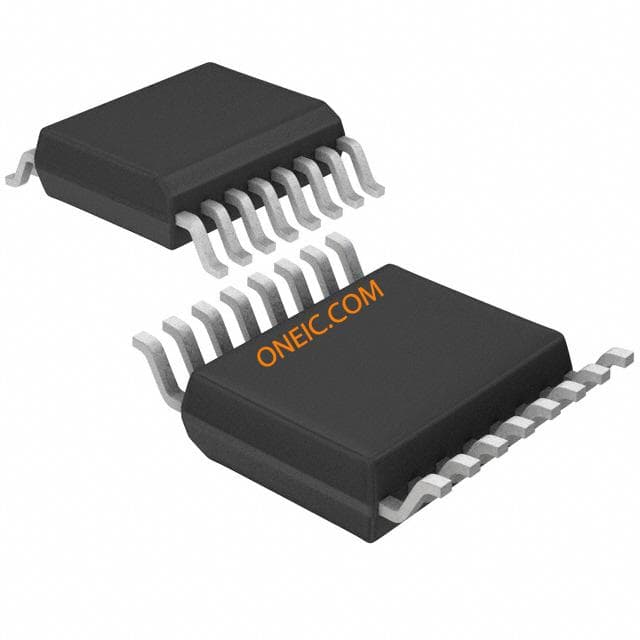

ADS7846N
| Manufacturer | |
| Description | Touch Screen Controller 16-Pin TSSOP Tube Resistive Touch Screen 4-Wire 16-Pin TSSOP Tube IC 4WIRE TOUCH SCRN CONT 16TSSOP Touch Screen Converters & Controllers 4-wire Touch Screen Controller Driver; touch screen driver; 0.4÷4.16V; Channels:1; TSSOP16 Texas Instruments 12 位 125ksps 触摸屏控制器, 16针 TSSOP封装 Touch Screen Controllers 4-wire Touch Screen Controller |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Touch Screen Controllers | Product Category | Touch Screen Converters & Controllers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 90 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Data Rate | 125 kSPS | Interface | SPI |
| Input Type | 1 TSC | Resolution | 12 bit |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ | Voltage Rating | 0.4...4.16V |
| Current - Output | 500µA | Current - Supply | 280 uA |
| Voltage - Supply | 2.2 V ~ 5.25 V | Resolution (Bits) | 12 b |
| Voltage Reference | External, Internal | Number of Channels | 1 |
| Sampling Frequency | 125 kS/s | Current Rating (Max) | 500µA |
| Voltage - Supply (Min) | 5.25 | Sampling Rate (Per Second) | 125k |
Mechanical
| Width | 4.4mm | Height | 1.15mm |
| Length | 5mm | Weight | 0.002183 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Connector Type | MICROWIRE™, QSPI™, Serial, SPI™ |
| Diameter - Bit | 12 b | Mounting Style | SMD/SMT |
| Number of Pins | 16 | Package / Case | 16TSSOP |
| Length - Overall | 5.1(Max) | Package Quantity | TSSOP |
| Size / Dimension | 5 x 4.4 x 1.15mm | Number of Positions | 16 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 16-TSSOP |
Product Info
| Spg | 20 | Type | Resistive |
| Series | ADS7846 | Tool Type | Available |
| Manufacturer | Texas Instruments | Number of Keys | 1 TSC |
| Number of Units | 1 | RF Family/Standard | ADS7846 |
| Utilized IC / Part | touch screen driver | Printed Circuit Board | 16 |
Environmental
| Operating Temperature | -40 to 85 °C | ||
