ADS6444EVM
| Manufacturer | |
| Description | Evaluation Board For ADS6444 Analog To Digital Converter Data Conversion IC Development Tools ADS6444 Evaluation Module EVAL MODULE FOR ADS6444 |
| Category |
Business
| Product | Evaluation Boards | Product Category | Data Conversion IC Development Tools |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | EU RoHS | RoHS Not Applicable |
Electrical
| Interface | SMA | Input Range | 2 Vpp |
| Power (Watts) | 340mw @ 105MSPS | Data Interface | Serial, Parallel |
| Number of Bits | 14 | Ratio - S/H:ADC | 1 |
| Voltage - Supply | 3.3 V to 5 V | Number of ADCs / DACs | 1 |
| Power (Typ) @ Conditions | 340mw @ 105MSPS | Sampling Rate (Per Second) | 105M |
Mechanical
| Connector Type | Serial, Parallel | ||
Product Info
| Type | Development Kit | Contents | Board |
| Features | http://www.ti.com/lit/ds/symlink/ads6444.pdf | Technology | ADC |
| Tool Type Feature | ADS6444 | RF Family/Standard | ADS6444 |
| Utilized IC / Part | ADS6444 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

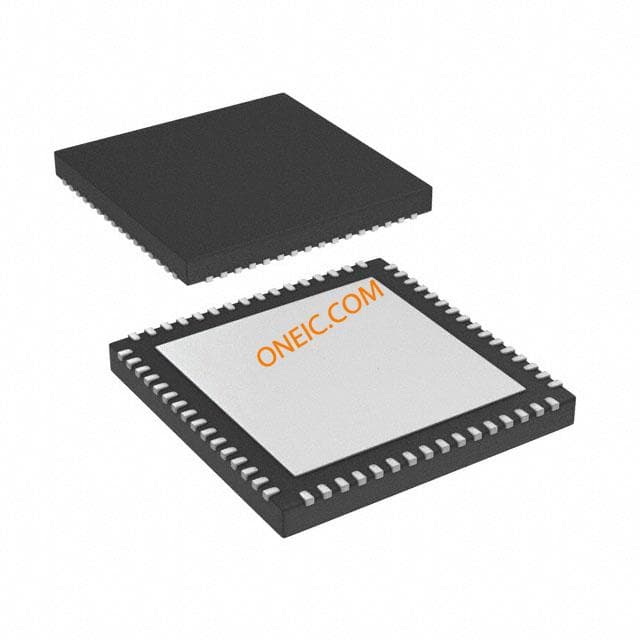

ADS6444IRGCR
