ADS6244EVM
| Manufacturer | |
| Description | Evaluation Board ADS6244 Evaluation Module Data Conversion IC Development Tools ADS6244 Evaluation Module ADS6244EVM ADS6244EVM EVALUATION MODULE |
| Category |
Business
| Product | Evaluation Boards | Product Category | Data Conversion IC Development Tools |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | RoHS Not Applicable | Tariff No | 84733020 |
Electrical
| Interface | SMA | Input Range | 2 Vpp |
| Data Interface | Serial, Parallel | Number of Bits | 14 |
| Voltage - Supply | 3.3 V to 5 V | Number of ADCs / DACs | 2 |
| Power (Typ) @ Conditions | 405mW @ 105MSPS | Sampling Rate (Per Second) | 105M |
Mechanical
| Weight | 1 | ||
Product Info
| Type | Development Kit | Contents | Board |
| Features | Application Note:http://www.ti.com/lit/an/scaa092/scaa092.pdfhttp://www.ti.com/lit/an/scaa091/scaa091.pdf User Guide:http://www.ti.com/lit/ug/slau240/slau240.pdf | Technology | ADC |
| Tool Type Feature | ADS6244 | RF Family/Standard | ADS6244 |
| Utilized IC / Part | ADS6244 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

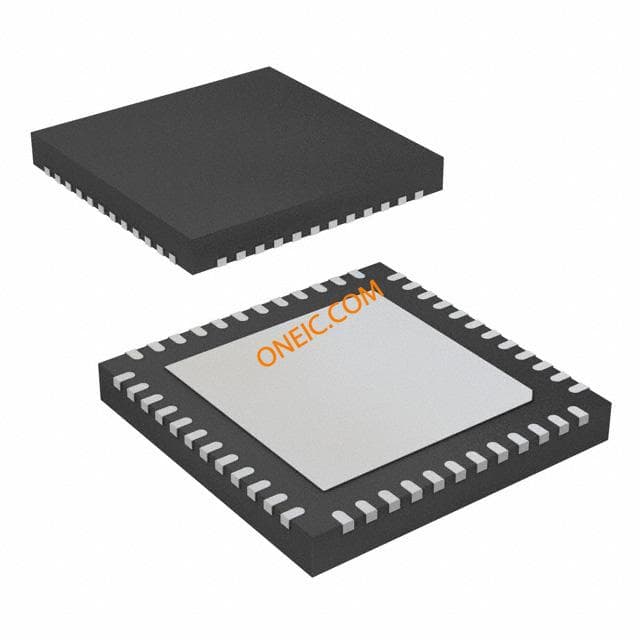

ADS6244IRGZRG4
