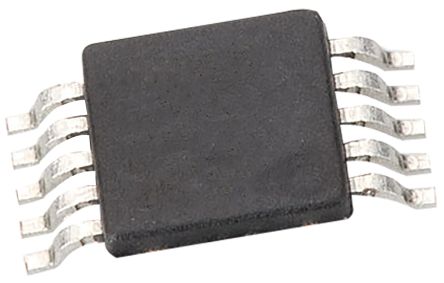

ADC124S051CIMM/NOPB
| Manufacturer | |
| Description | Analog to Digital Converters - ADC IC ADC 12BIT 4CH 500KSPS 10MSOP ADC124S051CIMM, 12-Bit Analogue to Digital Converter, Serial, 10-Pin MSOP Analog to Digital Converters - ADC 4-CH 200ksps-500kSPS 12B A/D Cnvtr 4 Channel, 200 ksps to 500 kSPS, 12-Bit A/D Converter Texas Instruments , 12 位 ADC, 串行接口, 10针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog to Digital Converters | Other Names | ADC124S051CIMM/NOPBDKR |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | Part Status | ACTIVE |
Electrical
| Interface | Serial (4-Wire, SPI, QSPI, Microwire) | S/N Ratio | 72 |
| Input Type | Single-Ended | Resolution | 12 bit |
| Input Signal | Single Ended | INL/DNL (LSB) | ±1.1LSB |
| Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | Number of Bits | 12 |
| Reference Type | Supply | Voltage Rating | 5.25 V |
| Data Rate (Max) | 500 KSPs | Ratio - S/H:ADC | Yes |
| Number of Inputs | 4 | Voltage - Supply | 3.3 V, 5 V |
| Digital I/O Lines | 串行 | Distortion Rating | ±1.1LSB |
| Voltage Reference | Supply | Number of Channels | 4 |
| Sampling Frequency | 500ksps | Analog Input:Output | 5.25 |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Single Supply | Gain Bandwidth Product | 1.5 LSB |
| Power - Average Forward | 3 | Voltage - Supply, Analog | 2.7 V to 5.25 V |
| Voltage - Supply, Digital | 5.25 | Sampling Rate (Per Second) | 200k ~ 500k |
| S/N Ratio, ADCs / DACs (db) Typ | 72.5 dB | ||
Mechanical
| Width | 3mm | Height | 0.86mm |
| Length | 3mm | Packaging | Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 10 | Package / Case | MSOP |
| Package Cooled | MSOP | Package Quantity | 1000 |
| Size / Dimension | 3 x 3 x 0.86mm | Number of Positions | 10 |
| Supplier Device Package | 10-VSSOP | Shell Size - Insert (Convert To) | SAR |
Product Info
| Type | S/H ADC | Series | ADC124S051 |
| Function | Y | Software | SNAS260E |
| Architecture | SAR | Manufacturer | Texas Instruments |
| Functional Diagram | fbd_snas260e.gif | Utilized IC / Part | View |
| Number of A/D Converters | 1 | Number of Inputs and Type | 4 Single-Ended, Unipolar |
Environmental
| Mechanical Life | New At Mouser | Temperature - Test | -40 to 85 |
| Operating Temperature | + 85 C | ||
