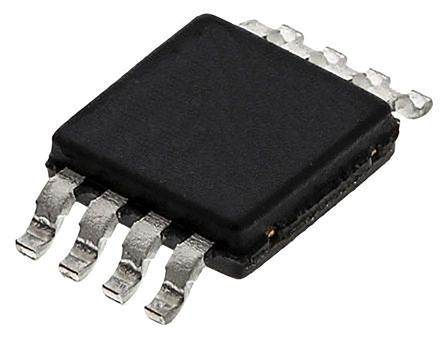

LM75BIMM-3/NOPB
| Manufacturer | |
| Description | . LM75BIMM-3/NOPB - Temperature Sensor Digital, Local -55°C ~ 125°C 9 b 8-VSSOP from Texas Instruments. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LM75BIMM-3/NOPBDKR | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 90251920 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Accuracy | ±3(Max) °C | Interface | Serial (2-Wire, I2C) |
| Output Fan | Yes | Resolution | 9 Bit |
| Output Type | Digital | Sensor Type | Internal |
| Sensing Range | :-55°C to +125°C | Number of Bits | 9 bit |
| Voltage Rating | 3 V | Current - Output | 10 uA |
| Voltage - Supply | 3 to 5.5 V | Digital I/O Lines | 2-Wire, I2C, SMBus |
| Resolution (Bits) | :9bit | Current Rating (Max) | Catalog |
| Voltage - Supply (Min) | 5.5 V | ||
Mechanical
| Width | 3mm | Height | 0.86mm |
| Length | 3mm | Weight | 0.12 |
| Packaging | Tape & Reel (TR) | Termination | :SMD |
| Mounting Type | Surface Mount | Contact Timing | :± 2°C |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8MSOP | Package Cooled | MSOP |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | 1000 | SMALL T&R |
| Size / Dimension | 3 x 3 x 0.86mm | Number of Positions | 8 |
| Supplier Device Package | 8-VSSOP | ||
Product Info
| Series | LM75B | Features | Fault Queue |
| Function | Temp Sensor | Shutdown | Yes |
| Software | SNIS153C | Topology | ADC (Sigma Delta), Comparator, Register Bank |
| Output Alarm | Yes | Configuration | Local |
| Functional Diagram | fbd_snis153c.gif | Utilized IC / Part | View |
Environmental
| Temperature - Test | -55 to 125 | Sensing Temperature | -55°C ~ 125°C |
| Operating Temperature | -55°C ~ 125°C | Switching Temperature | Programmable |
| Sensing Temperature - Local | :-55°C | Temperature Coefficient (Typ) | 2 |
| Operating Temperature - Junction | 125C | ||
