LM22679TJE-5.0/NOPB
| Manufacturer | |
| Description | . LM22679TJE-5.0/NOPB - Buck Switching Regulator IC Positive Fixed 5V 1 Output 5A TO-263-7 Thin from Texas Instruments. from now! |
| Category |
Business
| Tradename | Simple Switcher | Standard Package | Tape & Reel |
| Factory Pack Quantity | 250 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Part Status | ACTIVE |
Electrical
| Output | 1 | PWM Type | Voltage Mode |
| Duty Cycle | 90 | Efficiency | 90(Min) % |
| Output Type | Fixed | Converter Type | Inverting, Step Down |
| Regulator Type | 是 | Voltage Rating | 5 V |
| Delay Time - ON | Adjustable | Load Regulation | 90 % |
| Current - Output | 5 A | Current - Supply | 3.4 mA |
| Voltage - Supply | 4.5 to 42 V | Number of Outputs | 1 |
| Current - Switching | 7.1 | Switching Regulator | Yes |
| Current Rating (Max) | Catalog | Must Release Voltage | Fixed |
| Frequency - Switching | 500(Typ) kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 5V | Voltage - Output (Max) | 5 V |
| Current - Quiescent (Iq) | 3.4 | Voltage Regulation - Load | Internal |
| Accuracy - Voltmeter; Ammeter | 1.5 | ||
Mechanical
| Width | 9.85mm | Height | 2mm |
| Length | 10.16mm | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 7 | Package / Case | 7Thin TO-263 EP |
| Package Cooled | TO-263 | Package Quantity | 250 |
| Size / Dimension | 10.16 x 9.85 x 2mm | Number of Positions | 7 |
| Supplier Device Package | TO-263-7 Thin | ||
Product Info
| Type | Step Down | Series | LM22679 |
| Features | Enable | Software | SNVS581L |
| Topology | Buck | Application | Industrial |
| Manufacturer | SIMPLE SWITCHER | Control Method | Voltage Mode |
| Development Kit | LM22679EVAL/NOPB | Functional Diagram | fbd_snvs581l.gif |
| Utilized IC / Part | View | Output Configuration | Surface Mount |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
Documents & Media
Similar Parts
551600233-001/NOPB
Texas Instruments
Power Management IC Development Tools LM2267X BUILD IT BOARD WEBENCH BUILD IT LM2267X TO-263

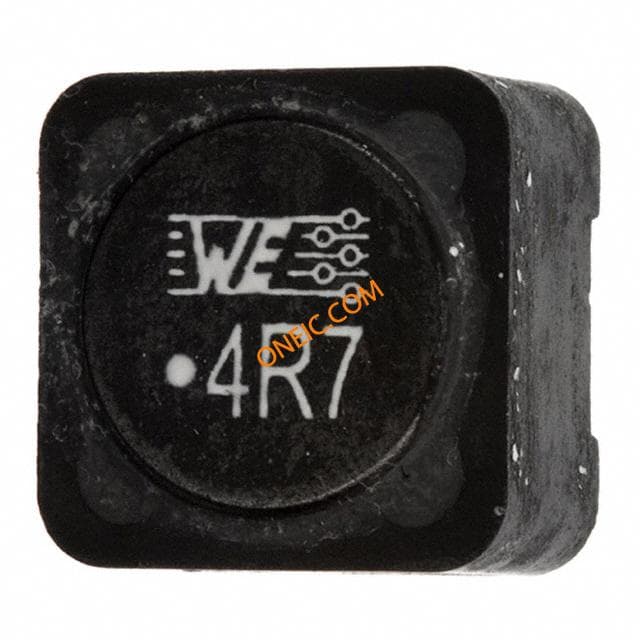

74477004
