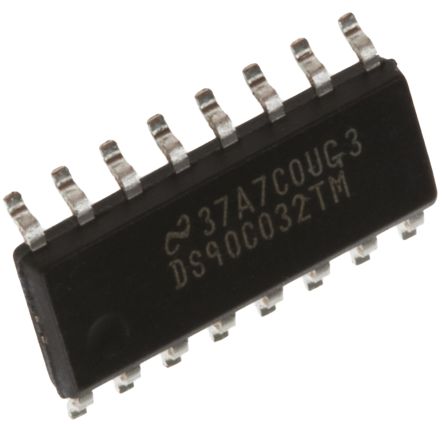

DS90C032TM/NOPB
| Manufacturer | |
| Description | . DS90C032TM/NOPB - 0/4 Receiver LVDS 16-SOIC from Texas Instruments. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 48 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
| ESD Protection | 3.5 | ||
Electrical
| Data Rate | 155 Mbps | Interface | LVDS |
| Baud Rates | 155.5 | Input Type | LVDS |
| Output Type | Receiver | Input Signal | LVDS |
| Output Signal | TTL | Power - Rated | 1025 W |
| Voltage Rating | 5 V | Data Rate (Max) | 155.5 Mbps |
| Current - Output | :100mA | Current - Supply | 10mA |
| Number of Inputs | 4 | Voltage - Supply | 4.5 V ~ 5.5 V |
| Number of Outputs | 4 | Propagation Delay | :3.48ns |
| Number of Elements | 4 | Voltage - I/O High | 0.1 V |
| Current - Input Bias | 11 | Current Rating (Max) | Catalog |
| Voltage - Supply (Min) | 5.5 V | Input Logic Level - Low | -0.1 V |
| Power Dissipation (Max) | 1025 | Delay Time - Propagation | 5 ns |
| Propagation Delay tpLH / tpHL (Max) | 5 ns | ||
Mechanical
| Width | 3.91mm | Height | 1.45mm |
| Length | 9.91mm | Weight | 0.01 |
| Packaging | Rail | Case Color | :SOIC |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16SOIC N |
| Package Cooled | SOIC N | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 10(Max) | Package Quantity | SOIC N |
| Size / Dimension | 9.91 x 3.91 x 1.45mm | Number of Positions | 16 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 16-SOIC N |
Product Info
| Spg | 96 | Type | Receiver |
| Series | DS90C032 | Function | Receiver |
| Protocol | LVDS | Software | SNLS094D |
| Number of Units | 1 | Number of Drivers | 4 |
| Functional Diagram | fbd_snls094d.gif | Utilized IC / Part | line interface |
| Number of Receivers | 4 | Printed Circuit Board | 16 |
| Number of Drivers/Receivers | 0/4 | ||
