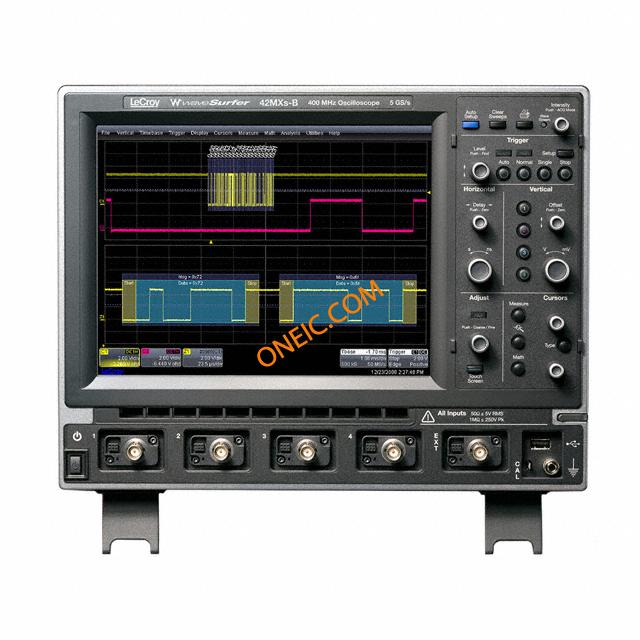

WAVESURFER 42MXS-B
| Manufacturer | |
| Description | Benchtop Oscilloscopes 400MHZ 5GS/S 2CH W/10.4 CLR TSD DGTL O-SCOPE 400MHZ 5GS/S 2CH Oscilloscope: digital; Band: ≤400MHz; Channels:2; 16Mpts/ch; 5Gsps |
| Category |
Business
| Other Names | WAVESURFER42MXSB | Part # Aliases | WS42MXS-B |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | ||
Electrical
| Channels | 2 | Frequency | ≤400MHz |
| Interface | Ethernet, GPIB, Serial, USB | Memory Size | 32Mpts |
| Display Type | Color TFT, LCD | Input Signal | 2mV/div...10V/div, 2mV/div...1V/div (50 Ω) |
| Power - Input | 90...264V, 47...63Hz | Voltage Rating | 100 VAC to 240 VAC |
| Input Impedance | 1M - 16pF | Rise Time (Typ) | 875ns |
| Voltage - Supply | 90 ~ 264VAC | Resolution (Bits) | 8bit |
| Number of Channels | 2 | Sampling Frequency | 5 GS/s |
| Frequency - Output 1 | 200p...1000s/gr. | Voltage - Input (Max) | 400V |
| Voltage - Input (Min) | 400V | Sampling Rate (Per Second) | 5G |
Mechanical
| Weight | 7.26kg | Bandwidth | 400 MHz |
| Packaging | Bulk | Cable Type | Global Power Cord Sets Included |
| Dimensions - Overall | 340 x 152 x 260mm | ||
Product Info
| Type | Bench, Digital | Function | Record, Recall, Save, Trend |
| Includes | Probes, Manual, Software, USB Cable | Probe Type | Passive 10:1 (2) |
| Display Style | LCD TFT 10,4" (800x600) Touch Screen | Equipment Type | Digital Oscilloscopes |
| Number of Units | 1 | ||
Environmental
| Mechanical Life | New At Mouser | Environment Protection | 2 |
Documents & Media
Similar Parts
ADP305
Teledyne LeCroy
Test Probes 1,400 V, 100 MHz High-Volt Probe PROBE HI VOLT DIFFERENTL 100MHZ Oscilloscope probe; Band: ≤100MHz; Attenuator:100:1/1000:1; 2m Differential / High Voltage High Voltage Probe 100 MHz, ADP305, Teledyne LeCroy
WSXS-I2CBUS TD
Teledyne LeCroy
Test Accessories - Other I2C BUS TRGR & DECDE OPT FOR WSXS OSC I2CBUS TRIGGER/DECODE-WAVESURFER Benchtop Oscilloscopes I2C BUS TRGR & DECDE OPT FOR WSXS OSC I2C bus trigger, WSXS-I2CBUS TD, Teledyne LeCroy

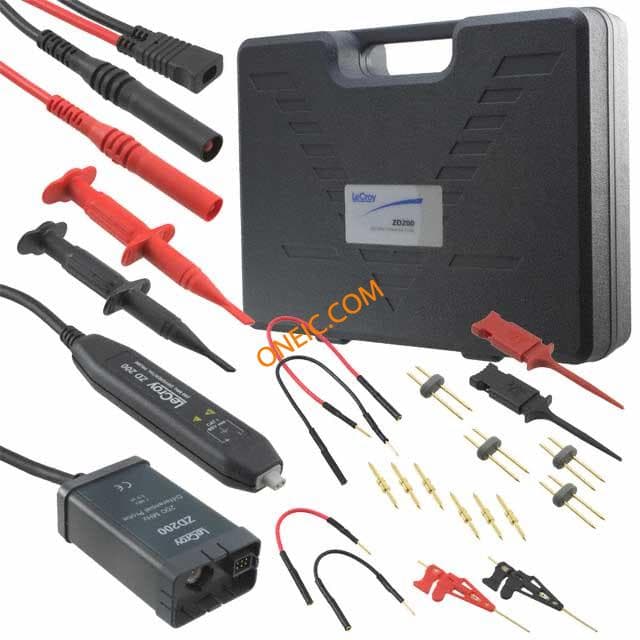

ZD200
Teledyne LeCroy
Test Probes 200MHZ 3.5 PF 1MOHM ACTV DIFF PRB +-20V PROBE ACT DIF 200MHZ 3.5PF 1MOHM Oscilloscope probe; Band: ≤200MHz; Rise time:1,75ns Differential Differential Probe Kit 200 MHz, ZD200, Teledyne LeCroy

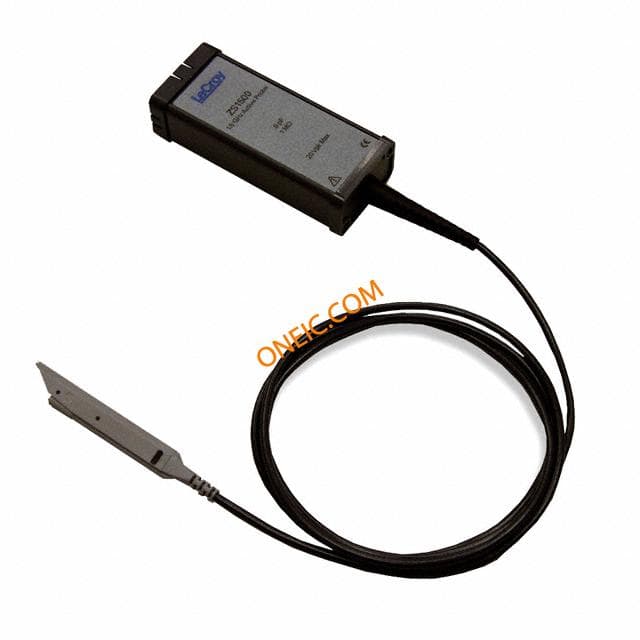

ZS1500
Teledyne LeCroy
Test Probes 1.5GHZ 0.9PF 1MOHM HI IMPDNC ACTV PRB PROBE ACT VOLT 1.5GHZ .9PF 1MOHM Oscilloscope probe; Band: ≤1,5GHz; Attenuator:10:1; Uin max:20V Voltage Probe 10:1 1500 MHz, ZS1500, Teledyne LeCroy

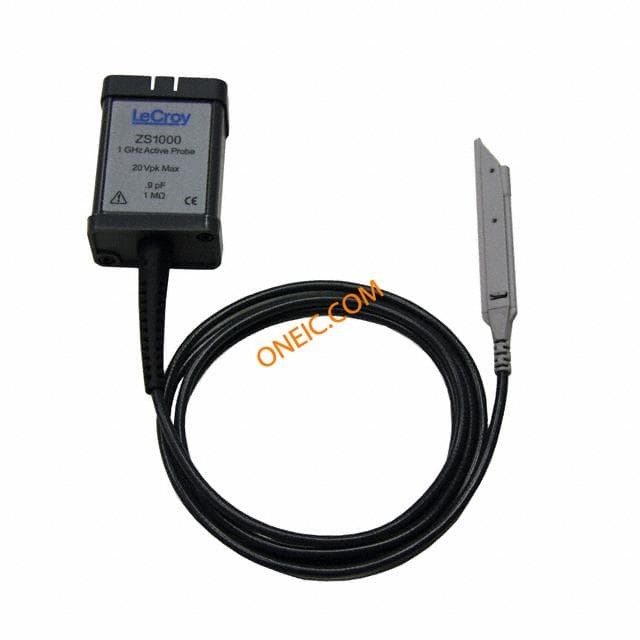

ZS1000
Teledyne LeCroy
Test Probes 1GHZ 0.9PF 1MOHM HI IMPDNC ACTV PRB PROBE ACT VOLT 1GHZ .9PF 1MOHM Oscilloscope probe; Band: ≤1GHz; Attenuator:10:1; Uin max:20V Voltage Probe 10:1 1000 MHz, ZS1000, Teledyne LeCroy

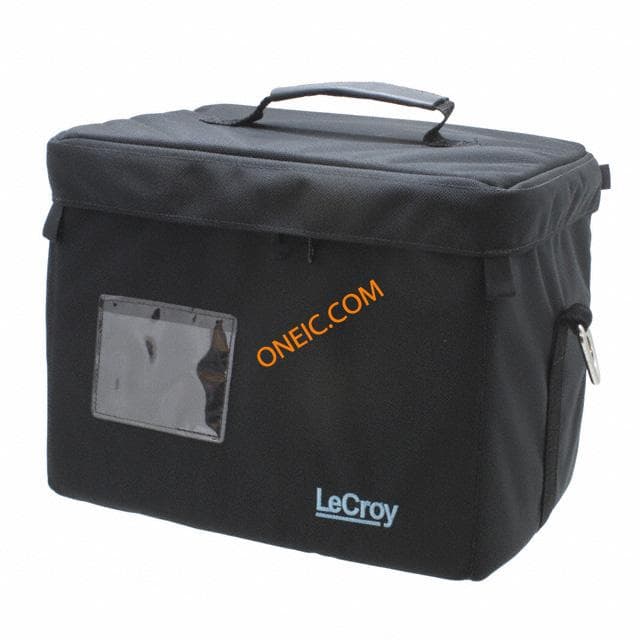

WSXS-SOFTCASE
