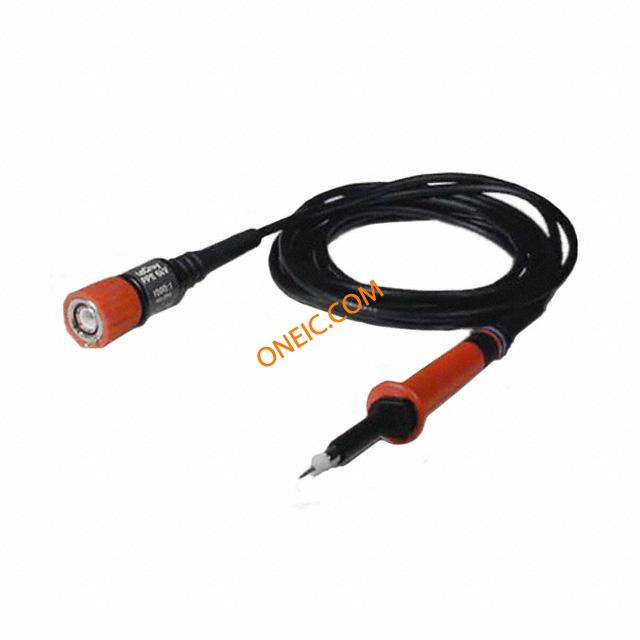

PPE5KV
| Manufacturer | |
| Description | Test Probes HIGH VOLTAGE PROBE PROBE HV 100:1 400MHZ 50M OHMS High Voltage Probe 100:1 400 MHz, PPE5KV, Teledyne LeCroy |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | STATION WAVE | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | ESD Protection | CAT I |
Electrical
| Voltage - Max | CAT I 5000V | Voltage Rating | 5 kV |
| Input Impedance | 6 | Attenuation Value | 100:1 |
| Resistance - Input | 50M | Capacitance - Input | 6pF |
| Ratio - Input:Output | 100:1 | Voltage - Limiting (Max) | 5 |
Mechanical
| Color | Black and Red | Bandwidth | 400MHz |
| Cable Length | 78.740" (2000.00mm) | Length - Overall | 2 m |
Product Info
| Type | Voltage Probe | Design | High Voltage |
| Series | PPE | Function | Suitable where high voltage measurements must be made accurately and utilizes hybrid circuitry |
| Includes | Adapters (BNC, Security), Crocodile Clip, Ground Leads, Sprung Hook, Tips (Insulating, Spring, Straight) Trimming Tool | Tip Style | Hook |
| Equipment Type | Oscilloscopes | Connection Method | BNC Socket |
