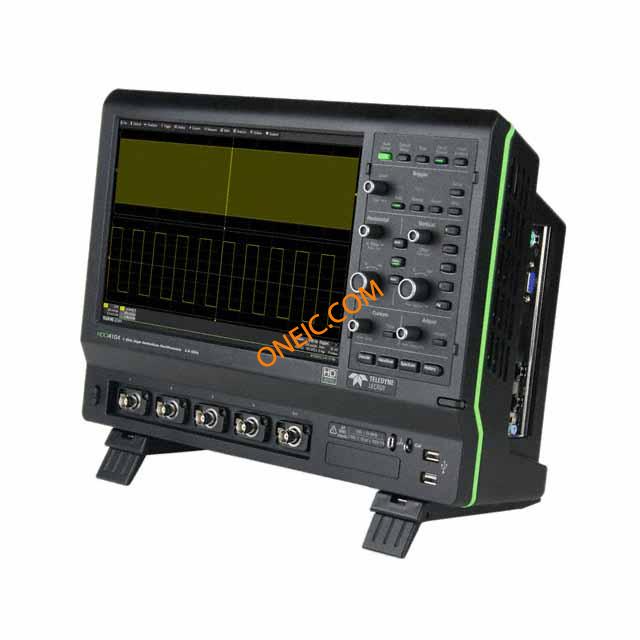

HDO4104
| Manufacturer | |
| Description | DGTL OSCOPE 12BIT 1GHZ 4CH Benchtop Oscilloscopes High-Definition Oscilloscope Oscilloscope: digital; Band: ≤1GHz; Channels:4; 12,5Mpts/ch Oscilloscope 4x1000 MHz 2.5 GS/s, HDO4104, Teledyne LeCroy |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | HDO4000 HDO4096 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | Part Status | 3 years |
Electrical
| Input | AC | Memory | 12500 |
| Channels | 4 | Frequency | ≤1GHz |
| Interface | Ethernet, USB | Memory Size | 25Mpts |
| Display Type | LCD - Color (Touch) | Input Signal | 1mV/div...10V/div, 1mV/div...1V/div (50 Ω) |
| Power - Input | 100...240VAC, 45...440Hz | Voltage Rating | 100 VAC to 240 VAC |
| Input Impedance | 1M - 15pF | Rise Time (Typ) | 450ps |
| Voltage - Supply | 100 ~ 240VAC | Resolution (Bits) | 12bit |
| Number of Channels | 4 | Sampling Frequency | 2.5 GS/s |
| Frequency - Output 1 | 20p...10000s/gr. | Voltage - Input (Max) | 400V |
| Voltage - Input (Min) | 400V | Sampling Rate (Per Second) | 2.5G |
Mechanical
| Size | 399 x 131 x 291 mm | Weight | 5.86kg |
| Bandwidth | 1GHz | Cable Type | Global Power Cord Sets Included |
| Package Quantity | 1 | Dimensions - Overall | 292 x 400 x 131mm |
Product Info
| Spg | 1 | Type | Bench |
| Series | HDO4000 | Function | Record, Recall, Save, Trend |
| Probe Type | Passive 10:1 (4) | Trigger Type | Auto |
| Display Style | LCD TFT 12,1" (1280x800) Touch Screen | Equipment Type | Digital Oscilloscopes |
| Channels per IC | 0 | Number of Units | 1 |
| Functions, Extra | Automated Search of Waveform Data | Programmable Features | Add |
| For Use With/Related Products | 1 Probes/channel | ||
