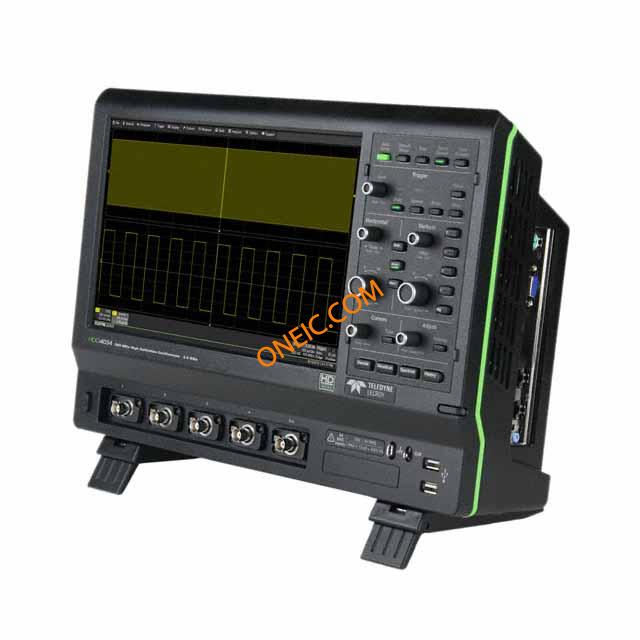

HDO4034
| Manufacturer | |
| Description | DGTL OSCOPE 12BIT 350MHZ 4CH Oscilloscope: digital; Band: ≤350MHz; Channels:4; 12,5Mpts/ch Oscilloscope 4x350 MHz 2.5 GS/s, HDO4034, Teledyne LeCroy |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| Part Status | 3 years | ||
Electrical
| Input | AC | Memory | 12500 |
| Channels | 4 | Frequency | ≤350MHz |
| Interface | Ethernet, USB | Memory Size | 25Mpts |
| Display Type | LCD - Color (Touch) | Input Signal | 1mV/div...10V/div, 1mV/div...1V/div (50 Ω) |
| Power - Input | 100...240VAC, 45...440Hz | Input Impedance | 1M - 15pF |
| Rise Time (Typ) | 1ns | Voltage - Supply | 100 ~ 240VAC |
| Resolution (Bits) | 12bit | Number of Channels | 4 |
| Frequency - Output 1 | 20p...10000s/gr. | Voltage - Input (Max) | 400V |
| Voltage - Input (Min) | 400V | Sampling Rate (Per Second) | 2.5G |
Mechanical
| Size | 399 x 131 x 291 mm | Weight | 5.86kg |
| Bandwidth | 350MHz | Package Quantity | 1 |
| Dimensions - Overall | 292 x 400 x 131mm | ||
Product Info
| Spg | 1 | Type | Bench |
| Series | HDO4000 | Function | Record, Recall, Save, Trend |
| Probe Type | Passive 10:1 (4) | Trigger Type | Auto |
| Display Style | LCD TFT 12,1" (1280x800) Touch Screen | Channels per IC | 0 |
| Number of Units | 1 | Functions, Extra | Automated Search of Waveform Data |
| Programmable Features | Add | For Use With/Related Products | 1 Probes/channel |
