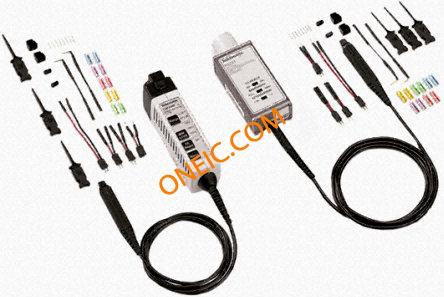

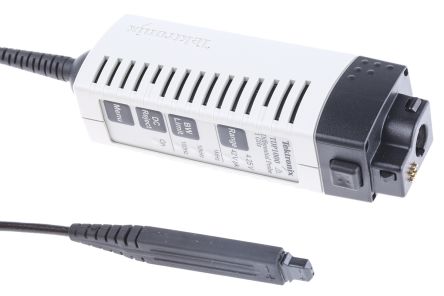

TDP1000
| Manufacturer | |
| Description | Test Probes Probe, Diff., 1.5GHz w/interface Differential probe 1GHz bandwidth VPI PROBE, DIFFERENTIAL, 1GHZ TekVPI,1GHz,42VDifferentialProbe Differential / High Voltage Probe 5:1 / 50:1 1000 MHz, TDP1000, Tektronix Tektronix TDP 系列 示波器探针 差分，高电压探头, 1GHz 50x, 5x 25 V ac, 35 V dc, 35 V Pk-Pk 350ps |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Test Probes | ||
Compliance
| RoHS | RoHS Compliant By Exemption | SVHC | :Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013) |
| Tariff No | 90303391 | ||
Electrical
| Accuracy | :2% | Interface | TekProbeBNCInterface |
| Voltage Rating | ±42V(DifferentialMode),±35V(CommonMode) | Rise Time (Typ) | 350ps |
| Attenuation - Typ | 50x, 5x | Resistance - Input | 1MΩ |
| Capacitance - Input | <1pF | Voltage - Input (Min) | 25 V ac, 35 V dc, 35 V Pk-Pk |
| Rise / Fall Time (Typ) | ≤350ps | ||
Mechanical
| Color | Black | Weight | 5.149998 oz |
| Bandwidth | 1 GHz to 500 MHz | Cable Length | 47.2in. |
| Size / Dimension | 4.2"(L)×1.2"(W)×1.6"(H) | ||
Product Info
| Type | Oscilloscope Probe | Series | TDP |
| Features | Provides automatic units scaling and readout on the oscilloscope display | Function | :Differential |
| Tip Style | Spear | Probe Type | Differential, High Voltage |
| Model Number | TDP1000 | Accessory Type | :1GHz High Voltage Differential Probe |
| Equipment Type | Differential Probes | For Use With/Related Products | :DPO3000, MSO3000, MDO4000, DPO4000, MSO4000 |
