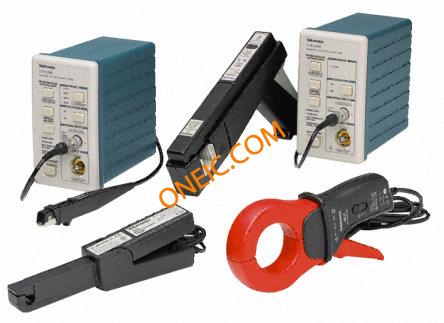

TCP404XL
| Manufacturer | |
| Description | Test Probes Probe, DC-2MHz 500A DC, 750A DC 2MHz 500A ac/dc current probe 3% at 0 ºC to 50 ºC Probe;500AContinuous;500Adc;1%ofReading(Typ.);315in.;2MHz Current Probe 500 A 2 MHz, TCP404XL, Tektronix Tektronix 电流探头和夹具 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Test Probes | ||
Compliance
| RoHS | RoHS Compliant By Exemption | SVHC | :Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013) |
| Tariff No | 90303100 | Safety Category | CAT I 600 V, CAT II 600 V, CAT III 300 V |
Electrical
| Current | :1A | Accuracy | ±1% |
| Load Current | :750A | Maximum Payload | 21 x 25mm |
| Rise Time (Typ) | :175ns | Current Rating (Max) | :750A |
| Voltage - Continuous Operating (Max) (MCOV) | :600V | ||
Mechanical
| Color | Black | Depth | :26.8cm |
| Width | :4.1cm | Length | :15.6cm |
| Weight | 2 lbs | Bandwidth | DC → 2 MHz |
| 1st Connector | :BNC Plug | 2nd Connector Type | :- |
| Length - Lead Wire | :8m | ||
Product Info
| Series | TCP | Function | Requires TCPA300 amplifier |
| Warranty | :1 year | Probe Type | AC/DC |
| Model Number | TCP404XL | Equipment Type | AC/DC Current Measurement System |
| For Use With/Related Products | :DPO2000, MSO2000, TPS2000, THS3000, TBS1000, TDS3000, TDS2000 | ||
Environmental
| Operating Temperature | :50°C | Probe Temperature Range | :- |
