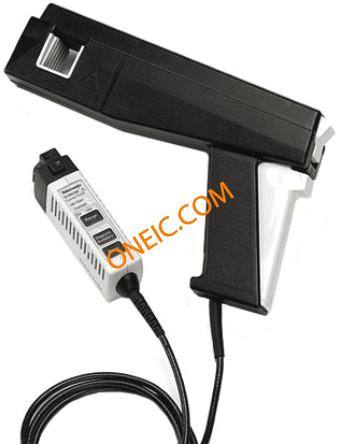

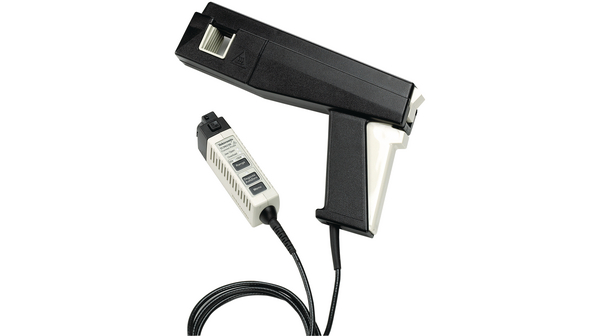

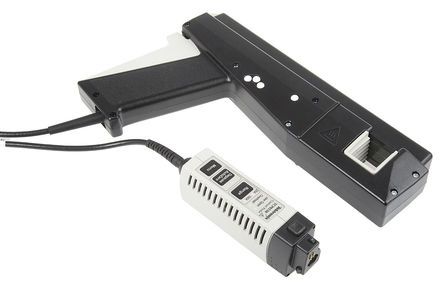

TCP0150
| Manufacturer | |
| Description | Test Probes Probe, DC-20MHz 150AC/DC current 150A AC/DC Current Probe, TekVPI PROBE, CURRENT, 150A CurrentProbe,150A,DCto20MHz Current Current Probe 150 A 20 MHz, TCP0150, Tektronix Tektronix 电流探头和夹具 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Test Probes | ||
Compliance
| RoHS | RoHS Compliant By Exemption | SVHC | :Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013) |
| Tariff No | 90303399 | Safety Category | CAT I 600 V, CAT II 600 V, CAT III 300 V |
Electrical
| Accuracy | ±1 % | Maximum Payload | 21 x 25mm |
| Rise / Fall Time (Typ) | ≤17.5ns | ||
Mechanical
| Color | Black | Weight | 1.36 |
| Bandwidth | DC → 20 MHz | Cable Length | 79in. |
| Size / Dimension | 10.5"(L)×1.6"(W)×6.1"(H) | Wire Gauge or Range - mm2 | 0.83in.×1.0in.Max. |
Product Info
| Series | TCP | Function | Requires TCPA300 amplifier |
| Probe Type | AC/DC | Model Number | TCP 0150 |
| Accessory Type | :150A AC/DC Current Probe | Equipment Type | AC/DC Current Measurement System |
| Measuring Range | 25Athough150A | For Use With/Related Products | :DPO2000, MSO2000, DPO3000, MSO3000, MDO4000, DPO4000, MSO4000 |
