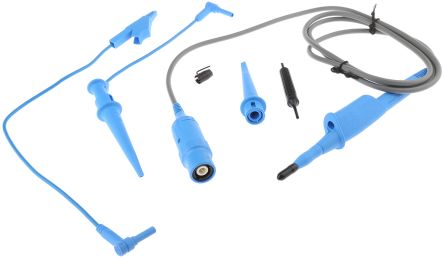

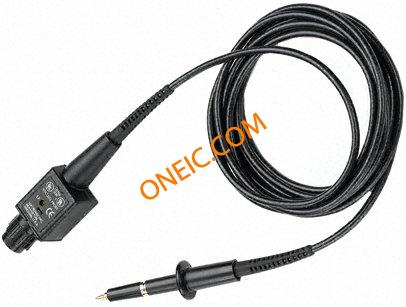

P5122
| Manufacturer | |
| Description | Test Probes HI-VLT PRB PASS 100X 200MHZ 1000V CATII 200MHz passive probe, 100x attenuation PROBE, HIGH VOLTAGE, 1,000V 200MHZ PassiveProbe,100X,200MHz High Voltage Probe 1000 V 100:1 200 MHz, P5122, Tektronix Tektronix TPS2000 系列 示波器探针 高电压，无源探头, 200MHz 100x 2.2ns, CAT II 1000 V ac, CAT II 600 V ac |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant By Exemption | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ESD Protection | CAT II 1000 V |
| Safety Category | CAT II 1000 V ac, CAT II 600 V ac | ||
Electrical
| Voltage Rating | 1 kV | Rise Time (Typ) | 2.2ns |
| Attenuation - Typ | 100x | Voltage - Continuous Operating (Max) (MCOV) | :600V |
Mechanical
| Length | 1.2 m | Weight | 0.9 |
| Bandwidth | 200 MHz | 1st Connector | :Alligator Clip |
| 2nd Connector Type | :Hook | Length - Lead Wire | :1.2m |
Product Info
| Type | Passive Probes | Series | TPS2000 |
| Function | Designed for TPS2000 and THS3000 Series oscilloscopes | Probe Type | High Voltage, Passive |
| Model Number | P5122 | Equipment Type | Oscilloscopes |
| For Use With/Related Products | :TPS2000, THS3000 | ||
Environmental
| Probe Temperature Range | :- | ||
