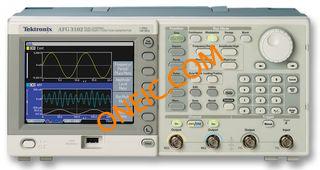

AFG3101
| Manufacturer | |
| Description | AFG3101, 1 channel, 100MHz FUNCTION GENERATOR, ARBITRARY Generator;2MHzto50.00kHz;120W |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013) | Tariff No | 85432000 |
Electrical
| Memory | 16Kpts | Output | 10V Pk-Pk |
| Accuracy | ±1ppm | Frequency | Yes |
| Impedance | 50Ω | Interface | GPIB, LAN, USB |
| Modulation | Yes | Power - Max | 120W |
| Modulator Type | :Arbitrary, Function | Frequency Range | 100MHz |
| Input Impedance | 10 kΩ | Voltage - Supply | :100V to 240V |
| Number of Channels | 1 | Frequency - Output 1 | 2MHzto50.00kHz |
| Rise / Fall Time (Typ) | 1ns | Amplitude (Level) Range | Yes |
| Sampling Rate (Per Second) | 1GS/s | Switch Time (Ton, Toff) (Max) | 5ns |
Mechanical
| Depth | :168mm | Width | 329.6mm |
| Height | 156.3mm | Length | 168mm |
| Weight | 4.5kg | Bandwidth | :100MHz |
| Height (Max) | :156.3mm | Size / Dimension | 168 x 329.6 x 156.3mm |
Product Info
| Type | Function/Arb.Waveform | Series | :AFG3000 |
| Function | Sine,Square,Triangle,Pulse,Ramp,DC,Noise,sin(x)/x,Exponential,Gaussian,Lorentz,Haversine,Arb. | Plug Type | :Euro, UK |
| Manufacturer | AFG3000Series | Model Number | AFG3101 |
| Configuration | Bench | Display Style | 5.6"ColorLCD |
| Variation Suffix | Yes | Connection Method | LAN,USB,GPIB |
| Internal Switch(s) | Yes | Application Specifics | Electronictestanddesign,sensorsimulation,functionaltest,educationandtraining. |
Environmental
| Operate Range | :1Hz to 50MHz lin/log | Operating Temperature | +50°C |
