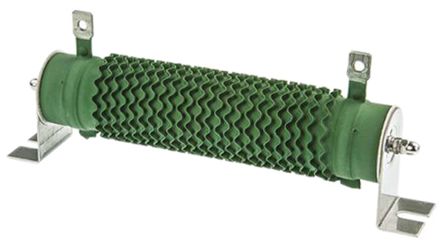

TE200B22RJ
| Manufacturer | |
| Description | Wirewound Resistors - Chassis Mount TE 200W 22R 5% Bracket 22Ω ±5% 200W TE Connectivity Solder Lug Wire-wound Panel Mount Resistor Wirewound Resistors TE 200W 22R 5% Bracket RESISTOR, 200W, 22R, 5% Highpowerwirewoundresistor22R200W TE Connectivity TE 系列 22Ω ±5% 200W 绕线 面板安装电阻器, 焊片接端 TE 200W 22R 5% Bracket |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Power Resistors Wirewound Lug Termination | Part # Aliases | 1-1879447-7 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85332100 |
Electrical
| Tolerance | 5 % | Resistance | 22 Ohms |
| Range deg/s | :TE CONNECTIVITY - TE Series | Power - Rated | 200 W |
| Resistance Tolerance | :± 5% | Resistor - Base (R1) | :Solder Lug |
Mechanical
| Depth | :40mm | Width | :239mm |
| Length | :81mm | Weight | 0.52 |
| Diameter | 40 mm | Base Type | :Panel |
| Number of Pins | :2 | Package / Case | 195 mm |
| Length - Overall | :195mm | Size / Dimension | 40 mm Dia. x 195 mm L |
| Termination Style | Solder Lug | Diameter - Outside | :40mm |
| Resistive Material | :Wirewound | ||
Product Info
| Type | High Power Wirewound Resistors | Series | TE |
| Technology | Wire Wound | ||
Environmental
| Operating Temperature | - 25 C to + 225 C | Temperature Coefficient | 440 PPM / C |
| Temperature Coefficient (Typ) | -440ppm/°C | ||
