7-1393116-1
| Manufacturer | |
| Description | RELAY GEN PURPOSE DPDT 15A 12V Electromechanical Relay DPDT 15A 12VDC 120Ohm Plain Case Electromechanical Relay DPDT 15A 12VDC 120Ohm Plain Case Product Highlights:KUMP SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode |
| Category |
Business
| Standard Package | 25 | ||
Electrical
| Coil Type | Non Latching | Coil Power | 1.2 W |
| Coil Current | 100mA | Release Time | 10ms |
| Coil Resistance | 120 Ohms | Voltage - Supply | 12VDC |
| Switching Voltage | 277VAC - Max | Vce(on) (Max) @ Vge, Ic | 9 VDC |
| Contact Rating (Current) | 15A | ||
Mechanical
| Packaging | Bulk | Contact Form | DPDT (2 Form C) |
| Mounting Type | Socketable | Contact Material | Silver Cadmium Oxide (AgCdO) |
| Termination Style | Plug In, QC - 0.187" (4.7mm) | ||
Product Info
| Features | Insulation - Class B | Relay Type | General Purpose |
Environmental
| Operate Time | 15ms | Operating Temperature | -45°C ~ 70°C |
Similar Parts
2-1419106-5
te connectivity / p&b
Conn Relay Socket SKT 11 POS Screw ST Panel Mount 27E893 SOCKET RELAY DIN RAIL MNT KU Conn Relay Socket SKT 11 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = ScrewWithout Grounding ProvisionSearch Keywords:relay connectors

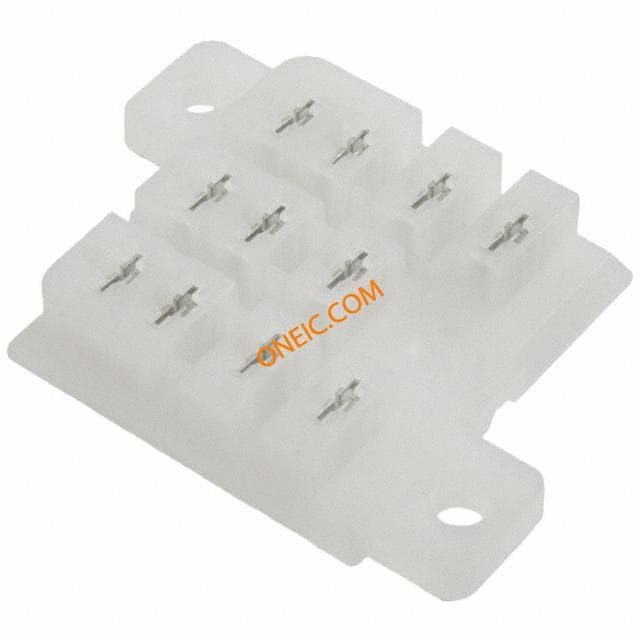

27E305
te connectivity / p&b
Conn Relay Socket SKT 11 POS Solder ST Thru-Hole Relay Sockets & Hardware SOCKET NYL FOR KU SER PCB SOCKET NYL FOR KU SER PCB Conn Relay Socket SKT 11 POS Solder ST Thru-Hole Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = PCTerminal Length = 4.67 mm 27E305=SOCKET,KU,11,PC,NYL,N
27E121
TE Connectivity / P&B
Relay Sockets & Hardware SCRW TERM KUP SOCKET RELAY SCREW TERM KU Conn Relay Socket SKT 3 POS Screw ST Panel Mount Conn Relay Socket SKT 3 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = ScrewWithout Grounding Provision RELAY SOCKET Socket,Relay;ScrewTerm;1-3Pole;RoHSCompliant,ELVCompliant 27E121=SOCKET,KUP,11,SCW,PLE

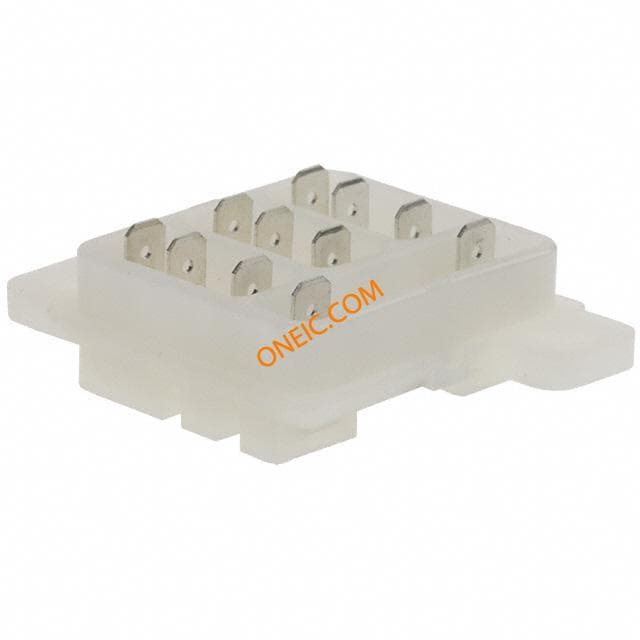

27E067
TE Connectivity / P&B
Relay Sockets & Hardware 11P QC SOCKET SOCKET SP-3P KU SERIES Conn Relay Socket SKT 3 POS Solder ST Panel Mount Conn Relay Socket SKT 3 POS Solder ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = 4.75 [.187] Quick-ConnectWithout Grounding Provision Socket,Relay;QuickConnect;1to3;PotterandBrumfieldBrand 27E067=SOCKET,KU,11,QC.187,NY
27E396
TE Connectivity / P&B
Relay Sockets & Hardware 1-3 POLE QC SOCKET SOCKET RELAY 1-3 POLES QC Socket,Relay,QuickConnect,1to3 Conn Relay Socket SKT 3 POS Screw ST Panel Mount Conn Relay Socket SKT 3 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = 4.75 [.187] Quick-ConnectWithout Grounding Provision RELAY SOCKET Socket,Relay;QuickConnect;1to3;PotterandBrumfieldBrand 27E396=SOCKETS
27E043
te connectivity / p&b
Conn Relay Socket SKT 3 POS Solder ST Panel Mount Relay Sockets & Hardware 11P PCB SOCKET SOCKET SOLDER FOR KU RELAYS Conn Relay Socket SKT 3 POS Solder ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = SolderWithout Grounding Provision RELAY SOCKET Socket,Relay;Solder;1to3;PotterandBrumfieldBrand 27E043=SOCKET,KU,11,SLG,NYL,N
27E046
te connectivity / p&b
Conn Relay Socket SKT 11 POS 11.1mm Solder ST Thru-Hole Relay Sockets & Hardware HARD MOUNT SOCKET PCB SOCKET PCB TERMINAL KU SERIES Conn Relay Socket SKT 11 POS 11.1mm Solder ST Thru-Hole Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = PCTerminal Length = 3.66 mm RELAY SOCKET Socket,Relay;PC;1to3;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E046=SOCKET,KU,11,PC,NYL,NAT
