5-2232266-5
| Manufacturer | |
| Description | Headers & Wire Housings 2x5 plug dgr housing Key A CONN PLUG HOUSING 10POS 6MM PTL 2X5 PLUG HSG GLW WIRE KEY A DGR |
| Category |
Business
| Other Names | A118809 | Standard Package | 1,100 |
Compliance
| RoHS | No | UL Rating | 获得认可 |
| Part Status | E28476 | Standard Number | UL, VDE |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 600 VAC, 600 VDC | Voltage - Supply | 600 |
| Frequency - Center | 带有 | Connector Impedance | 压接 |
| Current Rating (Max) | 20 A | ||
Mechanical
| Color | Gray | Pitch | 6 mm |
| Packaging | Bulk | Body Color | 灰色 |
| Row Spacing | 8.1 mm | Contact Type | Female Blade Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug |
| Contact Finish | Tin | Fastening Type | Latch Holder |
| Mounting Style | Panel | Number of Pins | 10 |
| Number of Rows | 2 | Shell Material | 插头 |
| Contact Material | Copper Alloy | Housing Material | Polybutylene Terephthalate (PBT) |
| Panel Mount Type | 不带 | Termination Style | 母端 |
| Number of Contacts | 10 | Contact Termination | Crimp |
| Number of Positions | 10 | Compatible Shell Size | CPA, 母端外壳, 母端（插座）端子, 端子锁定片 |
| Contact Layout, Typical | 矩阵 | ||
Product Info
| Note | Contacts Not Provided | Series | Power Triple Lock |
| Key Type | A | Product Type | Wire Housings |
| Output Configuration | 直式 | Application Specifics | Wire-to-Board |
Environmental
| Operating Range | 不密封 | Temperature - Test | 根据 IEC 60335-1 版本 06/2001 为 GWT 750°C（无火焰） |
| Operating Temperature | - 55 C to + 105 C | ||
Documents & Media
Similar Parts
1971783-1
TE Connectivity
CONN CONT RCPT 20-16AWG Triple Lock receptacle Contact 16-20 AWG Headers & Wire Housings 16-20 AWG PhsBr Rcpt Contact Terminal 1971783-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 20-16AWG, CRIMP CONTACT, SOCKET, 20-16 AWG, CRIMP Contact;Socket;Crimp;20-16AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 12 A, 16...20 AWG, 1971783-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 16-19 AWG, 2X22
1971785-1
TE Connectivity
CONN CONT RCPT 22AWG Headers & Wire Housings 22 AWG PhosBr Rcpt Contact Terminal 1971785-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 22AWG, CRIMP CONTACT, SOCKET, 22 AWG, CRIMP Contact;Socket;Crimp;22AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 5 A, 22 AWG, 1971785-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG
1971781-1
TE Connectivity
CONN CONT RCPT 14AWG Triple Lock receptacle Contact 14 AWG 1971781-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 14AWG, CRIMP CONTACT, SOCKET, 14 AWG, CRIMP Contact;Socket;Crimp;14AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 12 A, 14 AWG, 1971781-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 14 AWG
1971779-1
TE Connectivity
CONN CONT RCPT 12AWG Triple Lock receptacle Contact 12 AWG Headers & Wire Housings 12 AWG C Iron Rctp Contact Terminal 1971779-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 12AWG, CRIMP CONTACT, SOCKET, 12 AWG, CRIMP Contact;Socket;Crimp;12AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 20 A, 12 AWG, 1971779-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 12 AWG
1971237-1
TE Connectivity/AMP Brand
Receptacle contact, 2X20 Awg Headers & Wire Housings 2X20 Awg Receptacle contact RECEPTACLE CONTACT, 2X20 AWG Crimp contact, 6 A, 20 AWG, 1971237-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 2X20 AWG
1971779-2
TE Connectivity/AMP Brand
Receptacle contact, 12 Awg Headers & Wire Housings 12 Awg Receptacle contact RECEPTACLE CONTACT, 12 AWG Power Triple Lock Tin Plated 12 AWG Crimp Socket Receptacle Contact Crimp contact, 20 A, 12 AWG, 1971779-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 12 AWG
1971781-2
TE Connectivity/AMP Brand
Receptacle contact, 14 Awg Headers & Wire Housings 14 Awg Receptacle contact RECEPTACLE CONTACT, 14 AWG Power Triple Lock Tin Plated 14 AWG Crimp Socket Receptacle Crimp contact, 15 A, 14 AWG, 1971781-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 14 AWG
1971783-2
TE Connectivity/AMP Brand
Receptacle contact, 16 20 Awg Headers & Wire Housings 16 20 Awg Receptacle contact RECEPTACLE CONTACT, 16 20 AWG Power Triple Lock Tin Plated 16 - 20 AWG Crimp Socket Receptacle Crimp contact, 15 A, 16...20 AWG, 1971783-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 16-19 AWG, 2X22
1971785-2
TE Connectivity/AMP Brand
Receptacle contact, 22 Awg Headers & Wire Housings 22 Awg Receptacle contact RECEPTACLE CONTACT 22 AWG Power Triple Lock Tin Plated 20 - 22 AWG Crimp Socket Receptacle Crimp contact, 5 A, 22 AWG, 1971785-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG
1971787-1
TE Connectivity/AMP Brand
Receptacle contact, 2X18 Awg Headers & Wire Housings 2X18 Awg Receptacle contact RECEPTACLE CONTACT, 2X18 AWG Crimp contact, 8 A, 18 AWG, 1971787-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 2X18 AWG
5-2232264-5
TE Connectivity

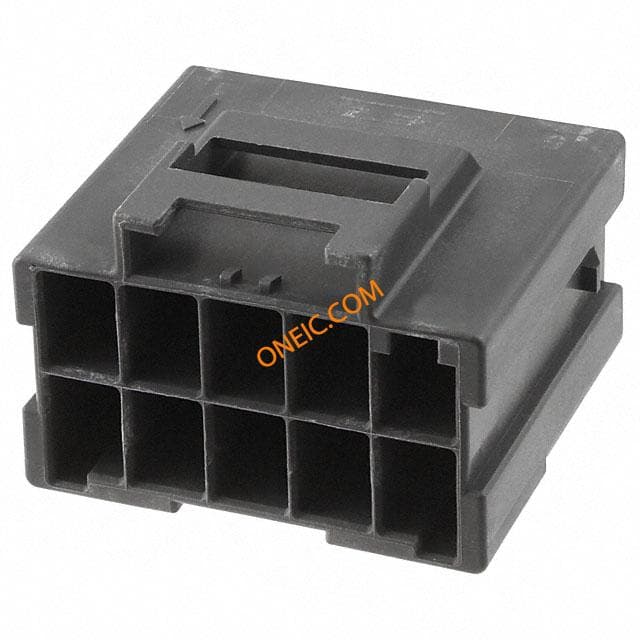

Headers & Wire Housings 2x5 cap housing dgr panel mount Key A CONN RCPT HOUSING 10POS 6MM PTL 2X5 CAP PANEL MT GLW WIRE KEY A DGR
