5-1971776-6
| Manufacturer | |
| Description | Headers & Wire Housings 2x6 plug housing lgr Key A CONN PLUG HOUSING 12POS 6MM PTL 2X6 PLUG HSG HIGH TEMP KEY A LGR |
| Category |
Business
| Other Names | A118812 | Standard Package | 1,000 |
Compliance
| RoHS | RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Standard Number | UL |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 600 VAC, 600 VDC | Voltage - Supply | 600 |
| Frequency - Center | 带有 | Connector Impedance | 压接 |
| Current Rating (Max) | 20 A | ||
Mechanical
| Color | Natural | Pitch | 6 mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 灰色 | Row Spacing | 8.1 mm |
| Contact Type | Female Blade Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug | Contact Finish | Tin |
| Fastening Type | Latch Holder | Mounting Style | Panel |
| Number of Pins | 12 | Number of Rows | 2 |
| Package / Case | Plug | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Panel Mount Type | 不带 |
| Termination Style | 母端 | Number of Contacts | 12 |
| Contact Termination | Crimp | Number of Positions | 12 |
| Compatible Shell Size | CPA, 母端外壳, 母端（插座）端子, 端子锁定片 | Contact Layout, Typical | 矩阵 |
Product Info
| Note | Contacts Not Provided | Series | Power Triple Lock |
| Key Type | A | Product Type | Wire Housings |
| Output Configuration | 直式 | Application Specifics | Wire-to-Board |
Environmental
| Temperature - Test | 高温部件 - 非灼热丝 | Operating Temperature | - 55 C to + 150 C |
Documents & Media
Similar Parts
1971785-1
TE Connectivity
CONN CONT RCPT 22AWG Headers & Wire Housings 22 AWG PhosBr Rcpt Contact Terminal 1971785-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 22AWG, CRIMP CONTACT, SOCKET, 22 AWG, CRIMP Contact;Socket;Crimp;22AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 5 A, 22 AWG, 1971785-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG
1971785-2
TE Connectivity/AMP Brand
Receptacle contact, 22 Awg Headers & Wire Housings 22 Awg Receptacle contact RECEPTACLE CONTACT 22 AWG Power Triple Lock Tin Plated 20 - 22 AWG Crimp Socket Receptacle Crimp contact, 5 A, 22 AWG, 1971785-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG
1971789-1
TE Connectivity/AMP Brand
CPA ConnectorPositionAssurance(CPA);PowerTripleLockAccessory;600VAC/600VDC; Connector locking, 7.6 mm, red, 1971789-1, TE Connectivity

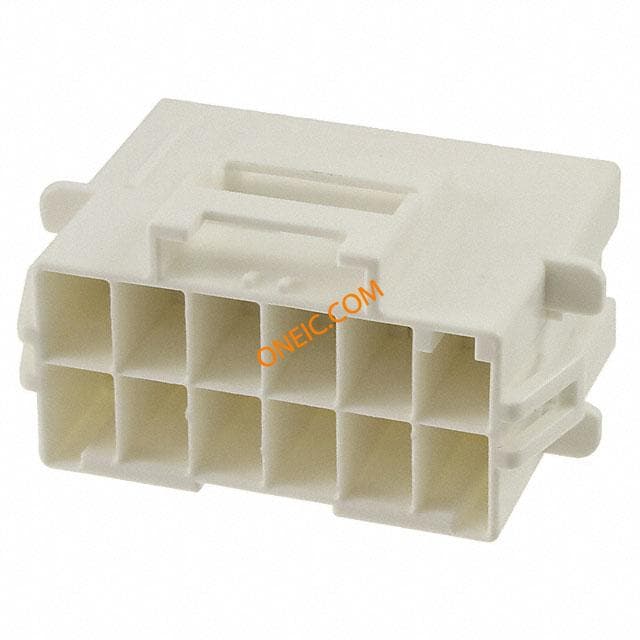

1-1971775-6
TE Connectivity
Headers & Wire Housings 2x6 cap housing panel mt Key A nat 2X6 CAP HOUSING PANEL MOUNT KEY Female Housing Pitch6 mm Poles 2 x 6 Multi row / for panel mount Power Triple Lock, 1-1971775-6, TE Connectivity PTL 2X6 CAP PANEL MT STD TEMP KEY A NAT

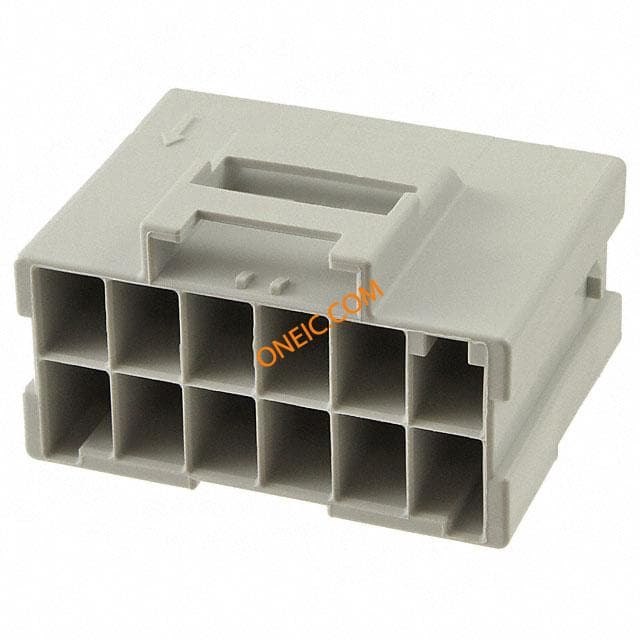

5-1971774-6
TE Connectivity
Headers & Wire Housings 2x6 cap housing lgr free hanging Key A CONN RCPT HOUSING 12POS 6MM PTL 2X6 CAP FREE HANG HITEMP KEY A LGR

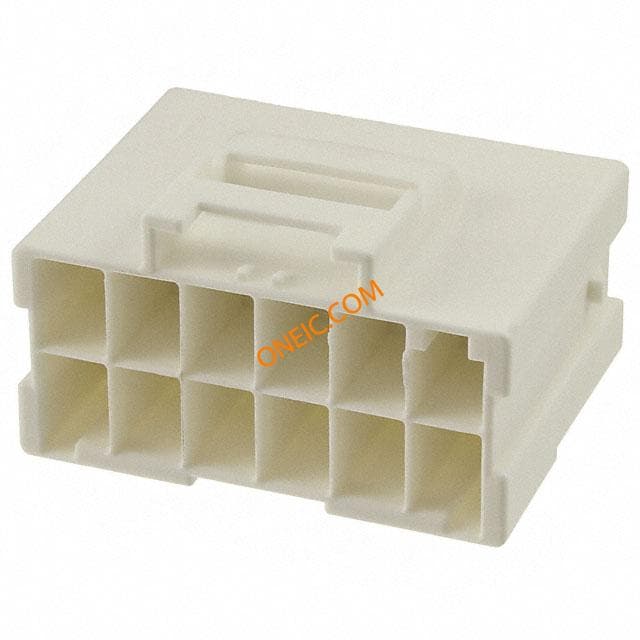

1-1971774-6
TE Connectivity
Headers & Wire Housings 2x6 cap housing Key A free hang nat 2X6 CAP HOUSING FREE HANGING KEY Female Housing Pitch6 mm Poles 2 x 6 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971774-6, TE Connectivity PTL 2X6 CAP FREE HANG STD TEMP KEY A NAT

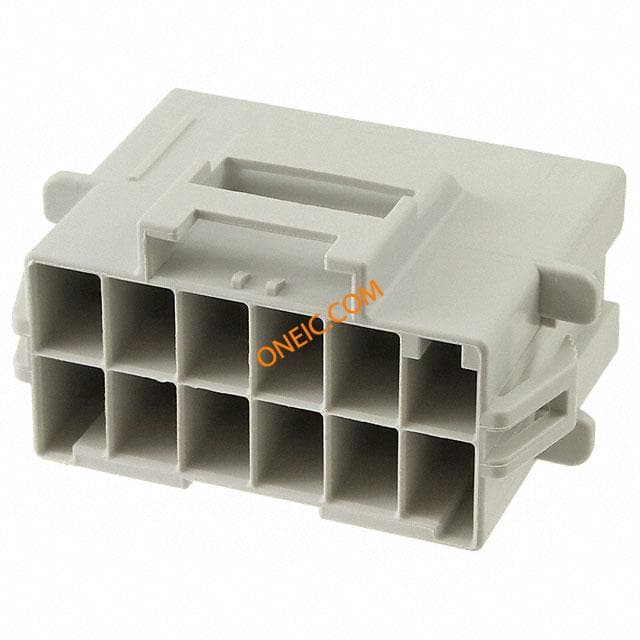

5-1971775-6
