2-1926739-5
| Manufacturer | |

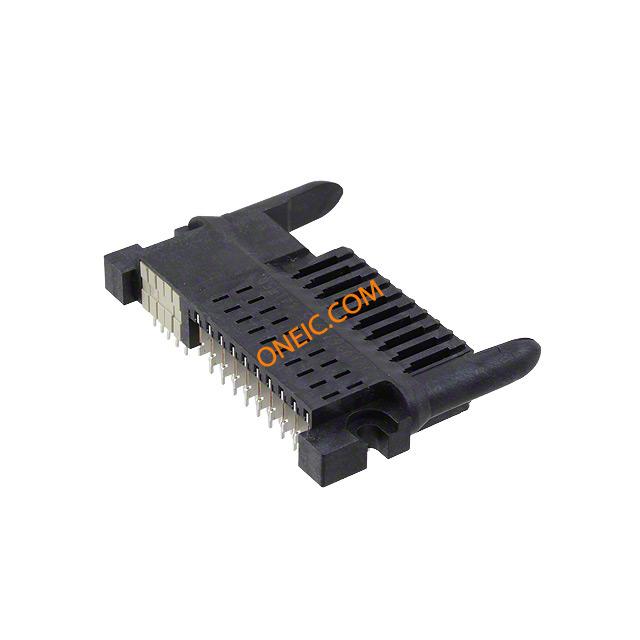

| Description | ASSYMINIPAK HDL25S10PRARECPTSC 35 Positions 2 mm Pitch Right Angle Through Hole Minipak Assembly AssyMinipak Hdl25s10pRARecptSc |
| Category |
Business
| Other Names | A110847 | Standard Pack | 24 |
| Standard Package | 24 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Standard Number | CSA |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 已认证 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage - Supply | 250 | Current Rating (Max) | 17 |
| Connector - Voltage Input | 单梁 | ||
Mechanical
| Color | Black | Pitch | 0.079" (2.00mm) |
| Width | 36.5 mm [ 1.437 in ] | Height | 8 mm [ .315 in ] |
| Length | 51.74 mm [ 2.037 in ] | Packaging | Tray |
| Body Color | 黑色 | Termination | Press-Fit |
| Pitch - Post | .079, .108 | Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets and Blade Sockets | Contact Finish | 带有 |
| Mounting Style | 带有 | Number of Pins | 10 |
| Number of Rows | 5 | Shell Material | 母端, 母端 |
| Insert Material | 铜 | Housing Material | 热塑性 |
| Material - Frame | 镍 | Mounting Feature | 螺钉安装 |
| Panel Mount Type | 通孔 - 免焊连接, 通孔 - 免焊连接, 通孔 - 焊接 | Termination Style | 插座 |
| Number of Contacts | 25 | Number of Positions | 35 |
| Compatible Shell Size | 共面 | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 25 Signal, 10 Power |
| Termination Post Length | 3.3 mm [ .13 in ] | Contact Finish Thickness | .5 µm [ 20 µin ] |
| Number of Positions/Bay/Row | All | Jacket (Insulation) Thickness | 1.27 µm [ 50 µin ] |
| 1st Connector Mounting Feature | 是 | ||
Product Info
| Features | Mating Guide | Main Purpose | Mating Guide |
| Product Type | 母端 | Output Configuration | Through Hole, Right Angle |
| Application Specifics | Power, Signal | Number of Positions Loaded | All |
Environmental
| Operating Range | 不密封 | Operating Temperature | -40 – 125 °C [ -40 – 257 °F ] |
| Thermal Resistance of Package | .055 mm [ 1.4 in ] | ||
Similar Parts

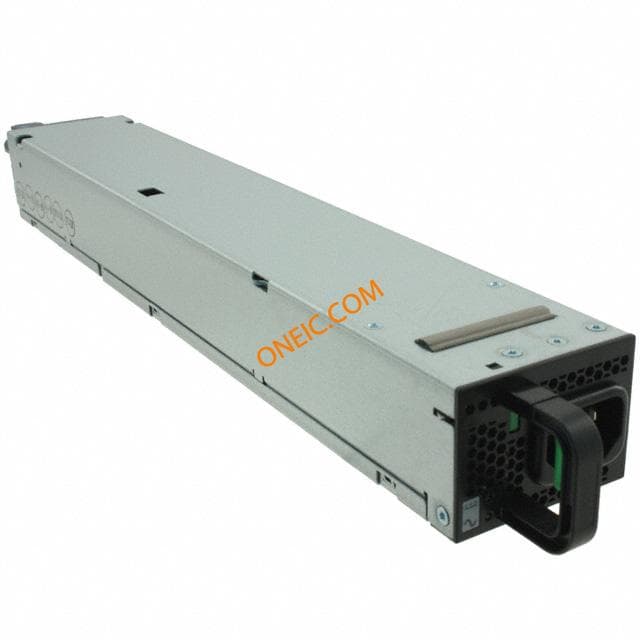

PFE850-12-054NA
power-one

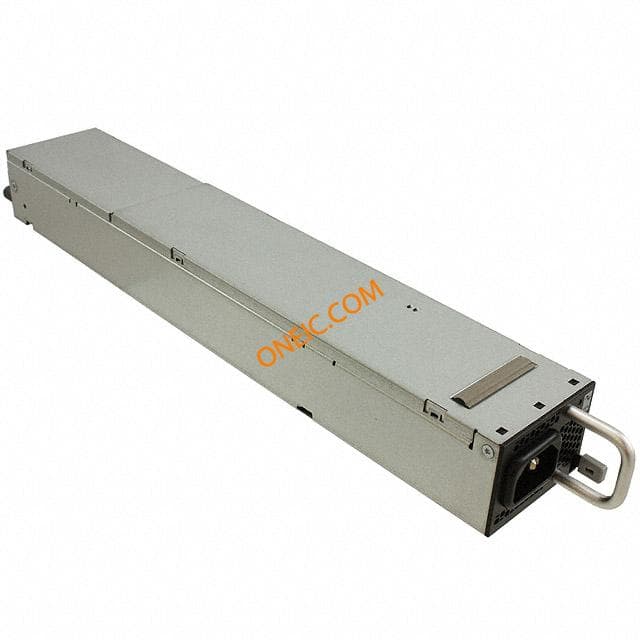

AC/DC Power Supply Single-OUT 12V 70A 840W FRONT END AC/DC 850W W/ PFC Linear and Switching Power Supplies 90-264VAC 850W 12V 80+CERTIFIED/PLATNUM PowerSupply;AC-DC;12V@70A;90-264VIn;Enclosed;CageMnt;FrountEnd;PFC;PFESeries
