1825100-4
| Manufacturer | |
| Description | Pushbutton Switches Pushbutton switch,PCB,SPST,r/angle mount Switch Push Button N.O. SPST Round Plunger 20VAC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Loose Piece Switch Push Button N.O. SPST Round Plunger 20VAC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Loose Piece Product Highlights:Switch - MechanicalNot TactileSingle Pole - Single Throw Configuration (Pole-Throw)Contact Rating = 0.4VAOperating Function = Normally Open, MomentarySearch Keywords:NIC, Network Interface Cards, PC Cards, Lighting Interconnection Products, SWITCH PUSH SPST-NO 0.4VA 20V TE Connectivity 黑色 单刀单掷 - 常开 PCB 瞬间 微型按钮开关, 0.4 A@ 20 V TPF11CGRA004 |
| Category |
Business
| Standard Package | 25 | ||
Compliance
| RoHS | Compliant | ESD Protection | Without |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Circuit | SPST-NO | Voltage Rating | 20V |
| Switch Function | No | Number of Elements | Single |
| Voltage - Rated DC | 20 | Current Rating (Max) | 0.4VA (AC/DC) |
| Switch Function/Rating | Momentary | Contact Rating (Current) | 0.4 VA @ 20 V dc |
| Contact Rating @ Voltage | 0.4VA | ||
Mechanical
| Width | 3.35 mm [ .132 in ] | Height | No |
| Sealed | No | Packaging | Bulk |
| Termination | Printed Circuit | Thread Size | 1/4-40 UNS-2A |
| Actuator Type | Without | Mounting Type | Right Angle |
| Terminal Type | Through Hole | Actuator Color | Black |
| Connector Type | 通孔 | Contact Finish | Gold over Nickel |
| Mounting Style | Through-Hole | Actuation Force | 50.00 â 400.00 [1.770 â 14.120] |
| Actuator Length | 4.01 [0.158] | Insert Material | 铜合金 |
| Contact Material | Gold Plated Nickel | Housing Material | 聚酯 |
| Package Quantity | Loose Piece | Actuator Material | Polyamide |
| Termination Style | PC Pin | Panel Cutout Shape | 6.5 (Diameter) |
| Actuator Style/Size | Extended | Conduit Thread Size | 1/4-40 |
| Shell Size - Insert | 螺纹 | Color - Actuator/Cap | Black |
| Diameter - Barrel ID | 1/4-40 | Bushing, Grommet Type | Threaded |
| Terminal Screw Finish | 镍镀金 | Contact Layout, Typical | SPST-NO |
| Panel Cutout Dimensions | Circular - 6.35mm Dia | Material - Housing & Prism | Polyester |
Product Info
| Note | No center terminal | Type | Standard |
| Series | TPF | Function | Normally Open, Momentary |
| Switch Type | 按钮 | Illumination | No |
| Manufacturer | Alcoswitch | Product Type | Switch - Mechanical |
| Card Standard | Pushbutton Switch | Configuration | Single Pole - Single Throw |
| Electrical Life | 100,000 Cycles | Number of Gangs | No |
Environmental
| Ingress Protection | No | Temperature Rating | High |
| Operating Temperature | +65°C | ||
Similar Parts
1825604-1
te connectivity / amp
Switch Access Push Button Switch Boot Seal Toggle, Pushbutton and Rocker Switches Switch Access Push Button Switch Boot Seal Search Keywords:Switches, Knobs, PCB, BOOTSEAL PB 1/4-40 BLACK BPA1440004=Boot,Pushbutton
1825599-3
te connectivity / amp
Switch Access Push Button Switch Seal Adapter Loose Piece Pushbutton Switches Switch Access Push Button Switch Seal Adapter Loose Piece Product Highlights:AccessoryNot TactileLoose PieceNot IlluminatedAccessory Type = Seal AdapterSearch Keywords:NIC, Network Interface Cards, PC Cards, Lighting Interconnection Products, SEAL PANEL TINY TPF SERIES BLACK BPT1532004=Boot,Pushbutton
1825610-1
te connectivity / amp
BP1440004=BOOT, PUSHBUTTON Toggle, Pushbutton and Rocker Switches BP1440004=Boot, Pushbutton BP1440004=Boot, Pushbutton Search Keywords:Switches, Knobs, PCB, BOOTSEAL MPA3/MPS/MSPM TP BLACK Accessory Black 1/4-40 Thread Size Pushbutton Switch Boot Seal
1825617-2
te connectivity / amp
Switch Access Push Button Switch Boot Seal Toggle, Pushbutton and Rocker Switches Switch Access Push Button Switch Boot Seal Search Keywords:Switches, Knobs, PCB, BTSEAL BLK 1/4-40 MSPM/P3/A3/TP BP201004=Boot,Pushbutton

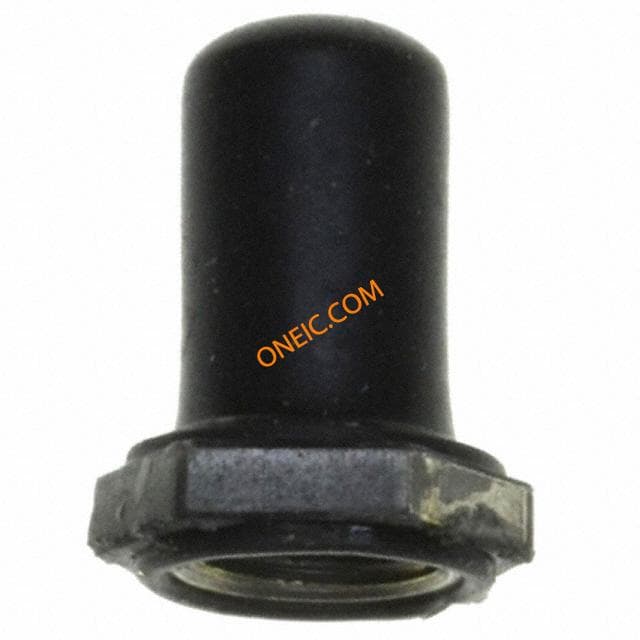

1231/31
