1213504
| Manufacturer | |
| Description | CONN 2MM HM RCPT 110POS R/A GOLD |
| Category |
Business
| Standard Package | 11 | ||
Electrical
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
Mechanical
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Termination | Press-Fit | Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Number of Rows | 5 | Connector Style | A 22 |
| Connector Usage | CompactPCI J1/J4 | Number of Positions | 110 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Features | Upper Shield | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts

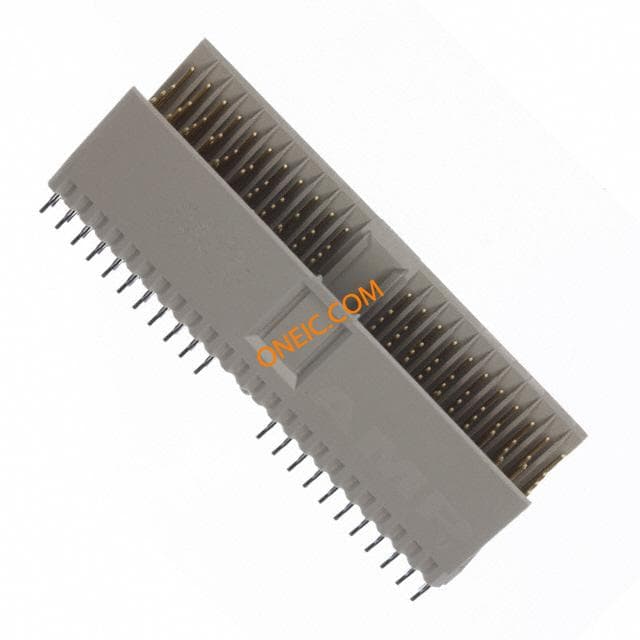

352332-1
