1-1971876-4
| Manufacturer | |
| Description | CONN HOUSING PLUG 12POS 6MM Headers & Wire Housings 3 x 4 PBT-A Plug Hsg 1-1971876-4 Conn Housing PL 12 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, PLUG, 12POS, 3ROW, 6MM CONNECTOR, HOUSING, PLUG, 12 WAY, PBT Conn;Rect;Plug;12Pos;3Row;PowerTripleLock;W-to-W;3X4;PBT;KeyA Male Housing Pitch6 mm Poles 3 x 4 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971876-4, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 12 路 直 公 电缆安装 压接连接器外壳 PTL 3X4 PLUG HSG STD TEMP KEY A NAT |
| Category |
Business
| Other Names | A115803 | Standard Package | 1,000 |
Compliance
| RoHS | RoHS Compliant | Standards | RoHS/ELV |
| Tariff No | 85369010 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600 V | Switch Function | Latched |
| Current Rating (Max) | 20 A | Voltage - Continuous Operating (Max) (MCOV) | 600VAC/VDC |
Mechanical
| Color | Natural | Pitch | 0.236" (6.00mm) |
| Weight | 0 | Packaging | Bulk |
| Wire Gauge | 20-12 | Row Spacing | 0.319" (8.10mm) |
| Contact Type | Female Socket | Housing Color | Natural |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug |
| Fastening Type | Latch Holder | Number of Rows | 3 |
| Housing Material | Polybutylene Terephthalate (PBT) | Primary Material | Rectangular |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | Center Contact Finish | 6.00(0.236) |
| Contact Layout, Typical | Matrix | ||
Product Info
| Note | Contacts Not Provided | Type | PlugHousing |
| Series | Power Triple Lock | Key Type | A |
| Manufacturer | PowerTripleLock | Product Type | Plugs - Housings |
| Application Specifics | Wire-to-Wire | For Use With/Related Products | :1971237, 1971779, 1971781, 1971783, 1971785, 1971787 Receptacle Contacts |
Environmental
| Operating Temperature | - 55 C to + 105 C | ||
Similar Parts
1-1971874-4
TE Connectivity
CONN RCPT HOUSING 12POS 6MM Headers & Wire Housings 3 x 4 PBT-A Cap Hsg Free Hanging 1-1971874-4 Conn Housing RCP 12 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, RCPT, 12POS, 3ROW, 6MM CONNECTOR, HOUSING, RCPT, 12 WAY, PBT Conn;Rect;Recept;12Pos;3Row;PowerTripleLock;W-to-W;3X4;PBT;KeyA Female Housing Pitch6 mm Poles 3 x 4 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971874-4, TE Connectivity PTL 3X4 CAP FREE HANG STD TEMP KEY A NAT
1-1971875-4
TE Connectivity
CONN RCPT HOUSING 12POS 6MM Headers & Wire Housings 3 x 4 PBT-A Cap Hsg Panel Mount 1-1971875-4 Conn Housing RCP 12 POS 6mm ST Panel Mount CONNECTOR, HOUSING, RCPT, 12POS, 3ROW, 6MM CONNECTOR, HOUSING, RCPT, 12 WAY, PBT Conn;Rect;Recept;12Pos;3Row;PowerTripleLock;PanelMnt;3X4;PBT;KeyA Female Housing Pitch6 mm Poles 3 x 4 Multi row / for panel mount Power Triple Lock, 1-1971875-4, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 12 路 直 母 面板安装 压接连接器外壳 PTL 3X4 CAP PANEL MT STD TEMP KEY A NAT
1971783-1
TE Connectivity
CONN CONT RCPT 20-16AWG Triple Lock receptacle Contact 16-20 AWG Headers & Wire Housings 16-20 AWG PhsBr Rcpt Contact Terminal 1971783-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 20-16AWG, CRIMP CONTACT, SOCKET, 20-16 AWG, CRIMP Contact;Socket;Crimp;20-16AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 12 A, 16...20 AWG, 1971783-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 16-19 AWG, 2X22
1971785-1
TE Connectivity
CONN CONT RCPT 22AWG Headers & Wire Housings 22 AWG PhosBr Rcpt Contact Terminal 1971785-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 22AWG, CRIMP CONTACT, SOCKET, 22 AWG, CRIMP Contact;Socket;Crimp;22AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 5 A, 22 AWG, 1971785-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG
1971781-1
TE Connectivity
CONN CONT RCPT 14AWG Triple Lock receptacle Contact 14 AWG 1971781-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 14AWG, CRIMP CONTACT, SOCKET, 14 AWG, CRIMP Contact;Socket;Crimp;14AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 12 A, 14 AWG, 1971781-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 14 AWG
1971779-1
TE Connectivity
CONN CONT RCPT 12AWG Triple Lock receptacle Contact 12 AWG Headers & Wire Housings 12 AWG C Iron Rctp Contact Terminal 1971779-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 12AWG, CRIMP CONTACT, SOCKET, 12 AWG, CRIMP Contact;Socket;Crimp;12AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 20 A, 12 AWG, 1971779-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 12 AWG

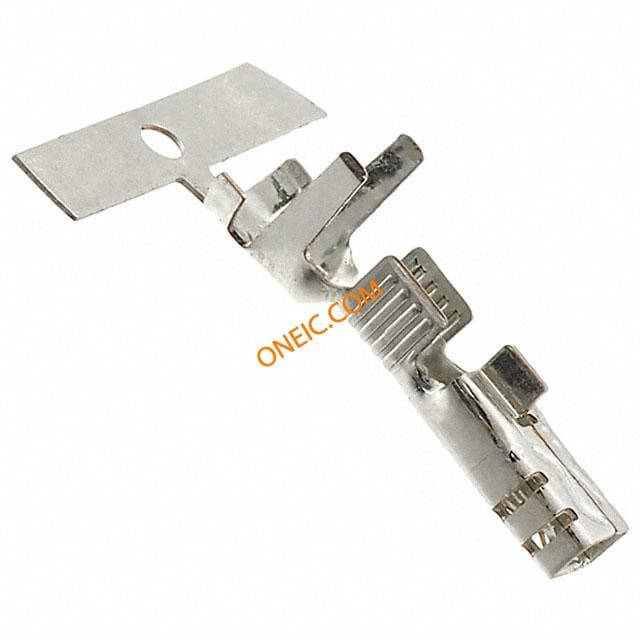

1971237-1
TE Connectivity/AMP Brand
Receptacle contact, 2X20 Awg Headers & Wire Housings 2X20 Awg Receptacle contact RECEPTACLE CONTACT, 2X20 AWG Crimp contact, 6 A, 20 AWG, 1971237-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 2X20 AWG

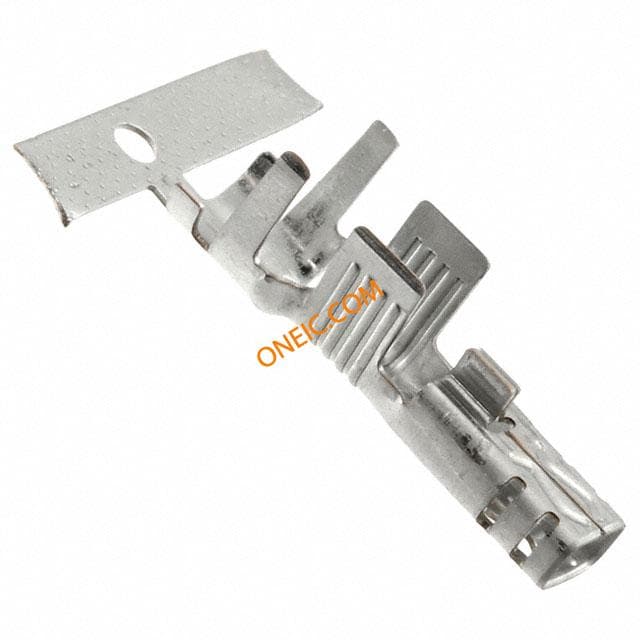

1971779-2
TE Connectivity/AMP Brand
Receptacle contact, 12 Awg Headers & Wire Housings 12 Awg Receptacle contact RECEPTACLE CONTACT, 12 AWG Power Triple Lock Tin Plated 12 AWG Crimp Socket Receptacle Contact Crimp contact, 20 A, 12 AWG, 1971779-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 12 AWG

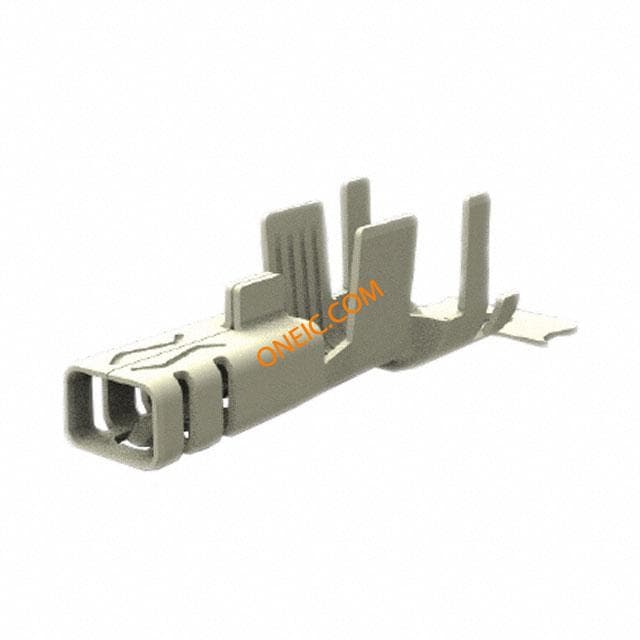

1971781-2
TE Connectivity/AMP Brand
Receptacle contact, 14 Awg Headers & Wire Housings 14 Awg Receptacle contact RECEPTACLE CONTACT, 14 AWG Power Triple Lock Tin Plated 14 AWG Crimp Socket Receptacle Crimp contact, 15 A, 14 AWG, 1971781-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 14 AWG

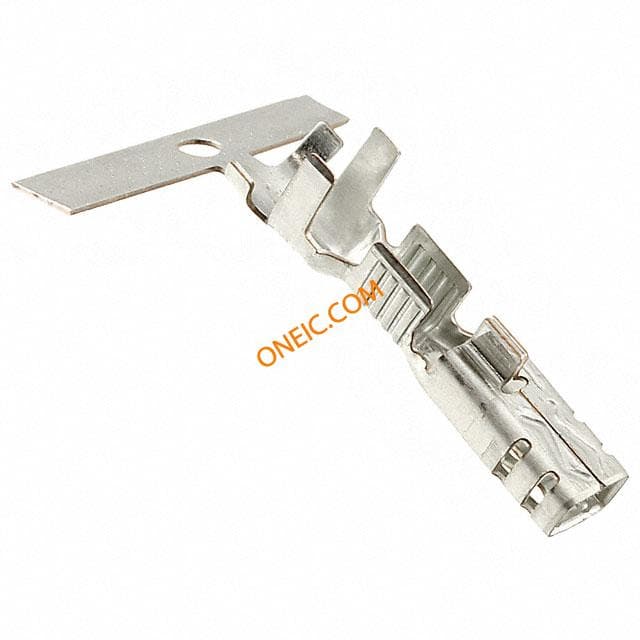

1971783-2
TE Connectivity/AMP Brand
Receptacle contact, 16 20 Awg Headers & Wire Housings 16 20 Awg Receptacle contact RECEPTACLE CONTACT, 16 20 AWG Power Triple Lock Tin Plated 16 - 20 AWG Crimp Socket Receptacle Crimp contact, 15 A, 16...20 AWG, 1971783-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 16-19 AWG, 2X22
1971785-2
TE Connectivity/AMP Brand
Receptacle contact, 22 Awg Headers & Wire Housings 22 Awg Receptacle contact RECEPTACLE CONTACT 22 AWG Power Triple Lock Tin Plated 20 - 22 AWG Crimp Socket Receptacle Crimp contact, 5 A, 22 AWG, 1971785-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG

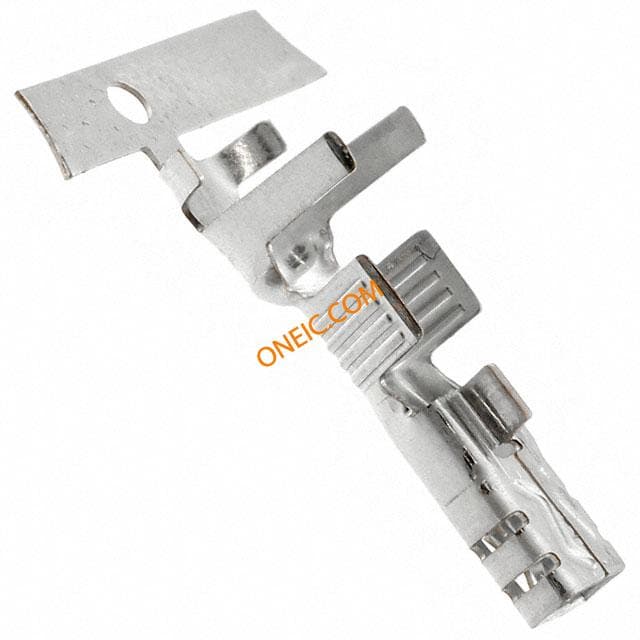

1971787-1
TE Connectivity/AMP Brand
Receptacle contact, 2X18 Awg Headers & Wire Housings 2X18 Awg Receptacle contact RECEPTACLE CONTACT, 2X18 AWG Crimp contact, 8 A, 18 AWG, 1971787-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 2X18 AWG

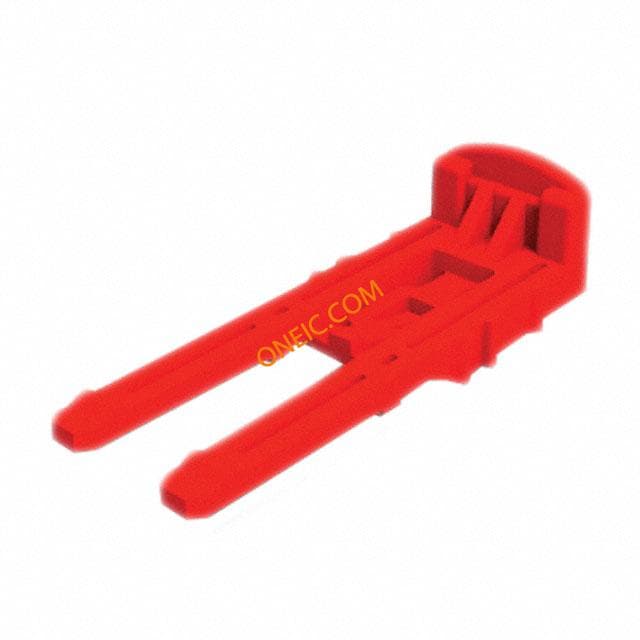

1971789-1
TE Connectivity/AMP Brand
CPA ConnectorPositionAssurance(CPA);PowerTripleLockAccessory;600VAC/600VDC; Connector locking, 7.6 mm, red, 1971789-1, TE Connectivity

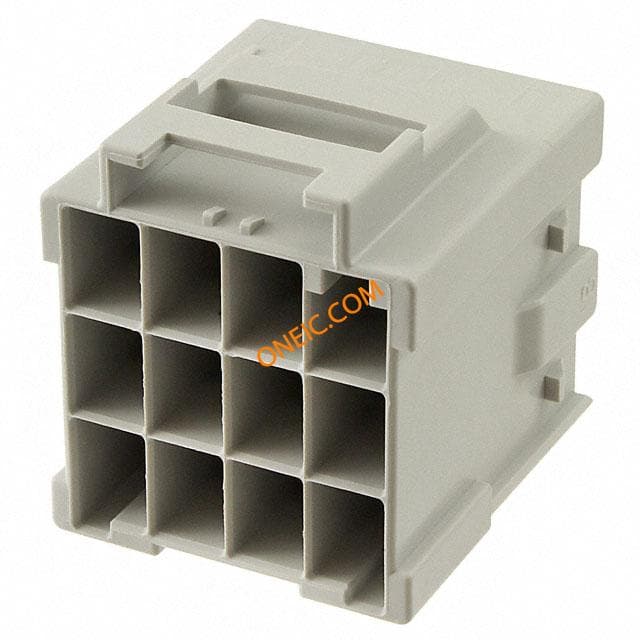

5-1971874-4
TE Connectivity
Headers & Wire Housings 3x4 cap housing lgr free hanging Key A CONN RCPT HOUSING 12POS 6MM PTL 3X4 CAP FREE HANG HITEMP KEY A LGR

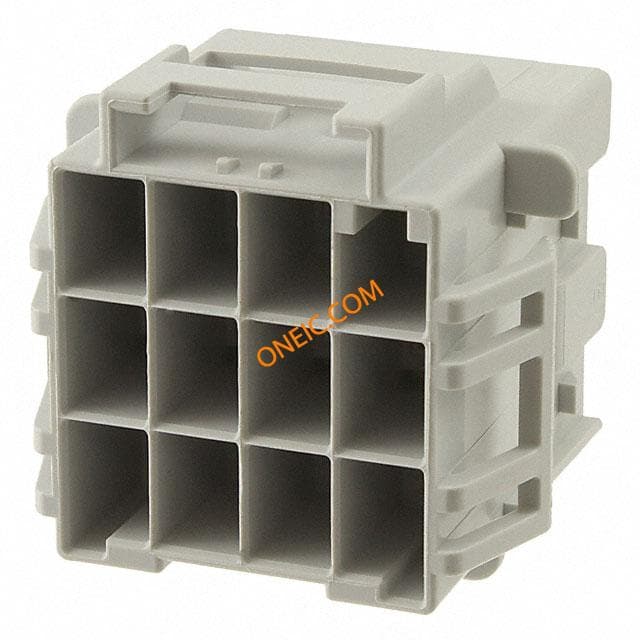

5-1971875-4
