1-1971776-3
| Manufacturer | |
| Description | CONN HOUSING PLUG 6POS 6MM Headers & Wire Housings 2 x 3 PBT-A Plug Hsg 1-1971776-3 Conn Housing PL 6 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, PLUG, 6POS, 2ROW, 6MM CONNECTOR, HOUSING, PLUG, 6 WAY, PBT Conn;Rect;Plug;6Pos;2Row;PowerTripleLock;W-to-W;2X3;PBT;KeyA Male Housing Pitch6 mm Poles 2 x 3 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971776-3, TE Connectivity TE Connectivity Power Triple Lock 系列 2 行 6mm 节距 6 路 直 公 电缆安装 压接连接器外壳 PTL 2X3 PLUG HSG STD TEMP KEY A NAT |
| Category |
Business
| Other Names | A115800 | Standard Package | 1,800 |
Compliance
| RoHS | RoHS Compliant | Standards | RoHS/ELV |
| Tariff No | 85369010 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600 V | Switch Function | Latched |
| Current Rating (Max) | 20 A | Voltage - Continuous Operating (Max) (MCOV) | 600VAC/VDC |
Mechanical
| Color | Natural | Pitch | 0.236" (6.00mm) |
| Weight | 0 | Packaging | Bulk |
| Wire Gauge | 20-12 | Row Spacing | 0.319" (8.10mm) |
| Contact Type | Female Socket | Housing Color | Natural |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug |
| Fastening Type | Latch Holder | Number of Rows | 2 |
| Housing Material | Polybutylene Terephthalate (PBT) | Primary Material | Rectangular |
| Number of Contacts | 6 | Contact Termination | Crimp |
| Number of Positions | 6 | Center Contact Finish | 6.00(0.236) |
| Contact Layout, Typical | DoubleRow | ||
Product Info
| Note | Contacts Not Provided | Type | PlugHousing |
| Series | Power Triple Lock | Key Type | A |
| Manufacturer | PowerTripleLock | Product Type | Plugs - Housings |
| Application Specifics | Wire-to-Wire | For Use With/Related Products | :1971237, 1971779, 1971781, 1971783, 1971785, 1971787 Receptacle Contacts |
Environmental
| Operating Temperature | - 55 C to + 105 C | ||
Documents & Media
Similar Parts
1-1971774-3
TE Connectivity
CONN RCPT HOUSING 6POS 6MM Headers & Wire Housings 2 x 3 PBT-A Cap Hsg Free Hanging 1-1971774-3 Conn Housing RCP 6 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, RCPT, 6POS, 2ROW, 6MM CONNECTOR, HOUSING, RCPT, 6 WAY, PBT Conn;Rect;Recept;6Pos;2Row;PowerTripleLock;W-to-W;2X3;PBT;KeyA Female Housing Pitch6 mm Poles 2 x 3 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971774-3, TE Connectivity TE Connectivity 1971774 系列 2 行 6mm 节距 6 路 直 母 电缆安装 插座壳体 PTL 2X3 CAP FREE HANG STD TEMP KEY A NAT
1-1971775-3
TE Connectivity
CONN RCPT HOUSING 6POS 6MM Headers & Wire Housings 2 x 3 PBT-A Cap Hsg Panel Mount 1-1971775-3 Conn Housing RCP 6 POS 6mm ST Panel Mount CONNECTOR, HOUSING, RCPT, 6POS, 2ROW, 6MM CONNECTOR, HOUSING, RCPT, 6 WAY, PBT Conn;Rect;Recept;6Pos;2Row;PowerTripleLock;PanelMnt;2X3;PBT;KeyA Female Housing Pitch6 mm Poles 2 x 3 Multi row / for panel mount Power Triple Lock, 1-1971775-3, TE Connectivity TE Connectivity Power Triple Lock 系列 2 行 6mm 节距 6 路 直 母 面板安装 压接连接器外壳 PTL 2X3 CAP PANEL MT STD TEMP KEY A NAT
1971785-1
TE Connectivity
CONN CONT RCPT 22AWG Headers & Wire Housings 22 AWG PhosBr Rcpt Contact Terminal 1971785-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 22AWG, CRIMP CONTACT, SOCKET, 22 AWG, CRIMP Contact;Socket;Crimp;22AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 5 A, 22 AWG, 1971785-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG
1971781-1
TE Connectivity
CONN CONT RCPT 14AWG Triple Lock receptacle Contact 14 AWG 1971781-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 14AWG, CRIMP CONTACT, SOCKET, 14 AWG, CRIMP Contact;Socket;Crimp;14AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 12 A, 14 AWG, 1971781-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 14 AWG
1971779-1
TE Connectivity
CONN CONT RCPT 12AWG Triple Lock receptacle Contact 12 AWG Headers & Wire Housings 12 AWG C Iron Rctp Contact Terminal 1971779-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 12AWG, CRIMP CONTACT, SOCKET, 12 AWG, CRIMP Contact;Socket;Crimp;12AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 20 A, 12 AWG, 1971779-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 12 AWG
1971785-2
TE Connectivity/AMP Brand
Receptacle contact, 22 Awg Headers & Wire Housings 22 Awg Receptacle contact RECEPTACLE CONTACT 22 AWG Power Triple Lock Tin Plated 20 - 22 AWG Crimp Socket Receptacle Crimp contact, 5 A, 22 AWG, 1971785-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG
1971789-1
TE Connectivity/AMP Brand
CPA ConnectorPositionAssurance(CPA);PowerTripleLockAccessory;600VAC/600VDC; Connector locking, 7.6 mm, red, 1971789-1, TE Connectivity

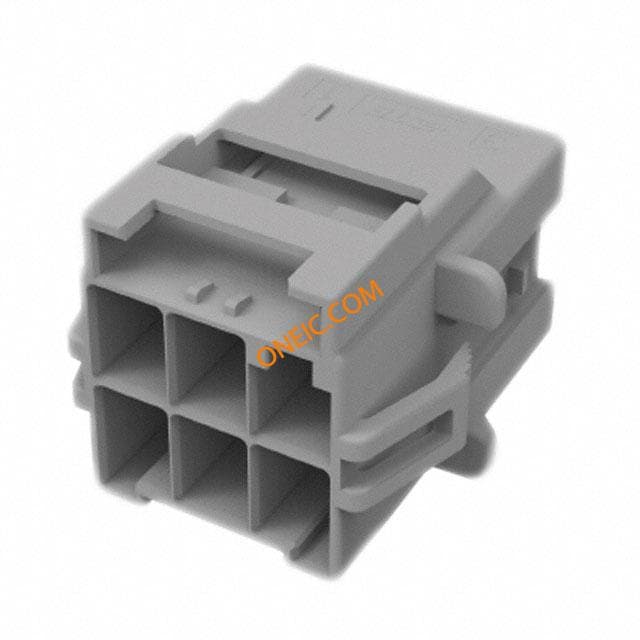

5-1971775-3
TE Connectivity/AMP Brand
2x3 cap housing panel mount Key A lgr CONN RCPT HOUSING 6POS 6MM PTL 2X3 CAP PANEL MT HIGH TEMP KEY A LGR

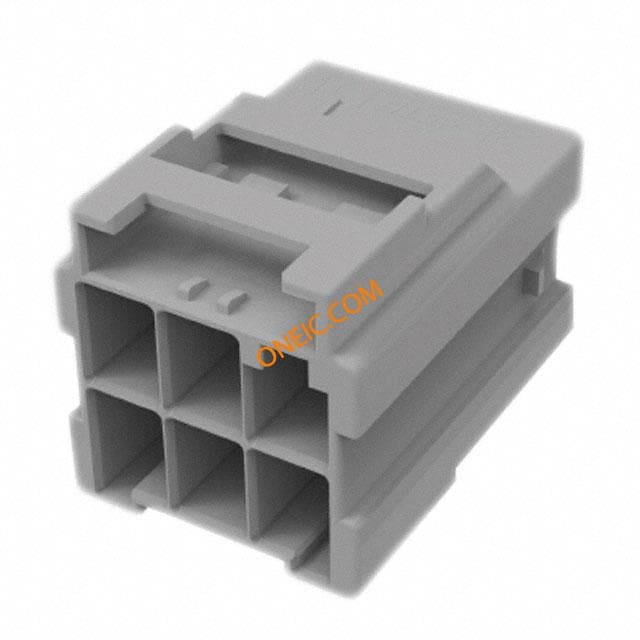

5-1971774-3
