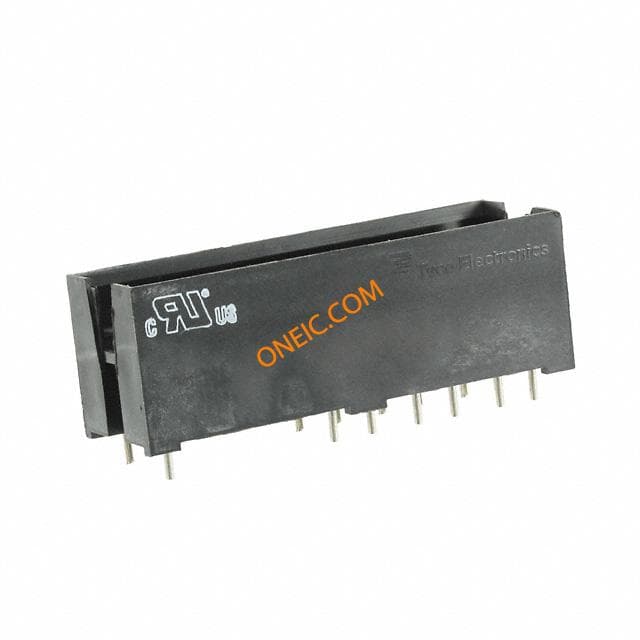

V23050A1024A533
| Manufacturer | |
| Description | Safety Relays 24V 8A 3NO+3NC TH SAFETY RELAY RELAY SAFETY 6PST 8A 24V Safety Relay Coil Voltage: 24 VDC Contact Configuration: 3A + 3B 3PST-NO + 3PST-NC Current: 8 Amps Mounting: PC Board V23050-A1024-A533 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1415015-1 | Product Category | Safety Relays |
| Standard Package | 10 | ||
Compliance
| RoHS | RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C |
| Approved Countries | UL Recognized, CSA Certified, TUV Approved, VDE Component Mark | RoHS/ELV Compliance | Converted to comply with RoHS directive |
Electrical
| Current | 8 Amps | Coil Type | Non Latching |
| Core Type | Monostable | Coil Power | 1.2 mW |
| Coil Current | 50mA | Power - Input | 1.2 mW |
| Voltage - Core | 3500 – 4000 | Voltage Rating | 250 |
| Coil Resistance | 480 Ohms | Current - Surge | 8 |
| Voltage - Supply | 24 VDC | Switching Voltage | 400VAC - Max |
| Number of Elements | Single | Vgs(th) (Max) @ Id | 2.4 VDC |
| Connector Impedance | 3 Form A (NO) + 1 Form B (NC) | Current - Trip (It) | 8 |
| Current Rating (Max) | 8 | Frequency - Output 1 | 单稳态、直流 |
| Current Rating (Amps) | 5 – 10 | Insulation Resistance | 5.5 mm [ .217 in ] |
| Vce(on) (Max) @ Vge, Ic | 18 VDC | Contact Rating (Current) | 8A |
| Contact Rating @ Voltage | 8 A | Current - Output Source/Sink | 10mA @ 5V |
| Current - Discharge (Max) (8/20uS) | 8 | Voltage - Anode - Cathode (Vak)(Max) | 400 |
Mechanical
| Width | 16.51 mm [ .65 in ] | Height | 16.5 mm [ .65 in ] |
| Length | 55 mm [ 2.167 in ] | Weight | 90 g [ 1.058 oz ] |
| Packaging | Tube | Termination | Through Hole |
| Contact Form | 3 Form A (3PST-NO), 3 Form B (3PST-NC) | Contact Type | Single button, forcibly guided |
| Height (Max) | 16 – 20 | Actuator Type | DC |
| Mounting Type | Through Hole | Contact Material | Silver Tin Oxide (AgSnO) |
| Insulation Height | 3 – 5.5 | Outline L x W x H | 55.00 x 16.50 x 16.00 [2.167 x .650 x .630] |
| Termination Style | Through Hole | Number of Contacts | 6 |
| Insulation Diameter | 5.5 mm [ .217 in ] | Width / Cross Section | 16 – 20 |
| Contact Layout, Typical | 3A + 3B 3PST-NO + 3PST-NC | Supplier Device Package | Sealed |
| 1st Connector Mounting Type | 印刷电路板 | ||
Product Info
| Note | Well suited for emergency shut-off, machine control, elevator and escalator control, light barrier control | Type | Relays |
| Function | Single Side Stable | Polarity | No |
| Washable | No | Relay Type | Safety |
| Card Standard | Safety Relay | ||
Environmental
| Ingress Protection | RTIII | Operating Temperature | -25°C ~ 70°C |
| Initial Dielectric Strength | 1500 | ||
