点击放大查看
RTB14524
| Manufacturer | |
| Description | General Purpose Relays SP 12A 3.5mm 24VAC RELAY GEN PURPOSE SPDT 12A 24V SPDT PCB power relay,12A 24Vac coil Electromechanical Relay SPDT 12A 24VAC 350Ohm Through Hole Electromechanical Relay SPDT 12A 24VAC 350Ohm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemInput Voltage = 24 VAC Relay;24VAC;PCB;PCBoard;1FormC,SPDT,1C/O;0.75VA(Nom.)(Coil) TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 24V RTB14524 |
| Category |
Business
| Part # Aliases | 2-1393238-4 | Product Category | General Purpose Relays |
| Standard Package | 20 | Factory Pack Quantity | 20 |
Compliance
| RoHS | RoHS Compliant | Standards | cULus,CSA,VDE,RoHS |
| Part Status | 2-1393238-4 | ||
Electrical
| Coil Type | Monostable | Coil Power | 0.76 VA |
| Coil Current | 16.7 mA | Release Time | 6ms |
| Power - Input | 400 | Voltage - Core | 4000 |
| Voltage Rating | 250 | Coil Resistance | 350 Ohms |
| Current - Surge | 12 | Voltage - Supply | 24 V |
| Switching Voltage | 400VAC - Max | Power - Peak Pulse | 3 kVA |
| Vgs(th) (Max) @ Id | 3.6 VAC | Connector Impedance | 1 Form C (CO) |
| Current - Trip (It) | 25 | Current Rating (Max) | 12A |
| Frequency - Output 1 | 单稳态、直流 | Power - Output Surge | 3 kVA |
| Current Rating (Amps) | 10 – 20, 16 | Insulation Resistance | 10 mm [ .394 in ] |
| Power - Average Forward | 0.75 VA | Vce(on) (Max) @ Vge, Ic | 18 VAC |
| Contact Rating (Current) | 12A | Current - Discharge (Max) (8/20uS) | 12 |
| Voltage - Anode - Cathode (Vak)(Max) | 400 | Drive Voltage (Max Rds On, Min Rds On) | 24VAC |
Mechanical
| Depth | 12.7mm | Width | 12.7 mm |
| Height | 15.7 mm | Length | 29 mm |
| Weight | 14 g [ .494 oz ] | Packaging | Tube |
| Insulation | 继电器基极 PTI250 的跟踪指数 | Termination | Solder |
| Contact Form | 1 Form C (SPDT-BM) | Height (Max) | 15 – 16 |
| Mounting Type | Through Hole | Terminal Type | Through Hole |
| Mounting Style | PCB | Number of Pins | 5 |
| Contact Material | Silver Nickel | Size / Dimension | 1.142in.Lx0.500in.Wx0.618in.H(Approx.) |
| Insulation Height | 8 | Termination Style | PC Pin |
| Number of Contacts | 1 | Primary Winding(s) | UL 线圈绝缘类 F |
| Contact Termination | PCB | Insulation Diameter | 10 mm [ .394 in ] |
| Width / Cross Section | 12 – 16 | Contact Layout, Typical | SPDT |
| 1st Connector Mounting Type | 印刷电路板, 插座 | ||
Product Info
| Series | RT1 | Features | Insulation - Class F, Sealed - Fully |
| Function | GeneralPurpose | Relay Type | General Purpose |
| Application | 电源 | Manufacturer | RTSeries |
| Application Specifics | Power | ||
Environmental
| Operate Time | 8ms | Ingress Protection | RTIII |
| Operating Temperature | -40°C ~ 70°C | Maximum Temperature Limit | +70°C |
| Initial Dielectric Strength | 1000 | ||
Documents & Media
Similar Parts
RP78601
TE Connectivity / Schrack
Relay Sockets & Hardware SOCKET 1 POLE PC SOCKET TERM PCB 10A SP RT SERIES Conn Relay Socket SKT 5 POS Solder ST Thru-Hole Conn Relay Socket SKT 5 POS Solder ST Thru-Hole Product Highlights:SocketRP Series, RT Series, RY SeriesNumber of Poles = 1Terminal Type = PCWithout Grounding Provision SOCKET, PCB, 3.5MM FOOTPRINT RP78601
RT78724
TE Connectivity / Schrack
Relay Sockets & Hardware Access Industrial SOCKET 3.5MM W/SCREW TERM DIN Conn Relay Socket SKT 5 POS Screw ST Panel Mount SOCKET, DIN, 3.5MM PITCH, SCREW TERM 继电器插座, 适用于RT 系列
RT114524
TE Connectivity / Schrack
General Purpose Relays SPDT 12Amps 24VAC RELAY GEN PURPOSE SPDT 12A 24V SPDT PCB relay, 3.5mm pin, 12A 24Vac Electromechanical Relay SPDT 12A 24VAC 350Ohm Through Hole Electromechanical Relay SPDT 12A 24VAC 350Ohm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemInput Voltage = 24 VAC RELAY, PCB, SPCO, 24VAC SPDTRELAY,12A24VAC TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 24V RT114524

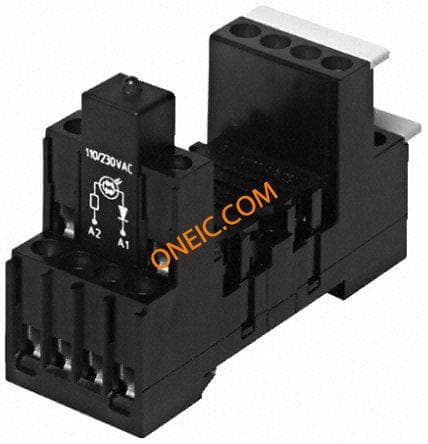

PTMT00A0
