PT270524
| Manufacturer | |
| Description | General Purpose Relays DPDT 12A 24 VAC RELAY GEN PURPOSE DPDT 12A 24V DPDT plug-in relay,12A 24Vac coil Electromechanical Relay DPDT 24A 24VAC 192Ohm Plug-In Electromechanical Relay DPDT 24A 24VAC 192Ohm Plug-In Product Highlights:PT SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemInput Voltage = 24 VAC RELAY, PLUG-IN, 24VAC PTPLUGINREL24VACDPCO PT270524 |
| Category |
Business
| Part # Aliases | 4-1419111-8 | Product Category | General Purpose Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85364900 |
| Approval Agency | :LLOYDS, VDE | ||
Electrical
| Coil Type | Monostable | Coil Power | 1 VA |
| Range deg/s | :TE - PT Series | Release Time | :10ms |
| Voltage - Core | :230V | Coil Resistance | 192 Ohms |
| Number of Poles | :2 | Current - Output | :12A |
| Voltage - Supply | 24 VDC | Switching Voltage | 400VAC - Max |
| Vgs(th) (Max) @ Id | 7.2 VAC | Voltage - Breakdown | :2500VAC |
| Must Operate Voltage | :19.2V | Must Release Voltage | :7.2V |
| Power - Output Surge | 3 kVA | Current - Max/Contact | :12A |
| Power - Average Forward | 1 VA | Vce(on) (Max) @ Vge, Ic | 19.2 VAC |
| Contact Rating (Current) | 12 A | Voltage - Supply (Vcc/Vdd) | :230V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | 22.5mm | Width | 22.5 mm |
| Height | 29 mm | Length | 28 mm |
| Weight | :30g | Packaging | Bulk |
| Contact Form | 2 Form C (DPDT-BM) | Height (Max) | :28mm |
| Mounting Type | Socketable | Terminal Type | Tab |
| Mounting Style | Socket | Contact Material | Silver Nickel |
| Termination Style | Plug In, QC - 0.110" (2.8mm) | Contact Termination | PCB |
| Contact Layout, Typical | DPDT | ||
Product Info
| Type | Ice Cube Style Relay | Series | PT |
| Features | Mechanical Indicator, Test Button | Relay Type | General Purpose |
| Application Specifics | Compact | ||
Environmental
| Operate Time | :15ms | Operating Temperature | -40°C ~ 70°C |
Documents & Media
Similar Parts
PT78720
TE Connectivity / P&B
Relay Sockets & Hardware SOCKET FOR PT2S SOCKET FOR PT2 MINI RELAYS Relay Socket For Use With PT2 Series Conn Relay Socket SKT 14 POS Screw ST Panel Mount SOCKET, FOR PT2 DIN SCREW TERMINAL DINsocketforPT22Prelay RELAYDINSCOKET2POLE
27E220
te connectivity / p&b

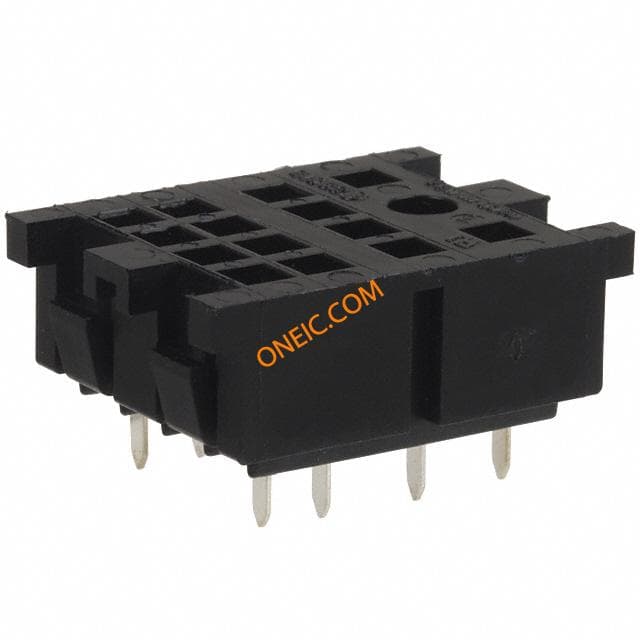

27E220=SOCKET,KH,8,PL,PHEN,BLK Relay Sockets & Hardware 2 POLE PCB SOCKET SOCKET DP-2P FOR PT SERIES Conn Relay Socket SKT 2 POS Solder ST Thru-Hole Conn Relay Socket SKT 2 POS Solder ST Thru-Hole Product Highlights:SocketKHA Series, KHS Series, PT SeriesNumber of Poles = 2Terminal Type = PCTerminal Length = 5.54 mm
PT7872P
TE Connectivity
SOCKET RELAY 2P DIN SCREWLESS Relay Socket For Use With PT Series 2poleDinsocket,screwless,logical
PTMT00A0
TE Connectivity

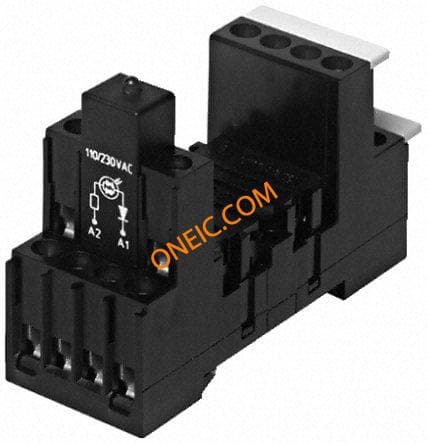

Interface Relay Module MODULE, PROTECTION DIODE, A1+ DiodemoduleforPTsockets,A1pos
PT78722
TE Connectivity
Relay Socket For Use With PT2 Series Socket,Relay;DIN-rail,2Pole,In/OutArrangement,ScrewTypeTerminals
PTML0524
TE Connectivity

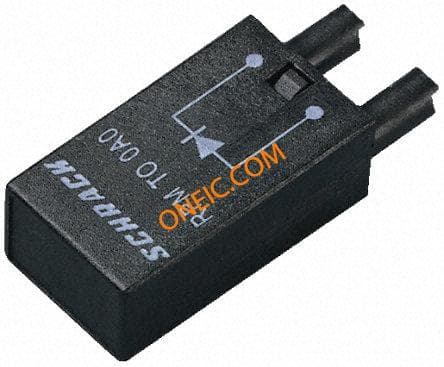

Plug-in module LED 24Vac/dc MODULE, LED, RED, 6-24VDC/AC Plug-inmoduleLED24Vac/dc
