PT270048
| Manufacturer | |
| Description | General Purpose Relays 2 FORM C, DPDT, 2C/O w/o coil supres diod RELAY GEN PURPOSE DPDT 12A 48V Electromechanical Relay DPDT 24A 48VDC 3.072KOhm Plug-In PT270048 |
| Category |
Business
| Part # Aliases | 4-1419111-3 | Product Category | General Purpose Relays |
| Standard Package | 10 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Coil Type | Non-Latching | Coil Power | 750 mW |
| Coil Current | 15.6mA | Release Time | 10ms |
| Power - Input | 750 | Voltage Rating | 240 |
| Coil Resistance | 3.072 kOhms | Current - Surge | 300 |
| Voltage - Supply | 48 VDC | Switching Voltage | 400VAC - Max |
| Vgs(th) (Max) @ Id | 4.8 VDC | Connector Impedance | 2 Form C (2 CO) |
| Current - Trip (It) | 24 | Current Rating (Max) | 12 |
| Frequency - Output 1 | 单稳态、直流 | Current Rating (Amps) | 10 – 20 |
| Insulation Resistance | 2500 | Power - Average Forward | 750 mW |
| Vce(on) (Max) @ Vge, Ic | 36 VDC | Contact Rating (Current) | 12 A |
| Current - Output Source/Sink | 10mA @ 12V | Current - Discharge (Max) (8/20uS) | 12 |
| Voltage - Anode - Cathode (Vak)(Max) | 400 | ||
Mechanical
| Width | 22.5 mm | Height | 29 mm |
| Length | 28 mm | Weight | 30 g [ 1.058 oz ] |
| Packaging | Bulk | Insulation | 端子和线圈间 5000 V 初始浪涌耐电压 |
| Contact Form | 2 Form C (DPDT-BM) | Height (Max) | 25 – 30 |
| Mounting Type | Socketable | Mounting Style | Socket |
| Contact Material | Silver Nickel | Insulation Height | 3 – 5.5 |
| Termination Style | Plug In, QC - 0.110" (2.8mm) | Dimensions - Panel | 28 x 22.5 x 29 mm [ 1.102 x .886 x 1.142 in ] |
| Number of Contacts | 2 | Primary Winding(s) | UL 线圈绝缘类 F |
| Dielectric Material | 2500 | Insulation Diameter | 2.5 – 4 |
| Width / Cross Section | 20 – 25 | 1st Connector Mounting Type | 插座 |
| Jacket (Insulation) Thickness | 3 | ||
Product Info
| Type | Miniature Ice Cube Power Relay | Series | PT |
| Features | Mechanical Indicator, Test Button | Relay Type | General Purpose |
Environmental
| Operate Time | 15ms | Ingress Protection | RTII |
| Operating Temperature | -40°C ~ 70°C | Initial Dielectric Strength | 1200 |
Similar Parts
1860100-1
te connectivity / p&b
Conn Relay Socket SKT 2 POS ST PT7872P Conn Relay Socket SKT 2 POS ST Search Keywords:relay connectors SOCKET, RELAY, 2POLES Relay socket 2-pole, 1860100-1, TE Connectivity
PT78720
TE Connectivity / P&B
Relay Sockets & Hardware SOCKET FOR PT2S SOCKET FOR PT2 MINI RELAYS Relay Socket For Use With PT2 Series Conn Relay Socket SKT 14 POS Screw ST Panel Mount SOCKET, FOR PT2 DIN SCREW TERMINAL DINsocketforPT22Prelay RELAYDINSCOKET2POLE

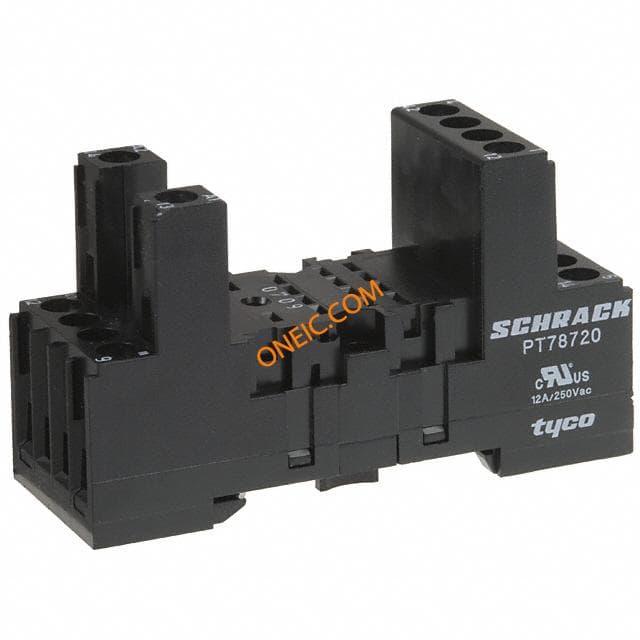

6-1415034-1
