MT321012
| Manufacturer | |
| Description | General Purpose Relays 3P TST BTN LED 12VDC RELAY GEN PURPOSE 3PDT 10A 12V 3PDT multimode relay,10A 12Vdc coil Electromechanical Relay 3PDT 20A 12VDC 110Ohm Socket Electromechanical Relay 3PDT 20A 12VDC 110Ohm Socket Product Highlights:MT SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, 3PCO, 12VDC RELAY,MULTIMODE,12VDC,3COCONTACTS,11PIN,W/TESTBUTTON MT321012 |
| Category |
Business
| Lead Time | 185 Days | Subcategory | Electromechanical Relay |
| Part # Aliases | 6-1393091-8 | Product Category | General Purpose Relays |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85364900 |
| Approval Agency | :VDE | ||
Electrical
| Coil Type | Monostable | Coil Power | 1.3 W |
| Range deg/s | :TE - MT Series | Coil Current | 108.3mA |
| Release Time | 10ms | Isolation Type | 2500V rms |
| Voltage - Core | :250V | Coil Resistance | 110 Ohms |
| Number of Poles | :3 | Current - Output | :10A |
| Voltage - Supply | 12 V | Switching Voltage | 400VAC - Max |
| Vgs(th) (Max) @ Id | 1.2 VDC | Current - Switching | 10 A |
| Dielectric Strength | :2500V | Current Rating (Max) | 10A |
| Power - Output Surge | 2.5 kVA | Contact Voltage (Max) | :240V |
| Current - Max/Contact | :10A | Voltage - Switching AC | :440VAC |
| Power - Average Forward | 1200 mW | Vce(on) (Max) @ Vge, Ic | 9 VDC |
| Contact Rating (Current) | 10 A | Drive Voltage (Max Rds On, Min Rds On) | 12VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :240V | ||
Mechanical
| Depth | 35.6mm | Width | 35.5 mm |
| Height | 57 mm | Length | 35.5 mm |
| Weight | :80g | Packaging | Tray |
| Contact Form | 3 Form C (3PDT-BM) | Height (Max) | :57mm |
| Mounting Type | Socketable | Terminal Type | Plug In |
| Mounting Style | Socket | Number of Pins | 11 |
| Contact Material | Silver Nickel | Termination Style | Plug In, 11 Pin (Octal) |
| Contact Termination | Plug In | Contact Layout, Typical | 3PDT |
Product Info
| Type | Ice Cube Style Relay | Series | MT |
| Features | Test Button | Function | GeneralPurpose |
| Relay Type | General Purpose | Industry Aliases | 6-1393091-8, MT321012 |
| Other Specifications | :80% | Application Specifics | General Purpose |
Environmental
| Operate Time | 15ms | Operating Temperature | -40°C ~ 60°C |
Documents & Media
Similar Parts
1437683-1
te connectivity / buchanan-rdi
Individual Socket Interface Module SKT 11 POS ST Custom Terminal Blocks SOCKET RELAY PCB 11POS Conn Relay Socket SKT ST Panel Mount Conn Relay Socket SKT ST Panel Mount Product Highlights:Interface ModuleModule Type = Individual SocketNumber of Positions = 11Used With 11 Pin Octal RelaySearch Keywords:DIN rail, ready-to-wire, field wiring, panel mount,
2-1437683-7
te connectivity / buchanan-rdi
Interface Module 11 POS Custom Terminal Blocks INTERFACE MODULE-TERMINAL BLOCK Interface Module 11 POS Product Highlights:Interface Module - Terminal BlockModule Type = Octal Socket11 PositionsSNAPTRACK Channel Series 2TKSearch Keywords:DIN rail, ready-to-wire, field wiring, panel mount,
1-1437683-2
TE Connectivity / AMP
Terminal Block Interface Modules 311BR=ASSEMBLY Custom Terminal Blocks INTERFACE MODULE FOR 11POS SCKT Interface Modules 311BR=ASSEMBLY Octal Socket Interface Module SKT 11 POS ST Octal Socket Interface Module SKT 11 POS ST Search Keywords:DIN rail, ready-to-wire, field wiring, panel mount,
8-1415043-1
te connectivity / p&b

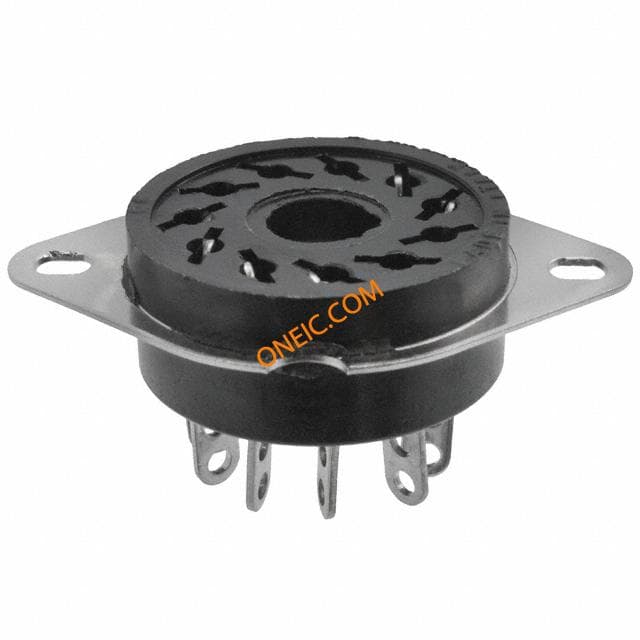

Conn Relay Socket SKT 11 POS Solder ST Thru-Hole RELAY SOCKET ACCESSORIES Relay socket, 8-1415043-1, TE Connectivity MT78613
MT78760
TE Connectivity / P&B
Relay Sockets & Hardware SCREW-TYPE TERMINALS 11-PIN SOCKET DINRAIL SCREW TERM 11PIN Conn Relay Socket SKT 11 POS Screw ST Panel Mount Socket,Relay;DIN-RAIL,11PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES
MT78740
TE Connectivity / Schrack
Relay Sockets & Hardware Socket SOCKET DINRAIL 3P FOR MT RELAYS Relay Socket For Use With MT Series Conn Relay Socket SKT 11 POS Screw ST Conn Relay Socket SKT 11 POS Screw ST Product Highlights:SocketMT SeriesNumber of Poles = 3Terminal Type = ScrewWithout Grounding Provision SOCKET, DIN, MULTIMODE, 11 PIN Socket,Relay;DIN-RAIL,11PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES Relay socket, MT78740, TE Connectivity MT78740
MT78750
TE Connectivity / P&B
Relay Sockets & Hardware SKT DINRAIL 11PIN OCTAL MT RELAY SKT DINRAIL 11PIN OCTAL MT RELAY Relay Socket For Use With MT Series Conn Relay Socket SKT 11 POS Screw ST Thru-Hole Socket,Relay;DIN-RAIL,11PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES
MTMT00A0
TE Connectivity / Schrack
Relay Sockets & Hardware RELAY SOCKET ACCESSORIES Interface Relay Module Led And Protection Modules, Protection Diode Led And Protection Modules, Protection Diode Product Highlights:Protection ModuleMT SeriesWithout Grounding Provision DIODE MODULE, MULTIMODE PROTECTIONDIODEMODULE MTMT00A0
1415044-1
te connectivity / p&b

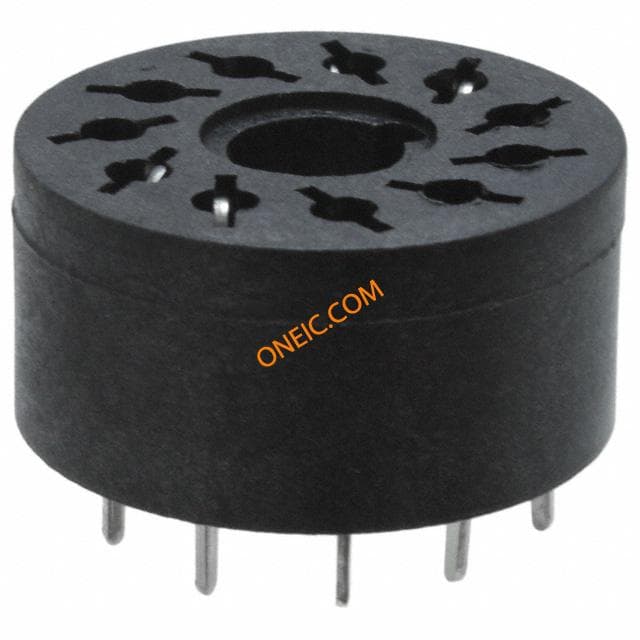

Conn Relay Socket SKT 11 POS Solder ST Thru-Hole MT78603 SOCKET 11PIN PCB TERM Relay socket, 1415044-1, TE Connectivity
