MT221012
| Manufacturer | |
| Description | General Purpose Relays DP W/ TEST BTN 12VDC RELAY GEN PURPOSE DPDT 10A 12V DPDT multimode relay,10A 12Vdc coil Electromechanical Relay DPDT 20A 12VDC 110Ohm Socket Electromechanical Relay DPDT 20A 12VDC 110Ohm Socket Product Highlights:MT SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, DPCO, 12VDC RELAY,MULTIMODE,12VDC,2COCONTACTS,8PIN,W/TESTBUTTON MT221012 |
| Category |
Business
| Lead Time | 185 Days | Subcategory | Electromechanical Relay |
| Part # Aliases | 4-1393090-9 | Product Category | General Purpose Relays |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85364900 |
| Approval Agency | :VDE | ||
Electrical
| Coil Type | Monostable | Coil Power | 1.3 W |
| Range deg/s | :TE - MT Series | Coil Current | 108.3mA |
| Release Time | 10ms | Isolation Type | 2500V rms |
| Voltage - Core | :250V | Coil Resistance | 110 Ohms |
| Number of Poles | :2 | Current - Output | :10A |
| Voltage - Supply | 12 V | Switching Voltage | 400VAC - Max |
| Vgs(th) (Max) @ Id | 1.2 VDC | Current - Switching | 10 A |
| Dielectric Strength | :2500V | Current Rating (Max) | 10A |
| Power - Output Surge | 2.5 kVA | Contact Voltage (Max) | :240V |
| Current - Max/Contact | :10A | Voltage - Switching AC | :440VAC |
| Power - Average Forward | 1200 mW | Vce(on) (Max) @ Vge, Ic | 9 VDC |
| Contact Rating (Current) | 10 A | Drive Voltage (Max Rds On, Min Rds On) | 12VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :240V | ||
Mechanical
| Depth | 35.6mm | Width | 35.5 mm |
| Height | 57 mm | Length | 35.5 mm |
| Weight | :80g | Packaging | Tray |
| Contact Form | 2 Form C (DPDT-BM) | Height (Max) | :57mm |
| Mounting Type | Socketable | Terminal Type | Plug In |
| Mounting Style | Socket | Number of Pins | 8 |
| Contact Material | Silver Nickel | Termination Style | Plug In, 8 Pin (Octal) |
| Contact Termination | Plug In | Contact Layout, Typical | DPDT |
Product Info
| Type | Ice Cube Style Relay | Series | MT |
| Features | Test Button | Function | GeneralPurpose |
| Relay Type | General Purpose | Industry Aliases | 4-1393090-9, MT221012 |
| Other Specifications | :80% | Application Specifics | General Purpose |
Environmental
| Operate Time | 15ms | Operating Temperature | -40°C ~ 60°C |
Documents & Media
Similar Parts
2-1437683-1
te connectivity / buchanan-rdi
Individual Socket Interface Module SKT 8 POS Custom Terminal Blocks SOCKET RELAY PCB 8POS Interface Modules 8R-SOCKET=8R SOCKET 8 PIN OCTAL SCKT Individual Socket Interface Module SKT 8 POS Product Highlights:Interface Module - Terminal BlockModule Type = Individual Socket8 PositionsUsed With 8 Pin Octal RelaySearch Keywords:DIN rail, ready-to-wire, field wiring, panel mount,
2-1437683-8
TE Connectivity / AMP
Terminal Block Tools & Accessories SM8=SM8 ASSEMBLY OCTAL SCKT 8 POS Custom Terminal Blocks TERM BLOCK 8POS 22-12AWG 6-32 Octal Socket Interface Module SKT 8 POS ST Octal Socket Interface Module SKT 8 POS ST Product Highlights:Interface ModuleModule Type = Octal SocketNumber of Positions = 8SNAPTRACK Channel Series 2TK2Search Keywords:DIN rail, ready-to-wire, field wiring, panel mount, 8 Position AWG 22 - 12 Din Rail Octal Socket Assembly Surface Mount
MT78745
TE Connectivity / Schrack
Relay Sockets & Hardware DIN-rail SCKT w/SCRW SOCKET DINRAIL DP FOR MT RELAYS Relay Socket For Use With MT Series Conn Relay Socket SKT 2 POS Screw ST Conn Relay Socket SKT 2 POS Screw ST Product Highlights:SocketMT SeriesNumber of Poles = 2Terminal Type = ScrewWithout Grounding Provision SOCKET, DIN, MULTIMODE, 8 PIN Socket,Relay;DIN-RAIL,8PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES MT78745
MT78612
TE Connectivity / Axicom

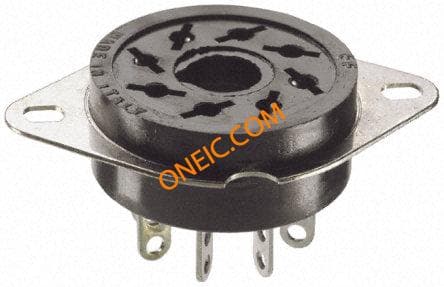

General Purpose Relays 8-Pole solder termin SOCKET 8PIN SOLDER TERM Relay Socket For Use With MT Series Relay Sockets & Hardware 8-Pole solder termin Socket,Relay;8PIN,WITHSOLDERTERMINALS,FORMTMULTIMODERELAYSERIES
