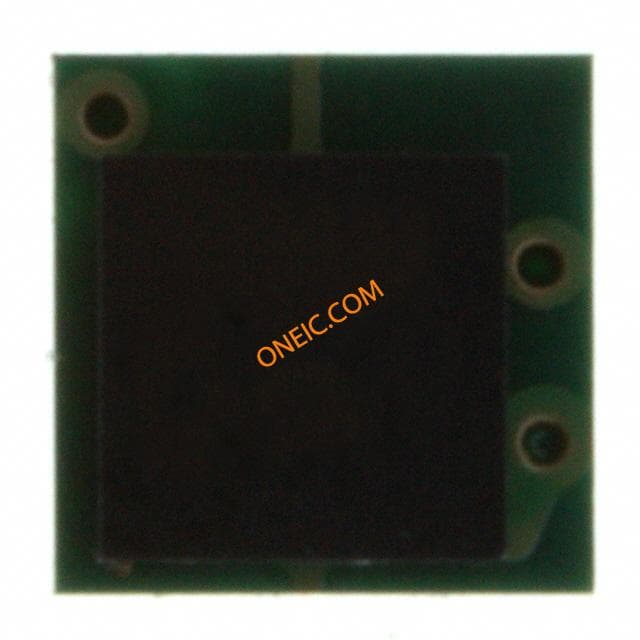

ZEN056V230A16LS
| Manufacturer | |
| Description | ESD Suppressor Polymer 15KV 3-Pin SMD T/R POLYZEN 5.6V PPTC/ZENER SMD ZEN056V230A16LS, Zener Diode, Transient Suppressor 5.6V 0.7W 5A, 3-Pin TVS Diodes - Transient Voltage Suppressors 5.6V .04W 2.3A LS SMD PolyZen DEVICES Zener Vo DIODE, ZENER, 5.6V, 0.7W, 2.3A, SMD POLYZENPOLYMER5.6V TE Connectivity 2.3A 自复型表面安装熔断器, 16 V |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 62 Days | Other Names | ZEN056V230A16LSCT |
| Subcategory | ESD Suppressors | Part # Aliases | RF1491-000 |
| Product Category | TVS Diodes - Transient Voltage Suppressors | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85411000 |
| ESD Protection | 15@HBM KV | ||
Electrical
| Capacitance | 4200(Typ) pF | Power (Watts) | 700mW |
| Current - Surge | 2.3 A | Current - Output | 100mA |
| Voltage - Supply | 5.6V | Voltage - Working | 5.6V |
| Number of Elements | 1 | Power - Peak Pulse | 0.7 W |
| Voltage - Clamping | 16V | Diode Configuration | :SMD |
| Voltage - Breakdown | 16 V | Voltage - Supply (Min) | 5 V |
| Power Dissipation (Max) | 0.7 W | Voltage - Zener (Nom) (Vz) | :5.6V |
Mechanical
| Width | 4.15mm | Height | 2mm |
| Length | 4.15mm | Weight | 0.000001 |
| Packaging | Tape | Mounting Type | Surface Mount |
| Number of Pins | :3 | Package / Case | 3-SMD, No Lead |
| Material Finish | :MSL 1 - Unlimited | Size / Dimension | 4.15 x 4.15 x 2mm |
| Termination Style | SMD/SMT | Number of Positions | 3 |
| Supplier Device Package | SMD | ||
Product Info
| Type | Polymer | Technology | Mixed Technology |
| Applications | General Purpose | Configuration | Single |
| Industry Aliases | RF1491-000, ZEN056V230A16LS | Number of Circuits | 1 |
| Other Specifications | Transient Suppressor | ||
Environmental
| Operating Temperature | -40 °C | ||
Documents & Media
PDF Document
