W58-XC4C12A-5
| Manufacturer | |
| Description | Circuit Breakers 5A PUSH TO RESET ST CIR BRKR THRM 5A 250VAC 50VDC CircuitBreaker,Therm,Push,Cur-Rtg5A Circuit Breaker Thermal 1Pole 5A 250VAC/50VDC Circuit Breaker Thermal 1Pole 5A 250VAC/50VDC Product Highlights:W58 SeriesNumber of Poles = 1Actuator Style = Push to ResetCurrent Rating = 5 Amps.Button Color = White with Black Rate Marking, Red Trip Band CIRCUIT BREAKER, THERMAL, 1P, 250V, 5A CircuitBreaker;Therm;Push;Cur-Rtg5A;Panel;1Pole;Vol-Rtg250/50VAC/VDC W58-XC4C12A-5=W58 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Thermal Circuit Breakers | Lead Time | 94 Days |
| Subcategory | Circuit Breaker | Part # Aliases | 4-1393249-9 |
| Product Category | Circuit Breakers | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | Standards | CSACertified |
| Tariff No | 85339000 | Part Status | 4-1393249-9 |
Electrical
| Voltage Rating | 250 V | Number of Poles | 1 Pole |
| Voltage - Rated AC | :250V | Dielectric Strength | 1.5 kV |
| Current Rating (Max) | 5 A | Contact Voltage (Max) | :50V |
| Voltage - Supply (Min) | :250V | ||
Mechanical
| Color | White | Width | 16.76 mm |
| Height | 34.93 mm | Length | 34.93 mm |
| Weight | 1.499143 oz | Termination | Screw |
| Breaker Type | Thermal | Actuator Type | Pushbutton |
| Mounting Type | Panel Mount | Mounting Style | Panel |
| Primary Material | CircuitBreaker | Size / Dimension | 1.375Lx0.66Wx1.375Hin. |
| Termination Style | Screw | Mounting Hole Diameter | D-Shaped,0.48Dia.x0.47Hin. |
Product Info
| Type | Circuit Breaker | Series | W58 |
| Features | UL1077Recognized | Function | Series Trip |
| Illumination | No | Manufacturer | W58Series |
| Product Type | Supplementary Protector | Industry Aliases | 4-1393249-9, W58-XC4C12A-5 |
Environmental
| Time to Trip | 6 s to 30 s | Operating Temperature | - 20 C to + 60 C |
Documents & Media
Online Document
Similar Parts
55-010A
TE Connectivity / Alcoswitch
Circuit Breaker Accessories KNURL NUT NUT KNURLED SILVER W58 TYPE 1
$0.3037
Details
33-012A
TE Connectivity
Fuse Holders Accessories Circuit Protection DISC PUSH TO RESET W58 TYPE 1 PushtoReset"PlateforW58seriescircuitbreakers Fuse Holder Accessories Circuit Protection
$0.2209
Details

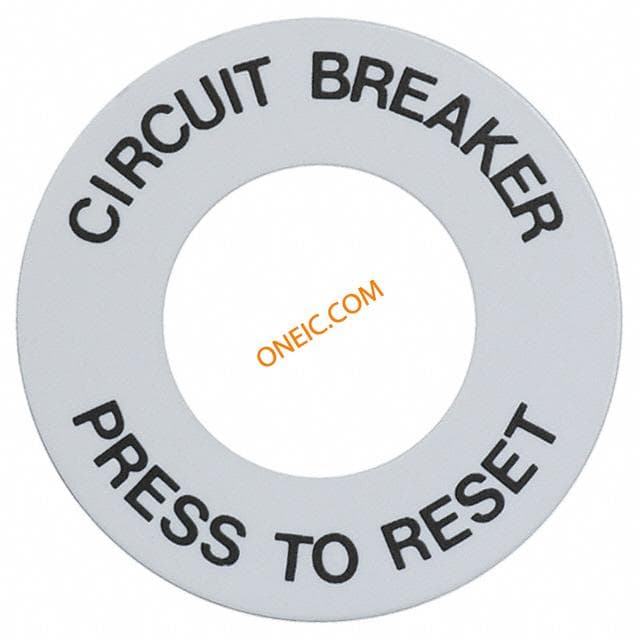

33-012C
