点击放大查看

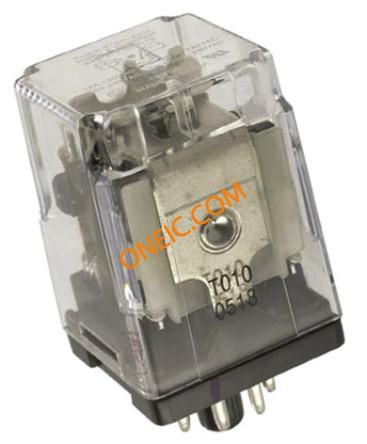

KRPA-11DG-12
| Manufacturer | |
| Description | General Purpose Relays 8 PIN DPDT 12VDC RELAY GEN PURPOSE DPDT 10A 12V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg10A Electromechanical Relay DPDT 10A 12VDC 120Ohm Socket Electromechanical Relay DPDT 10A 12VDC 120Ohm Socket Product Highlights:KRPA SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 12VDC, 10A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg10A;Ctrl-V12DC;Vol-Rtg120/28AC/DC;Plug-In TE Connectivity 双刀双掷 插入式 非闭锁继电器, 12V KRPA-11DG-12=KRPA |
| Category |
Business
| Lead Time | 91 Days | Subcategory | Electromechanical Relay |
| Part # Aliases | 4-1393104-3 | Product Category | General Purpose Relays |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant By Exemption | Standards | UL,CSA,RoHS |
| Tariff No | 85364110 | Part Status | 4-1393104-3 |
Electrical
| Coil Type | Monostable | Coil Power | 1.2 W |
| Range deg/s | :TE - KRPA Series | Coil Current | 100 mA |
| Voltage Rating | 240VAC | Coil Resistance | 120 Ohms |
| Current - Carry | :10A | Current - Output | :10A |
| Voltage - Supply | 12 V | Switching Voltage | 240VAC - Max |
| Current Rating (Max) | 10A | Contact Voltage (Max) | :240V |
| Power - Average Forward | 1.2 W | Vce(on) (Max) @ Vge, Ic | 9 VDC |
| Contact Rating (Current) | 10A | Drive Voltage (Max Rds On, Min Rds On) | 12VDC |
Mechanical
| Depth | 1.469in | Width | 37.3 mm |
| Height | 34.9 mm | Length | 48.8 mm |
| Weight | 0.077 | Packaging | Bulk |
| Termination | Plug-In | Contact Form | 2 Form C (DPDT-BM) |
| Mounting Type | Socketable | Terminal Type | Plug In |
| Mounting Style | Socket | Number of Pins | 8 |
| Contact Material | Silver Cadmium Oxide | Size / Dimension | 1.922in.Lx1.469in.Wx1.375in.H |
| Termination Style | Plug In, 8 Pin (Octal) | Contact Termination | Plug In |
| Contact Layout, Typical | DPDT | ||
Product Info
| Type | Ice Cube Style Relay | Series | KRPA |
| Features | Insulation - Class B | Function | GeneralPurpose |
| Relay Type | General Purpose | Manufacturer | KRPASeries |
| Industry Aliases | 4-1393104-3, KRPA-11DG-12 | Application Specifics | General Purpose |
Environmental
| Operating Temperature | -45°C ~ 70°C | ||
