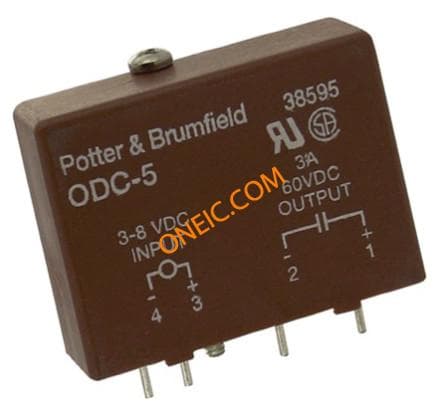

ODC-5
| Manufacturer | |
| Description | Input/Output Modules 4-Pin I/O Modules 5VDC input 3A 3-60VDC out Red OUTPUT MODULE DC STD 18MA 5VDC I/O Module Relays Output Module 8VDC 18mA 4000Vrms Thru-Hole I/O Module Relays Output Module 8VDC 18mA 4000Vrms Thru-Hole Product Highlights:Input/Output ModuleRelay Type = Solid State Input/Output ModuleODC SeriesSwitch Arrangement = 1 Form A (SPST-NO)Current Rating = 3 Amps. I/O MODULE ODC-5=IO MODULES |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 94 Days | Subcategory | I/O Module |
| Part # Aliases | 4-1393028-4 | Product Category | I/O Modules |
| Standard Package | Trays | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85359000 |
Electrical
| Output | DC | Isolation | 4000 V |
| Turn On Time | 0.10ms | Voltage Rating | 5 VDC |
| Current - Output | 3 A | Delay Time - OFF | 0.75ms |
| Analog Input:Output | :1 | Current Rating (Max) | :3A |
| Voltage - Input (Min) | 3 ~ 60VDC | Current - Input Bias (Max) | 18 mA |
Mechanical
| Color | Red | Depth | :15.2mm |
| Width | :43.18mm | Length | :31.8mm |
| Weight | 0.027 | Case Color | Red |
| Termination Style | PC Terminals | Contact Layout, Typical | :SPST-NO |
Product Info
| Type | DC | Style | Standard |
| Series | ODC | Features | Hold Down Screw |
| Product Type | DC Input Modules | Accessory Type | :DC Output Module |
| Industry Aliases | 4-1393028-4, ODC-5 | Leaded Process Compatible | :Yes |
Environmental
| Operating Temperature | -30 to 80 °C | ||
