KUP-11D11-24
| Manufacturer | |
| Description | Electromechanical Relay DPDT 5A 24VDC 472Ohm Socket General Purpose Relays DP PLN QC/SLDR 24VDC RELAY GEN PURPOSE DPDT 5A 24V Electromechanical Relay DPDT 5A 24VDC 472Ohm Socket Product Highlights:KUP SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 5 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 24VDC, 10A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg5A;Ctrl-V24DC;Vol-Rtg120AC;9Pin KUP-11D11-24=KU |
| Category |
Business
| Lead Time | 94 Days | Subcategory | Electromechanical Relay |
| Part # Aliases | 4-1393117-2 | Product Category | General Purpose Relays |
| Standard Package | Bulk | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant By Exemption | Standards | UL,CSA,RoHS |
| Tariff No | 00000000 | Part Status | 4-1393117-2 |
Electrical
| Coil Type | Monostable | Coil Power | 1.25 W |
| Range deg/s | :TE - KUP Series | Coil Current | 51 mA |
| Release Time | 10ms | Voltage Rating | 28 V |
| Coil Resistance | 472 Ohm | Current - Carry | :10A |
| Current - Output | :5A | Voltage - Supply | 24 V |
| Switching Voltage | 240VAC - Max | Current Rating (Max) | 5 A |
| Contact Voltage (Max) | :240V | Voltage - Input (Min) | 240 V |
| Power - Average Forward | 1.2 W | Vce(on) (Max) @ Vge, Ic | 18 VDC |
| Contact Rating (Current) | 5A | Voltage - Supply, Digital | :28V |
| Drive Voltage (Max Rds On, Min Rds On) | 24VDC | ||
Mechanical
| Width | 35.7 mm | Height | 48.4 mm |
| Length | 38.9 mm | Weight | 0 |
| Packaging | Tray | Box | Termination | QuickConnect |
| Contact Form | 2 Form C (DPDT-BM) | Mounting Type | Socket |
| Mounting Style | Panel | Number of Pins | 9 |
| Contact Material | Silver | Size / Dimension | 1.532in.Lx1.406in.Wx1.907in.H |
| Termination Style | Plug In, QC - 0.187" (4.7mm) | Contact Termination | Quick Connect |
| Contact Layout, Typical | DPDT | ||
Product Info
| Type | Industrial Relay | Series | KUP |
| Features | Insulation - Class B | Function | GeneralPurpose |
| Relay Type | General Purpose | Manufacturer | KUPSeries |
| Industry Aliases | 4-1393117-2, KUP-11D11-24 | ||
Environmental
| Operate Time | 15ms | Operating Temperature | -45 to 70 °C |
Documents & Media
Similar Parts
2-1419106-5
te connectivity / p&b
Conn Relay Socket SKT 11 POS Screw ST Panel Mount 27E893 SOCKET RELAY DIN RAIL MNT KU Conn Relay Socket SKT 11 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = ScrewWithout Grounding ProvisionSearch Keywords:relay connectors
2-1437683-2
te connectivity / amp
Individual Socket Interface Module SKT 8 POS ST 8S-SOCKET RELAY SOCKET 22-14AWG 8POS Interface Module SKT 8 POS ST Interface Module SKT 8 POS ST Product Highlights:Interface Module - Terminal BlockModule Type = Individual Socket8 PositionsUsed With 2PDT Relay
27E305
te connectivity / p&b
Conn Relay Socket SKT 11 POS Solder ST Thru-Hole Relay Sockets & Hardware SOCKET NYL FOR KU SER PCB SOCKET NYL FOR KU SER PCB Conn Relay Socket SKT 11 POS Solder ST Thru-Hole Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = PCTerminal Length = 4.67 mm 27E305=SOCKET,KU,11,PC,NYL,N
27E121
TE Connectivity / P&B
Relay Sockets & Hardware SCRW TERM KUP SOCKET RELAY SCREW TERM KU Conn Relay Socket SKT 3 POS Screw ST Panel Mount Conn Relay Socket SKT 3 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = ScrewWithout Grounding Provision RELAY SOCKET Socket,Relay;ScrewTerm;1-3Pole;RoHSCompliant,ELVCompliant 27E121=SOCKET,KUP,11,SCW,PLE
27E067
TE Connectivity / P&B
Relay Sockets & Hardware 11P QC SOCKET SOCKET SP-3P KU SERIES Conn Relay Socket SKT 3 POS Solder ST Panel Mount Conn Relay Socket SKT 3 POS Solder ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = 4.75 [.187] Quick-ConnectWithout Grounding Provision Socket,Relay;QuickConnect;1to3;PotterandBrumfieldBrand 27E067=SOCKET,KU,11,QC.187,NY
27E396
TE Connectivity / P&B
Relay Sockets & Hardware 1-3 POLE QC SOCKET SOCKET RELAY 1-3 POLES QC Socket,Relay,QuickConnect,1to3 Conn Relay Socket SKT 3 POS Screw ST Panel Mount Conn Relay Socket SKT 3 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = 4.75 [.187] Quick-ConnectWithout Grounding Provision RELAY SOCKET Socket,Relay;QuickConnect;1to3;PotterandBrumfieldBrand 27E396=SOCKETS
27E043
te connectivity / p&b
Conn Relay Socket SKT 3 POS Solder ST Panel Mount Relay Sockets & Hardware 11P PCB SOCKET SOCKET SOLDER FOR KU RELAYS Conn Relay Socket SKT 3 POS Solder ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = SolderWithout Grounding Provision RELAY SOCKET Socket,Relay;Solder;1to3;PotterandBrumfieldBrand 27E043=SOCKET,KU,11,SLG,NYL,N
27E046
te connectivity / p&b
Conn Relay Socket SKT 11 POS 11.1mm Solder ST Thru-Hole Relay Sockets & Hardware HARD MOUNT SOCKET PCB SOCKET PCB TERMINAL KU SERIES Conn Relay Socket SKT 11 POS 11.1mm Solder ST Thru-Hole Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = PCTerminal Length = 3.66 mm RELAY SOCKET Socket,Relay;PC;1to3;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E046=SOCKET,KU,11,PC,NYL,NAT
27E867
te connectivity / p&b

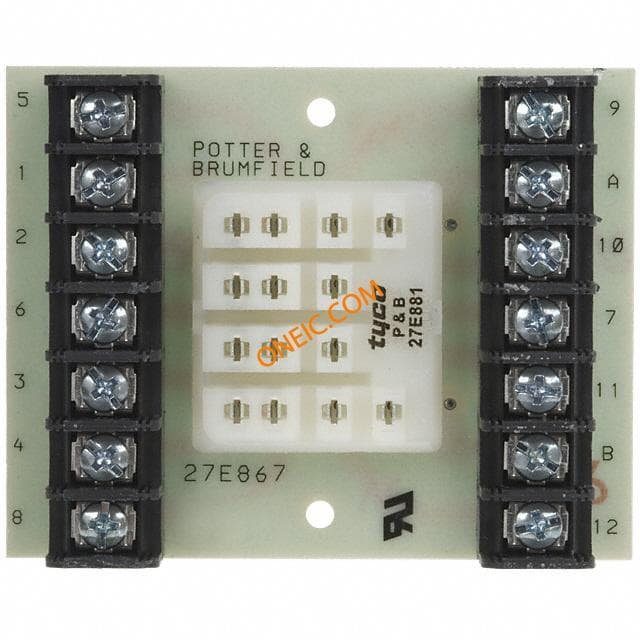

Conn Relay Socket SKT 4 POS Screw ST Panel Mount Relay Sockets & Hardware 4 POLE SCRW TRM SCKT SOCKET TERM 4P FOR KU RELAYS Conn Relay Socket SKT 4 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 4Terminal Type = ScrewWithout Grounding Provision RELAY SOCKET Socket,Relay;Screw;4;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E867=SOCKET,KU,,ASSY,4 POLE,
