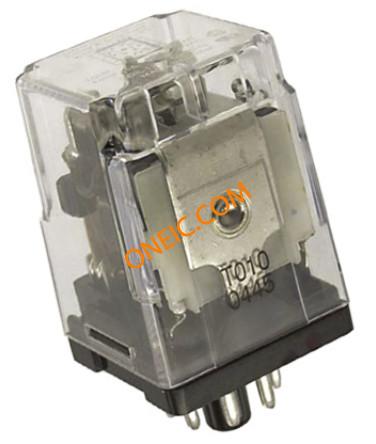

KRPA-11AN-120
| Manufacturer | |
| Description | Electromechanical Relay DPDT 10A 120VAC 2.25KOhm Socket General Purpose Relays 8 PIN DPDT 120VAC RELAY GEN PURPOSE DPDT 10A 120V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg10A Relay;E-Mech;Gen Purp;DPDT;Cur-Rtg 10A;Ctrl-V 120AC;Vol-Rtg 120/28AC/DC;Plug-In Electromechanical Relay DPDT 10A 120VAC 2.25KOhm Socket Product Highlights:KRPA SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemInput Voltage = 120 VAC POWER RELAY, DPDT, 120VAC, 10A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg10A;Ctrl-V120AC;Vol-Rtg120/28AC/DC;Plug-In KRPA-11AN-120=KRPA |
| Category |
Business
| Lead Time | 158 Days | Subcategory | Electromechanical Relay |
| Part # Aliases | 3-1393104-2 | Product Category | General Purpose Relays |
| Standard Package | Trays | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant By Exemption | Standards | UL,CSA,RoHS |
| Tariff No | 85364110 | Part Status | 3-1393104-2 |
Electrical
| Coil Type | Monostable | Coil Power | 2.1 VA |
| Range deg/s | :TE - KRPA Series | Coil Current | 17.5 mA |
| Voltage Rating | 240VAC | Coil Resistance | 2.25 KOhm |
| Current - Output | :10A | Voltage - Supply | 120 V |
| Switching Voltage | 240VAC - Max | Current Rating (Max) | 10 A |
| Contact Voltage (Max) | :240V | Voltage - Input (Min) | 240 V |
| Power - Average Forward | 2 VA | Vce(on) (Max) @ Vge, Ic | 102 VAC |
| Contact Rating (Current) | 10A | Drive Voltage (Max Rds On, Min Rds On) | 120VAC |
Mechanical
| Depth | 1.469in | Width | 37.3 mm |
| Height | 34.9 mm | Length | 48.8 mm |
| Weight | 0.073 | Packaging | Bulk |
| Termination | Plug-In | Contact Form | 2 Form C (DPDT-BM) |
| Mounting Type | Socket | Terminal Type | Plug In |
| Mounting Style | Socket | Number of Pins | 8 |
| Contact Material | Silver Cadmium Oxide | Size / Dimension | 1.922in.Lx1.469in.Wx1.375in.H |
| Termination Style | Plug In, 8 Pin (Octal) | Contact Termination | Plug In |
| Contact Layout, Typical | DPDT | ||
Product Info
| Type | General Purpose Relay | Series | KRPA |
| Features | Insulation - Class B, Incandescent Indicator | Function | GeneralPurpose |
| Relay Type | General Purpose | Manufacturer | KRPASeries |
| Industry Aliases | 3-1393104-2, KRPA-11AN-120 | Application Specifics | General Purpose |
Environmental
| Operating Temperature | -45 to 55 °C | ||
