6-1393090-8
| Manufacturer | |
| Description | Electromechanical Relay DPDT 20A 230VAC 8.3KOhm Socket RELAY GEN PURPOSE DPDT 10A 230V Electromechanical Relay DPDT 20A 230VAC 8.3KOhm Socket Product Highlights:MT SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemInput Voltage = 230 VAC Relay: electromagnetic; DPDT; Ucoil:230VAC; 10A/250VAC; 10A/30VDC Industrial relay 230 VAC 8300 Ohm 2.3 VA, 6-1393090-8, TE Connectivity |
| Category |
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| Coil Type | Non Latching | Coil Power | 2.3 VA |
| Inductance | 8300 | Coil Current | 10.1mA |
| Release Time | 10ms | Power - Rated | 2.5KVA |
| Visible Output | No | Voltage - Test | 2.5 |
| Coil Resistance | 8.3 kOhms | Voltage - Supply | 230VAC |
| Switching Voltage | 400VAC - Max | AC Voltage - Input | 230V |
| Switching Capacity | 2500 VA | Vgs(th) (Max) @ Id | 92 VAC |
| Voltage - Rated AC | 400V | Current - Switching | 10 A |
| Diode Configuration | No | Current - Max/Contact | 10A |
| Vce(on) (Max) @ Vge, Ic | 184 VAC | Contact Rating (Current) | 10A |
| High Side Voltage - Max (Bootstrap) | 184VAC | Voltage - Protection Level (VP) (2416) | IP 40 |
| AC contacts rating (at resistance load) | 10 A / 250 VAC | DC contacts rating (at resistance load) | 10 A / 30 VDC |
Mechanical
| Seal | Unsealed | Size | 35.5 x 35.5 x 57 mm |
| Depth | 35.5 mm | Height | 57 mm |
| Weight | 0.08 kg | Packaging | Bulk |
| Lead Style | stud terminals | Size - Body | 35.5 x 35.5 x 57mm |
| Contact Form | DPDT (2 Form C) | Mounting Type | Socketable |
| Mounting Style | Socket | Package / Case | Dust Cover |
| Contact Material | Silver Nickel (AgNi) | Length - Overall | 35.5 mm |
| Package Quantity | 25 | Size / Dimension | see |
| Termination Style | Plug In, 8 Pin (Octal) | Number of Contacts | 2 change-over (CO) |
| Number of Positions | 8 | Contact Layout, Typical | DPDT |
Product Info
| Spg | 25 | Design | test key |
| Series | MT | Features | Test Button |
| Relay Type | General Purpose | Manufacturer | MT226230 |
| Push-to-Test | Yes | Relay Variant | industrial |
| Electrical Life | round socket | Number of Units | 1 |
| Output Configuration | see | Contacts Configuration | DPDT |
Environmental
| Operate Time | 15ms | Mechanical Life | 200000000cycles |
| Ingress Protection | IP50 | Operating Temperature | -40°C ~ 50°C |
Similar Parts
2-1437683-1
te connectivity / buchanan-rdi
Individual Socket Interface Module SKT 8 POS Custom Terminal Blocks SOCKET RELAY PCB 8POS Interface Modules 8R-SOCKET=8R SOCKET 8 PIN OCTAL SCKT Individual Socket Interface Module SKT 8 POS Product Highlights:Interface Module - Terminal BlockModule Type = Individual Socket8 PositionsUsed With 8 Pin Octal RelaySearch Keywords:DIN rail, ready-to-wire, field wiring, panel mount,
2-1437683-8
TE Connectivity / AMP
Terminal Block Tools & Accessories SM8=SM8 ASSEMBLY OCTAL SCKT 8 POS Custom Terminal Blocks TERM BLOCK 8POS 22-12AWG 6-32 Octal Socket Interface Module SKT 8 POS ST Octal Socket Interface Module SKT 8 POS ST Product Highlights:Interface ModuleModule Type = Octal SocketNumber of Positions = 8SNAPTRACK Channel Series 2TK2Search Keywords:DIN rail, ready-to-wire, field wiring, panel mount, 8 Position AWG 22 - 12 Din Rail Octal Socket Assembly Surface Mount
MT78745
TE Connectivity / Schrack
Relay Sockets & Hardware DIN-rail SCKT w/SCRW SOCKET DINRAIL DP FOR MT RELAYS Relay Socket For Use With MT Series Conn Relay Socket SKT 2 POS Screw ST Conn Relay Socket SKT 2 POS Screw ST Product Highlights:SocketMT SeriesNumber of Poles = 2Terminal Type = ScrewWithout Grounding Provision SOCKET, DIN, MULTIMODE, 8 PIN Socket,Relay;DIN-RAIL,8PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES MT78745

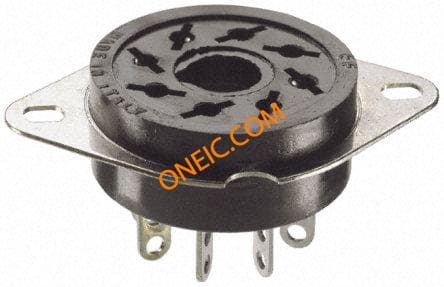

MT78612
