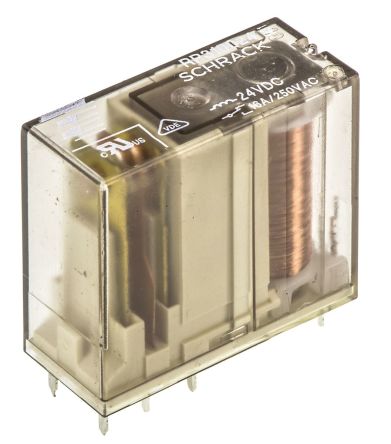

3-1393230-2
| Manufacturer | |
| Description | Electromechanical Relay SPDT 25A 24VDC 1.1KOhm Through Hole Reinforced PCB Relays up to 16A PCB RELAY 24V, RP310024 Electromechanical Relay SPDT 25A 24VDC 1.1KOhm Through Hole Product Highlights:RPII/1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 16 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode Relay: electromagnetic; SPDT; Ucoil:24VDC; 16A/250VAC; 16A/24VDC PCB power relay 24 VDC 500 mW, 3-1393230-2, TE Connectivity TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Compliant | Rad Hardened | No |
Electrical
| Coil Power | 500mW | Inductance | 1100 |
| Coil Current | 21.8 mA | Coil Voltage | 24V |
| Release Time | 2ms | Power - Rated | 4KVA |
| Isolation Type | 4000V rms | Visible Output | No |
| Voltage - Test | 4 | Coil Resistance | 1100 Ω |
| Voltage - Supply | 24V dc | Switching Voltage | 400V ac |
| Power - Peak Pulse | 4 kVA | Switching Capacity | 4kVA |
| Voltage - Rated AC | 440V | Current - Switching | 16 A |
| Diode Configuration | No | Power - Output Surge | 4000 VA |
| Current - Max/Contact | 16A | Voltage - Input (Min) | 2.4VDC |
| Voltage - Switching AC | 400V 交流 | Contact Rating (Current) | 25 A |
| Current - Peak Pulse (8/20us) | 16 A | High Side Voltage - Max (Bootstrap) | 16.8VDC |
| Voltage - Protection Level (VP) (2416) | IP 42 | AC contacts rating (at resistance load) | 16 A / 250 VAC |
| DC contacts rating (at resistance load) | 16 A / 24 VDC | ||
Mechanical
| Seal | Flux | Size | 29 x 12.6 x 25.5 mm |
| Depth | 12.6mm | Pitch | 5 |
| Height | 25.5mm | Length | 29mm |
| Weight | 0.02 kg | Packaging | Tube |
| Size - Body | 29 x 12.6 x 25.5mm | Contact Form | 1 Form C |
| Pitch - Post | 5mm | Mounting Type | PCB |
| Terminal Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | Dust Cover | Contact Material | Silver Cadmium Oxide |
| Length - Overall | 29 mm | Package Quantity | 100 |
| Size / Dimension | see | Termination Style | PC Pin |
| Number of Contacts | 1 change-over (CO) | Insulation Material | 4kV rms |
| Number of Positions | 8 | Contact Layout, Typical | SPDT |
Product Info
| Spg | 100 | Type | Power Relay |
| Features | 耐助焊剂 | Function | Y |
| Relay Type | Non-Latching | Application | 电源 |
| Manufacturer | RP310024 | Push-to-Test | No |
| Relay Variant | miniature | Number of Units | 1 |
| Output Configuration | see | Application Specifics | Power |
| Contacts Configuration | SPDT | ||
Environmental
| Operate Time | 8 ms | Mechanical Life | 30000000cycles |
| Ingress Protection | IP40 | Operating Temperature | +70°C |
| Maximum Temperature Limit | +70°C | ||
