1-1393812-6
| Manufacturer | |
| Description | Electromechanical Relay DPDT 2A 48VDC 1.9KOhm Socket Low Signal Relays - PCB V23054C 22C104 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPDT 2A 45V V23054C 22C104 |
| Category |
Business
| Other Names | V23054C22C104 | Product Category | Low Signal Relays - PCB |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Coil Type | Non Latching | Coil Power | 1.07 W |
| Coil Current | 25.26 mA | Release Time | 2ms |
| Power - Input | 1000 – 2000 | Power - Output | 1 – 1.5 W |
| Voltage Rating | 125 | Coil Resistance | 1.9 KOhm |
| Current - Surge | 2 | Voltage - Supply | 48 V |
| Switching Voltage | 125VAC, 150VDC - Max | Current - Trip (It) | 2 |
| Voltage - Breakdown | 0 – 500 V | Current Rating (Max) | 2 A |
| Frequency - Output 1 | 单稳态，直流 | Insulation Resistance | 500 |
| Power - Average Forward | 1200 mW | Vce(on) (Max) @ Vge, Ic | 24 VDC |
| Contact Rating (Current) | 2 A | Current - Discharge (Max) (8/20uS) | 2 |
| Voltage - Anode - Cathode (Vak)(Max) | 125 | ||
Mechanical
| Width | 19 mm [ .748 in ] | Height | 30 mm [ 1.181 in ] |
| Length | 24 mm [ .945 in ] | Weight | 20 g [ 0.704 oz ] |
| Packaging | Bulk | Contact Form | 2 Form C (DPDT-BM) |
| Actuator Type | 直流 | Mounting Type | Socket |
| Depth - Overall | 25 – 30 mm | Width - Overall | 16 – 20 mm |
| Contact Material | Silver/Gold | Length - Overall | 20 – 25 mm |
| Termination Style | Solder Terminal | Number of Contacts | 2 |
| Contact Layout, Typical | DPDT | ||
Product Info
| Type | Signal Relay | Series | V23054/Cradle Relay S |
| Relay Type | General Purpose | Product Type | 继电器 |
Environmental
| Operate Time | 16ms | Ingress Protection | RTI |
| Operating Temperature | -40°C ~ 70°C | Initial Dielectric Strength | 500 |
Documents & Media
Similar Parts

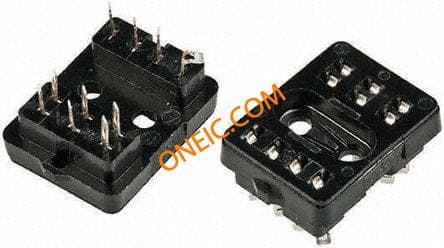

V23154Z1005
