M24308/4-269Z
| Manufacturer | |
| Description | CONN D-SUB PLUG HD 104P SER 90 |
| Category |
Business
| Standard Package | 25 | ||
Mechanical
| Packaging | Bulk | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug for Male Contacts |
| Flange Feature | Housing/Shell (Unthreaded) | Number of Rows | 5 |
| Connector Style | D-Sub, High Density | Number of Positions | 104 |
| Shell Finish Thickness | 200µin (5.08µm) | Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Shell Size, Connector Layout | 6 | ||
Product Info
| Note | Contacts Not Provided | ||
Similar Parts
1218699-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts AMPLIMITE #22 PIN CONTACT Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PIN 22-28AWG CRIMP AU Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ContactProduct Series = 90Terminate To WirePinContact Size = 22Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE #22 PIN CONTACT
207683-2
te connectivity / amp
Contact PIN Solder ST Cable Mount Loose Piece D-Sub Contacts PIN CONTACT 22 AMPLIMITE - Aerospace & Military CONN PIN D-SUB CONTACT SIZE 22 Contact PIN Solder ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 90Terminate To Printed Circuit BoardPinTermination (Solder) Post Length = 6.99 mmSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,PIN CONT,SZ 22
204370-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Tape D-Sub Contacts PIN CONT,SZ 22D,AMPL AMPLIMITE - Aerospace & Military CONN D-SUB PIN 28-22AWG CRIMP AU PIN CONT,SZ 22D,AMPLIMITE
1218747-6
te connectivity / amp
Conn Housing RCP 104 POS Crimp ST Panel Mount D-Sub High Density Connectors AMPLIMITE SZ 6 RECP. 104 POS CONN RCPT D-SUB 104POS SERIES 90
207683-8
te connectivity / amp
Contact PIN Solder ST Cable Mount Loose Piece D-Sub Contacts AMPLI PIN CONT SZ 22 AMPLIMITE - Aerospace & Military CONN PIN D-SUB CONTACT SIZE 22 Conn Contact PIN 1 POS Solder ST Cable Mount 1 Terminal 1 Port Loose Piece Contact PIN Solder ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 90Terminate To Printed Circuit BoardPinTermination (Solder) Post Length = 6.99 mmSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,PIN CONT,SZ 22D
204370-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts D-SUB PIN 22-28AWG AMPLIMITE - Aerospace & Military CONN PIN 22-28AWG CRIMP GOLD Contact male crimp 28-22AWG Amplimite Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 90Terminate To WirePinContact Size = 22Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONTACT, PIN, CRIMP, 28-22 AWG, Contact;Pin Subminiature D Pins/Sockets for MIL-C-24308 and MIL-C-39029; Contact Product Series: 90 Contact Type: Pin Applies To Wire/Cable Contact Size: 22 TE Connectivity AMPLIMITE 90 Series系列 尺寸22触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 22 AWG PIN CONTACT,Sz22D,22-28 AWG

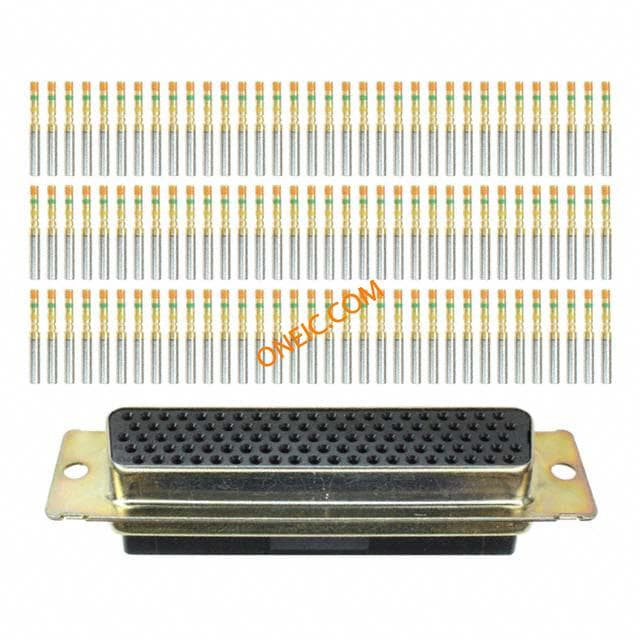

M24308/2-16
