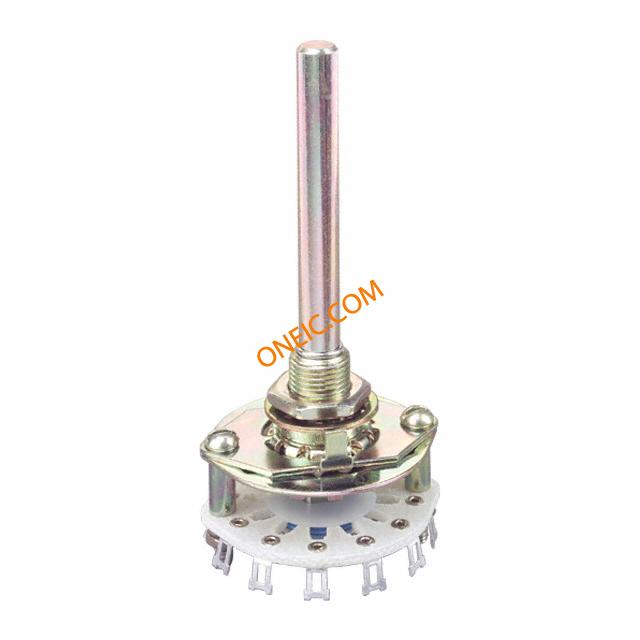

D4G0111N
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 35 Days | Other Names | 451-1096 |
| Subcategory | Switch Rotary | Product Category | Rotary Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365005 |
Electrical
| Voltage - Core | :115V | Voltage Rating | 115 V |
| Number of Poles | :1 | Dielectric Strength | 1500VAC |
| Current Rating (Max) | 1.5 A, 0.5 A | Current - Max/Contact | :500mA |
| Contact Rating @ Voltage | 1.5A @ 28VDC | Voltage - Supply (Vcc/Vdd) | :28V |
Mechanical
| Weight | 0.054 | Orientation | Vertical |
| Termination | SolderLugs | Contact Type | Non Shorting |

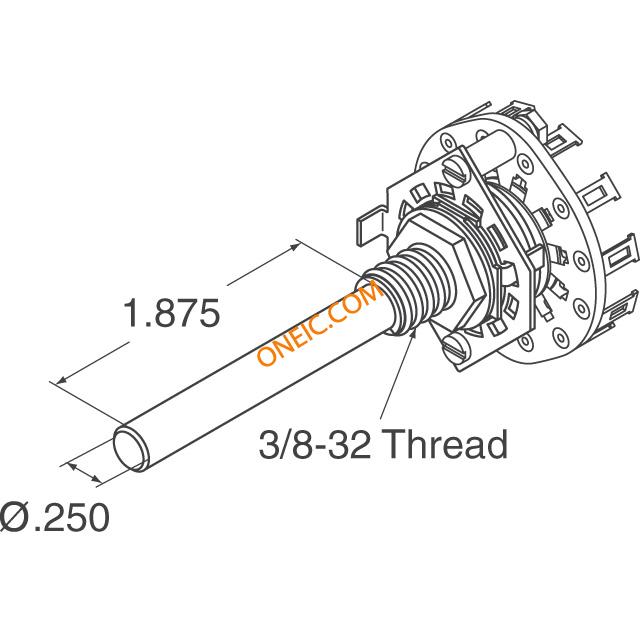

| Actuator Type | Round (6.35mm dia) | Contact Shape | 30 deg |
| Mounting Type | Panel Mount | Angle of Throw | 30° |
| Contact Finish | Silver | Mounting Style | Panel |
| Rotation Angle | :30° | Termination Style | Solder Lug |
| Number of Positions | 2 ~ 11 | Material - Insulation | GlassEpoxy |
| Mounting Hole Diameter | 3/8In. | Number of Poles per Deck | 1 |
Product Info
| Type | Rotary | Index Stops | Adjustable |
| Manufacturer | D4Series | Number of Decks | 1 |
| Circuit per Deck | SP11T | ||
Sourcing & traceability
- Datasheet
- d4.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
